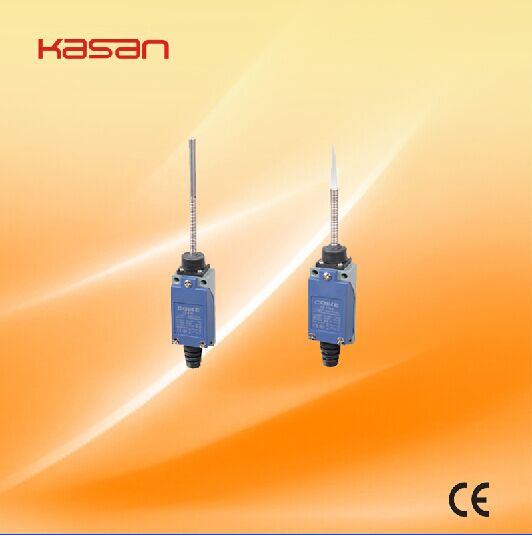

Tz-8 8166 Series Limiting Switch

Name: Tz-8 8166 Series Limiting Switch
Brand: all-electronics-online.com
SKU: 697914552
Availability: InStock
Rating: 4.4 (57 reviews)

Price:	US $ 0.0001-100/Piece
Trade Terms:	FOB
Min Order:	10/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	TZ-8166
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Protection Level:	IP65
Model No.:	Tz8104
Max Voltage:	250V

Product Description

Micro Electrical Limit Switch TZ8104

What is its feature?

Micro Electrical Limit Switch TZ-8104

1. With double circuit
2.Highly rigid construction,consist of intensive plastic and aluminium cast(Head and cover snugly fit in the box)

3.Small size,water-proof and oil-proof construction

4. Built-in basic switch with double spring mechanism,longer mechanical life

5. Smooth operation with greater OT

6.Easy-to-wire circuit opening design wide varity of actuators,easily use

Characteristics:

Operation speed	0.5mm-50cm/sec
Operating frequency	Mechanical: 120 operations/minute, Electrical: 30 operations/minute
Contact resistance	25mΩ max. (initial value)
Insulation resistance	100mΩ min. (at 500VDC)
Dielectric strength	1000VAC, 50/60HZ for 1 minute between terminals of the same polarity
	1500VAC, 50/60 HZ for 1 minute between currentcarrying and non-current-carrying metal parts
	1500VAC, 50/60 HZ for 1 minute between each terminal and ground
Vibration	10-55HZ,1.5mm double amplitude
Shock	Mechanical durable: 1, 000m/Sec2 (about 100GS) Malfunction: 300m/Sec2 (about 30GS)
Ambient temperature	-5°C to +65°C
Humidity	<95% RH
Life	Mechanical: 10,000,000 operations above Electrical: 500,000 operations above
Weight	About 130 to 190g
Degree of protection	IP65

Operating characteristics:

Models	TZ-8104	TZ-8108	TZ-8107	TZ-8111	TZ-8112/8122	TZ-8166/8167/8168/8169
OF Max.	750g	750g	750g	900g	900g	150g
RF Min.	100g	100g	100g	150g	150g	-
PT Max.	20º	20 º	20 º	1.5mm	1.5mm	30mm
OT Min.	50 º	50 º	50 º	4mm	4mm	-
MD Max.	12 º	12 º	12 º	1mm	1mm	-
OP	-	-	-	26 ± 0.8mm	37 ± 0.8mm	-
