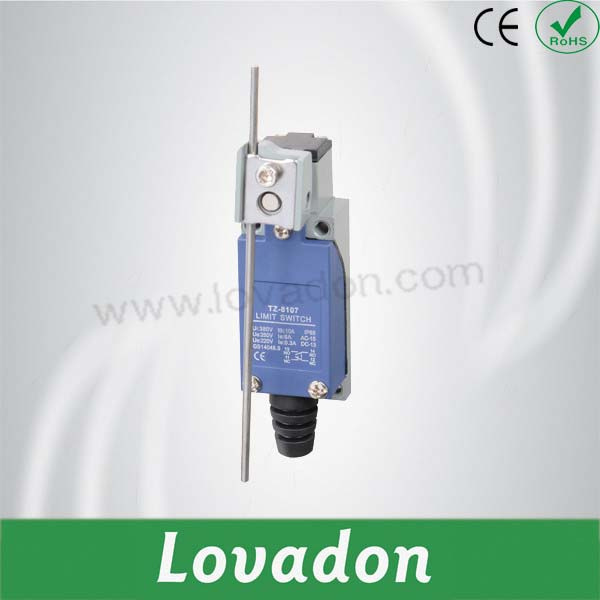

Tz-8107 Double Circuit Type Limit Switch

Name: Tz-8107 Double Circuit Type Limit Switch
Brand: all-electronics-online.com
SKU: 752704625
Availability: InStock
Rating: 4.4 (143 reviews)

Price:	US $ 0.6-0.8/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	TZ-8107
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Degree Of Protection:	IP65
Weight:	About 22g to 58g
Terminal Type:	Screw,Tab,Solder
Max Voltage:	250V
Pressing Type:	Spring Roller
Protection:	Waterproof
Size:	Small-Sized
Environment:	﹤250℃
Breaking Capacity:	General Type
Breaking Form:	Duplex Type
Application:	Widely Used

Product Description

TZ-8 Series Limit Switch

* Double circuit type circuit type of limit switch.
* Highly rigid construction, consists of intensive plastic and aluminum cast (Head and cover snugly fit in box).
* Small volume, water-proof and oil-proof construction.
* Built-in basic switch with double spring mechanism, longer mechanical life.
* Smooth operation with greater OT.
* Easy - to - wire circuit opening design.
* Wide varity of actuators, easily use.

Model	TZ-8104	TZ-8108	TZ-8107	TZ-8111	TZ-8112 / TZ-8122	TZ-8166/ TZ-8167/ TZ-8168/TZ-8169
Triggering	30 convex trigger	30 convex trigger	Any moving part	At the end	30 convex trigger	Any moving part
Contact operation	(Black squares)Contacts attract (White squares) Contracts separate
Max triggering speed	1.3m/s			0.25m/s		1.3m/s
Max restoring force	750g	750g	750g	900g	900g	150g
Mini restoring force	100g	100g	100g	150g	150g
Weight(KG)	0.19kg	0.21kg	0.2kg	0.155kg	0.16kg	0.15kg
Wiring	Flexible rebber cable sleeve is suitable for cables of 6...9mm(Diameter),each terminal can hold conductors of two mm2 at most

Characteristics Of Contact Module
Rated operating characteristics	Inductive load:~AC15,B300(Ue=240V,le=1.5A)--DC-13,R300(Ue=250V,le=0.1A). Resistive load:250,5A
Rated insulation voltage	Ui=500V,class of pollution is 3,comply with IEC 60947-1 Ui=300V,comply with Ul508,CSA C22-2n 14
Insulation resistance	>100MΩ,at 500V
Operating frequency	120 times/min
Electrical life	One million times,AC-15(Ue=240V, le=1.5A)
Contact resistance	Not more than 25MΩ,5V,5mA,after ten million times of operation

Environmental Characteristics
Normativerence	product	IEC60947-5-1,EN60947-5-1,UL508,CSAC22-2N 14
Normativerence	Components	IEC60204-1,EN60204-1
Ambient temperature	Run	-25...+70C
Ambient temperature	Storage	-40...+70C
Vibration resistance	Comply with IEC60068-2-6	55Hz,1.5mm double-amplitude
Shock resistance	Comply with IEC60068-2-27	30gn 18ms,in any position
Degree of protection		IP65,comply with IEC60529
Mechanical life		15,000,000 times
