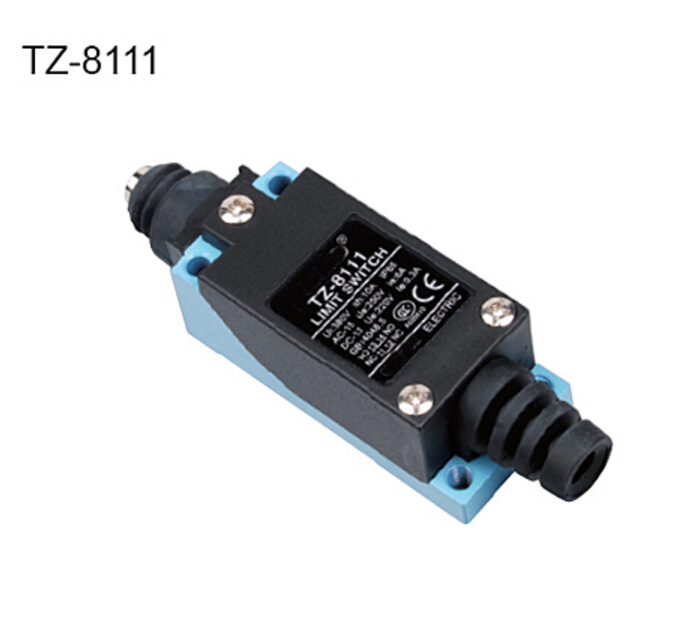

Tz-8111 Limit Switch

Name: Tz-8111 Limit Switch
Brand: all-electronics-online.com
SKU: 798775735
Availability: InStock
Rating: 4.8 (127 reviews)

Price:	US $ 0.34/Piece
Min Order:	20/Piece
Pay Type:	T/T,D/P,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	TZ-8111
Micro Switch Dielectric Strength:	1,000 VAC 50/60Hz for 1 Minute
Micro Switch Life:	Mechanical: 10,000,000 Operations Min. Electrical
Micro Switch Terminal:	Quick Connect Termination
Weight:	About 22g to 58g
Degree Of Protection:	IP65
Terminal Type:	Screw,Tab,Solder
Size:	Normal Size
Pressing Type:	Quick Connect Termination
Brand:	Langir

Product Description

Features
-Double circuit type of limit switch
-Highly rigid construction, consists of intensive plastic and aluminum cast (Head and -cover snugly fit in box)
-Small volume, water-proof and oil-proof construction
-Built-in basic switch with double spring mechanism, longer mechanical life
-Smooth operation with greater OT
-Easy-to-wire circuit opening design
-Wide varity of actuators, easily use

Ratings

Rated Voltage	Noninductive Load (A)				Inductive Load (A)
	Resistance Load		Lamp Load		Inductive Load		Motor Load
	NC	NO	NC	NO	NC	NO	NC	NO
125VAC 250VAC 500VAC	5 5	5 5	1.5 1	0.7 0.5	3 3	3 3	2 1.5	1 0.8
8VDC 14VDC 30VDC 125VDC 250VDC	5 5 5 0.4 0.2	5 5 5 0.4 0.2	3 3 3	3 3 3	5 4 4	4 4 4	3 3 3	3 3 3
Inrush Current	N.C: below 24A, N.O: below 12A

Notes:

1.Inductive load has a power factor of 0.4 min.(AC) and a time constant of 7 msec.max.(DC).
2.Lamp load has an inrush current of 10 times the steady-state current,while motor load has an inrush current of 6 times the steady-state current.

Characteristics

Operation speed	0.5mm-50cm/sec
Operating frequency	Mechanical: 120 operations/minute, Electrical: 30 operations/minute
Contact resistance	25mΩ max. (initial value)
Insulation resistance	100mΩ min. (at 500VDC)
Dielectric strength	1000VAC, 50/60HZ for 1 minute between terminals of the same polarity
	1500VAC, 50/60 HZ for 1 minute between currentcarrying and non-current-carrying metal parts
	1500VAC, 50/60 HZ for 1 minute between each terminal and ground
Vibration	10-55HZ,1.5mm double amplitude
Shock	Mechanical durable: 1, 000m/Sec2 (about 100G'S) Malfunction: 300m/Sec2 (about 30G'S)
Ambient temperature	-5ºC to +65ºC
Humidity	<95% RH
Life	Mechanical: 10,000,000 operations above Electrical: 500,000 operations above
Weight	About 130 to 190g
Degree of protection	IP65

Operating characteristics

Models	TZ-8104	TZ-8108	TZ-8107	TZ-8111	TZ-8112/8122	TZ-8166/8167/8168/8169
OF Max.	750g	750g	750g	900g	900g	150g
RF Min.	100g	100g	100g	150g	150g	-
PT Max.	20º	20 º	20 º	1.5mm	1.5mm	30mm
OT Min.	50 º	50 º	50 º	4mm	4mm	-
MD Max.	12 º	12 º	12 º	1mm	1mm	-
OP	-	-	-	26 ± 0.8mm	37 ± 0.8mm	-
