Prod Model: |
TZ |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe |
Max. Current: |
5A |
Max. Voltage: |
250V |
Operating Temperature: |
-5~+65 |
Protection Level: |
IP65 |
Pressing Type: |
Push-Button |
Size: |
Small-Sized |
Brand: |
Winston |
Product Description

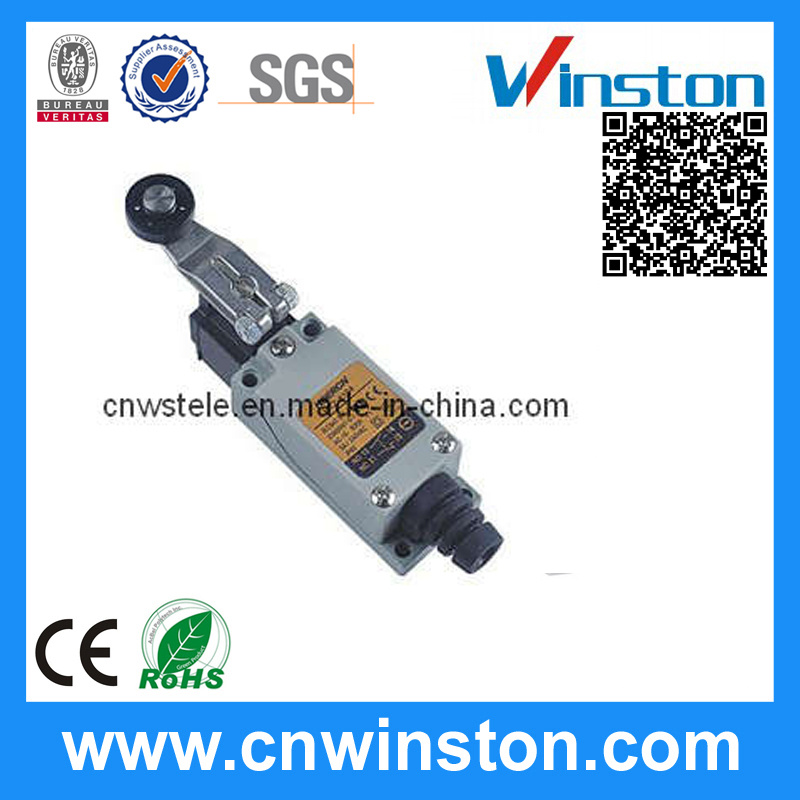

TZ Series Limit Switch
1. Small volume, water-proof and oil-proof construction
2. Built-in basic switch with double spring mechanism, longer mechanical life
3. Smooth operation with greater OT
4. Easy-to-wire circuit opening design
5. Wide varity of actuators, easily use
6. Models: TZ-8104, TZ-8107, TZ-8108, TZ-8111, TZ-8112/8122 TZ-8166/8167/8168/8169
7. We can supply all series limit switch, for more details, please contact us.
Rated Voltage | Noninductive Load (A) | Inductive Load (A) |
Resistance Load | Lamp Load | Inductive Load | Motor Load |
NC | NO | NC | NO | NC | NO | NC | NO |
125VAC 250VAC 500VAC | 5 5 | 5 5 | 1.5 1 | 0.7 0.5 | 3 3 | 3 3 | 2 1.5 | 1 0.8 |
8VDC 14VDC 30VDC 125VDC 250VDC | 5 5 5 0.4 0.2 | 5 5 5 0.4 0.2 | 3 3 3 | 3 3 3 | 5 4 4 | 4 4 4 | 3 3 3 | 3 3 3 |
Inrush Current | N. C: below 24A, N. O: below 12A |
Characteristics:
Operation speed | 0.5mm-50cm/sec |
Operating frequency | Mechanical: 120 operations/minute, Electrical: 30 operations/minute |
Contact resistance | 25mΩ max. (initial value) |
Insulation resistance | 100mΩ min. (at 500VDC) |
Dielectric strength | 1000VAC, 50/60HZ for 1 minute between terminals of the same polarity |
1500VAC, 50/60 HZ for 1 minute between currentcarrying and non-current-carrying metal parts |
1500VAC, 50/60 HZ for 1 minute between each terminal and ground |
Vibration | 10-55HZ,1.5mm double amplitude |
Shock | Mechanical durable: 1, 000m/Sec2 (about 100G'S) Malfunction: 300m/Sec2 (about 30G'S) |
Ambient temperature | -5 to +65 |
Humidity | <95% RH |
Life | Mechanical: 10,000,000 operations above Electrical: 500,000 operations above |
Weight | About 130 to 190g |
Degree of protection | IP65 |
Operating characteristics:
Models | TZ-8104 | TZ-8108 | TZ-8107 | TZ-8111 | TZ-8112/8122 | TZ-8166/8167/8168/8169 |
OF Max. | 750g | 750g | 750g | 900g | 900g | 150g |
RF Min. | 100g | 100g | 100g | 150g | 150g | - |
PT Max. | 20º | 20 º | 20 º | 1.5mm | 1.5mm | 30mm |
OT Min. | 50 º | 50 º | 50 º | 4mm | 4mm | - |
MD Max. | 12 º | 12 º | 12 º | 1mm | 1mm | - |
OP | - | - | - | 26 ± 0.8mm | 37 ± 0.8mm | - |
