| Prod Model: |
TZ3104 |
| Pressing Type: |
Lever Roller |
| Protection: |
Waterproof |
| Size: |
Normal Size |
| Environment: |
﹤250℃ |
| Breaking Capacity: |
High-Current |
| Breaking Form: |
Single Type |
| Application: |
Electronic Equipment |
| Brand: |
Chnanma |
Product Description

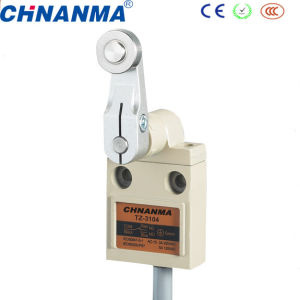

TZ-3 Series Waterproof Limit Switch
* Double-loop type Limit switch for multiple applications.
* Rugged aluminum alloy diecast housing.
* Hight mechanical strength
* Oil resistance,Waterproof and dustproof structure
Models | TZ-3101 | TZ-3102 | TZ-3103 | TZ-3104
TZ-3108 | TZ-3110 | TZ-3111 | TZ-3112 | TZ-3113 | TZ-3169
TZ-3166
TZ-3167 |
| OF Max. | 1200gf(11.77N) | 580gf (5.69N) | 1200gf (11.77N) | 1800gf (17.65N) | 1800gf (17.65N) | 1800gf (17.65N) | 150gf (1.47N) |
| Rf Min. | 450gf(4.41N) | 150gf (1.47N) | 450gf (4.41N) | 450gf (4.41N) | 450gf (4.41N) | 450gf (4.41N) | - |
| PT Max. | 1.8mm | 25 | 1.8mm | 1.8mm | 1.8mm | 1.8mm | 15° |
| OT Min. | 3mm | 40 | 3mm | 3mm | 3mm | 3mm | - |
| MD Max. | 0.2mm | 3 | 0.2mm | 0.2mm | 0.2mm | 0.2mm | - |
| OP | 15.7+-1mm | 28.5+-1mm | 28.5+-1mm | - | 28.5+-1mm | 24.9+-1mm | 34.3+-1mm | 34.3+-1mm | - |
Ratings
Rated voltage | Non-inductive load | Inductive load |
| Resistance Load | Lamp load | Inductive Load | Motor Load |
| NC | NO | NC | NO | NC | NO | NC | NO |
| 125 VAC | 5(0.1) | 1.5 | 0.7 | 3 | 2.5 | 1.3 |
| 250 VAC | 3 | 1 | 0.5 | 2 | 1.5 | 0.8 |
| 8 VDC | 5(0.1) | 2 | 5 | 4 | 3 |
| 14 VDC | 5(0.1) | 2 | 4 | 4 | 3 |
| 30 VDC | 4(0.1) | 2 | 3 | 3 | 3 |
| 125 VDC | 0.4 | 0.05 | 0.4 | 0.4 | 0.05 |
| 250 VDC | 0.2 | 0.03 | 0.2 | 0.2 | 0.03 |
| Note: Product with spring,its usable range of operating part is within one third of the whole spring length from the front end of spring. |
Characteristics
Rating | 5A 125V,3A 250VAC |
| Operating speed | 1mm~1m/s |
| Operating frequency | Mechanical:120 operations/min.Electrical:30 operations/min. |
| Contact resistance | 15mΩ Max.(initial) |
| Inslation resistance | 100mΩ min. (at 500VDC) |
| Dielectric strength | 1000VAC,50/60 Hz for 1 minute between terminals of the same polarity. |
| 1500VAC,50/60 Hz for minute between current-carrying and non-current-carrying metal parts. |
| 1500VAC,50/60 Hz for 1 minute between each terminal and ground. |
| Vibration Frequency | 10 to 55Hz,1.5mm double amplitude. |
| Shock | Mechanical:Approx.1000m/S^2 (Approx.100G'S)
Electrical:Approx.500m/S^2 (Approx.50G'S) |
| Ambienttemperature | -10ºC~+70ºC(with no icing) |
| Humidity | <95% RH |
| Life | Mechanical:10,000,000 operations/min.
Electrical:200,000 operations/min. |
| Weight | Approx.360g(cable length 3m)
Approx.540g (cable length 5m) |
| Degree of protection | IP67 |

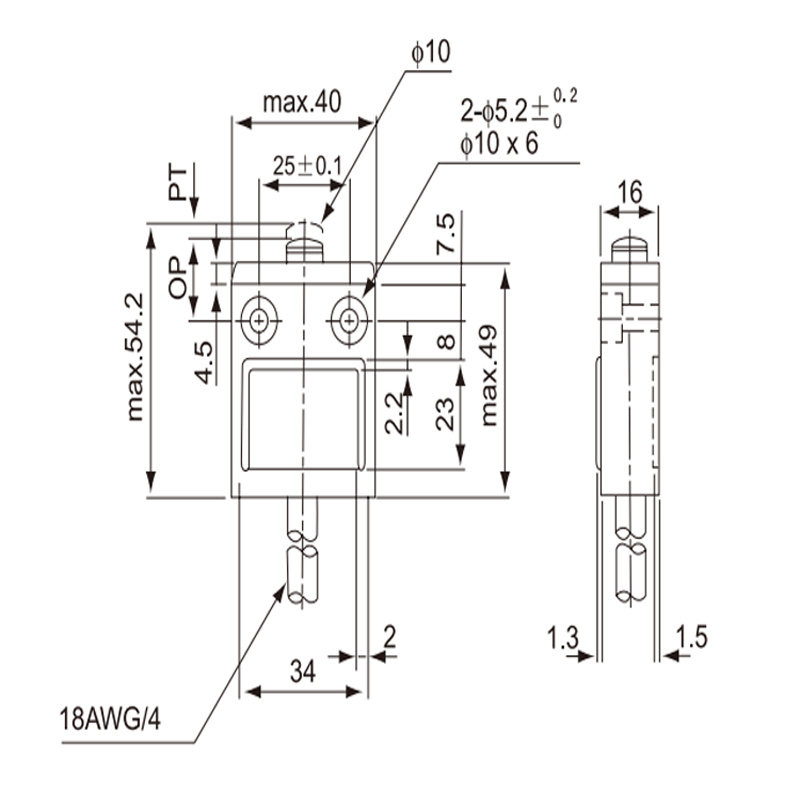

Dimensions/Operating Characteristics
| Max | 580gf(5.69N) |
| RF Min | 150gf(1.47N) |
| PT Max | 25mm |
| OT Min | 40mm |
| MD Max | 3mm |
| OP | -- |
FAQ
1. Q: Could I put my own logo on it?
A: Sure,customers' logo can be printed or put on the items.
2. Q: How about the guarantee of the items?
A: According to the actual situation. If it's simple, it's free charge.
3. Q: How about the quality?
A: Over 1 year. Each product will be different warranty,please contact us.
4. Q: How about the certificates?
A: CE,TUV,ISO etc.
5. Q: Could I buy 1pc sample first and small order?
A: Of course,support sample order and small order, especially for new customers under certain condition.
6. Q: How much for 1pc sample?
A: Sample can be provided free.
7. Q: How long to make a sample?
A: If we have stock, I'll send you soon.
8. Q: What payment is acceptable?
A: T/T or L/C at sight.PayPal is accaptable for samples.
Over 15 years OEM experience, we can provide professional solutions for customers.
