U. FL/Ipex Connector, 5.0dBi Gain, High Gain WiFi PCB Antenna, Internal 2.4GHz Antenna, PCB WiFi Antenna, Bluetooth Built in Antenna

Name: U. FL/Ipex Connector, 5.0dBi Gain, High Gain WiFi PCB Antenna, Internal 2.4GHz Antenna, PCB WiFi Antenna, Bluetooth Built in Antenna
Brand: all-electronics-online.com
SKU: 730460172
Availability: InStock
Rating: 4.7 (115 reviews)

Price:	US $ 1.5-1.9/Piece
Min Order:	10/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	WK-WIFI029
Connector:	U.FL Ipex Connetcor
Usage:	Broadcasting Antenna
Operating Wavelength:	Microwave
Directionality:	Omnidirectional Antenna
VSWR:	<1.5

Product Description

WiFi Antenna/2.4GHz/5.0-5.8GHz Antenna Specifications:

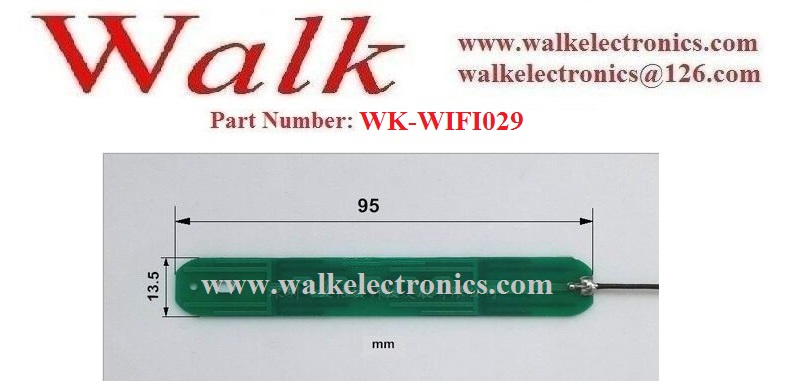

Part Number: WK-WIFI029
WIFI antenna Specification
Frequency Range	2.4GHz/5.0-5.8GHz
V.S.W.R	1.5:1
Gain	5.0dBi
Polarization	Vertical
Radiation	Omni directional
Max Input power(W)	50
Impedance	50 ohm
Max wind speed	200km/h
Mechanical Specifications
Size	96x14x1.0mm
Weight	<50g
Connector	U.FL/IPEX female right angle, MMCX, MCX, SMA or others
Cable	200mm 1.13mm(D), 1.32mm(D), RG178, RG174 or other
Environmental Specification
Working Temp	-40ºC~+85ºC
Vibration	Sine sweep 1g(0-p), 10~50~10Hz each axis
Humidity	95%~100%RH
MTBF=1×10-6/pc.hr	40ºC±5ºC, 2000pcs For 480h

GPS antenna, GPS glonass antenna, GSM antenna, GSM 3G antenna, 4G lte antenna, WiFi antenna, combo antenna, RF cable assembly and RF connector manufacturer.

Shenzhen Walk Electronics Co., Ltd. is specialized in designing, manufacturing and selling all kinds of antennas, RF cable assemblies, connectors, and car electronics, etc.

Main products: GPS antennas, GPS/Glonass antennas, GSM antennas, 3G GSM antenna, 4G LTE antenna, WiFi antennas, Combo antennas, RFID antennas; RF cables, RFID cables, computer cables, and automobile cables; RF connectors, PCB connectors and adapters.

Our company always supplies good quality products with proper price. Poor quality products will cost much more for both customers and us. Our company supplies customers with quick delivery. We have built happy and long term business relationships with customers and trust each other.
