U Series of Push-in Terminals Connector

Name: U Series of Push-in Terminals Connector
Brand: all-electronics-online.com
SKU: 715590595
Availability: InStock
Rating: 4.5 (21 reviews)

Price:	US $ 0.11-0.12/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
4mm²:	50mm²
Application:	Wer Supply
Environmental Protection:	Resistance to Environmental
Connection Mode:	Push-Pull Connection
Shape:	Rectangle
Contact Termination Form:	Screws Fixed
Type:	Feed Through

Product Description

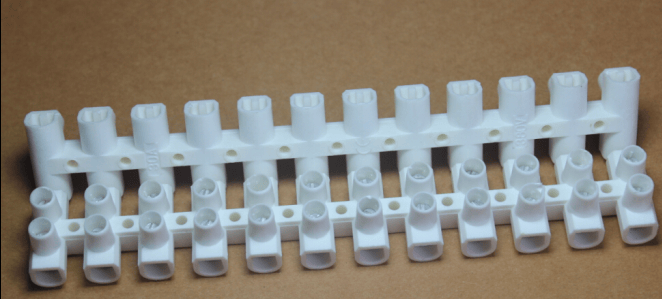

12 ways terminal block
* Type: Feed Through (U)
* Current: From 3A to 150A
* Voltage: 250 - 450V
* Material: PE, PP, PA brass insert/steel

PE, Polyethylene, good pliability, transparence, extensibility, resist dissolve, radiation. Working Temperature: - 40° C to 65° C, short time is 80° C.

PP, Polypropylene, inflaming retarding, low transparency, low rigidity, good bounce impact force. Working Temperature: - 30° C to 110° C, short time is 140° C

PA, Polyamide 6/6, 94V-2 grade. Inflaming retarding, good resist dissolve, good bounce impact force, Working Temperature: - 35° C to 115° C, short time is 180° C.

Fastening part: Brass plated nickel, screw is Iron plated zinc.
Certificate: CE, RoHS, CQC
White or black color AS YOUR REQUIREMENT
Cable Range: 2.5MM-40MM

Item No.	L	W	H	mm²	VOLT	AMP
JWL-U-3A	91	17	12	4	380V	3A
JWL-U-6A	106	15.5	13.5	6	380V	6A
JWL-U-10A	126	21	15	10	380V	10A
JWL-U-15A	133	21.3	16	12	380V	15A
JWL-U-20A	140	22	16	14	380V	20A
JWL-U-30A	164	24	20	20	380V	30A
JWL-U-60A	189	30	25	25	380V	60A
JWL-U-80A	205	35	28	35	380V	80A
JWL-U100A	233	40	30	40	380V	100A
JWL-U-150A	255	45	35	60	380V	150A

Our company is a key electrical accessories manufacturer of terminal blocks and other cable accessories in China.

Our company is located in Yueqing, Wenzhou City, Zhejiang Province. It is a manufacturing and export company, specialized in producing components for kinds of lights, automobile and so on. They have gone through many authentications such as CQC, CE, RoHS. The main products are terminal blocks and wires, cable ties, cable clips, cable glands and copper inserts. They have entered the mafket of most parts in the world including Europe, the Middle East and Latin America. They are of good quality and sell well in many countries.

Our company manufactures products strictly according to IEC and national GB standards, and we have established a complete and improved quality management system according with ISO9002 standard system, We guarantee the products with competitive price, high quality and timely delivery. Besides, we can supply a complete set of after-sales service to our customers and help term expand their local market share.

We welcome you to contact us for more information and we are looking forward to chances of creating a long and mutually beneficial partnership with you. We do hope to cooperate very very well and develop rapidly with our joint efforts for mutual benefits.
