U Type Air Heating Element Tubular Finned Heater

Name: U Type Air Heating Element Tubular Finned Heater
Brand: all-electronics-online.com
SKU: 837559025
Availability: InStock
Rating: 5 (114 reviews)

Price:	US $ 4-10/Piece
Min Order:	5/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	JY-FH026
Voltage:	Customized
Wattage:	Customized
Logo Mark:	Make as Customer Required
Sheath Material:	SUS 304, 321, 316
Tube Diameter:	Customized
Application:	Heater
Principle:	Resistance Heating Wire Heating
Heat Transfer Surface:	Tubular Heat Exchanger
HS Code:	85168000

Product Description

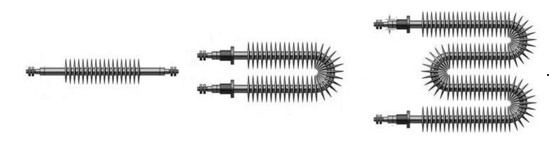

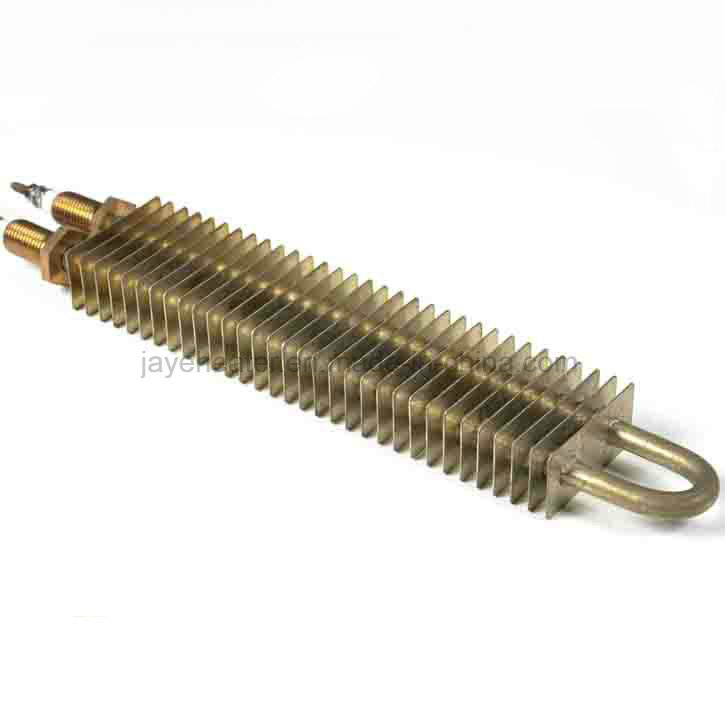

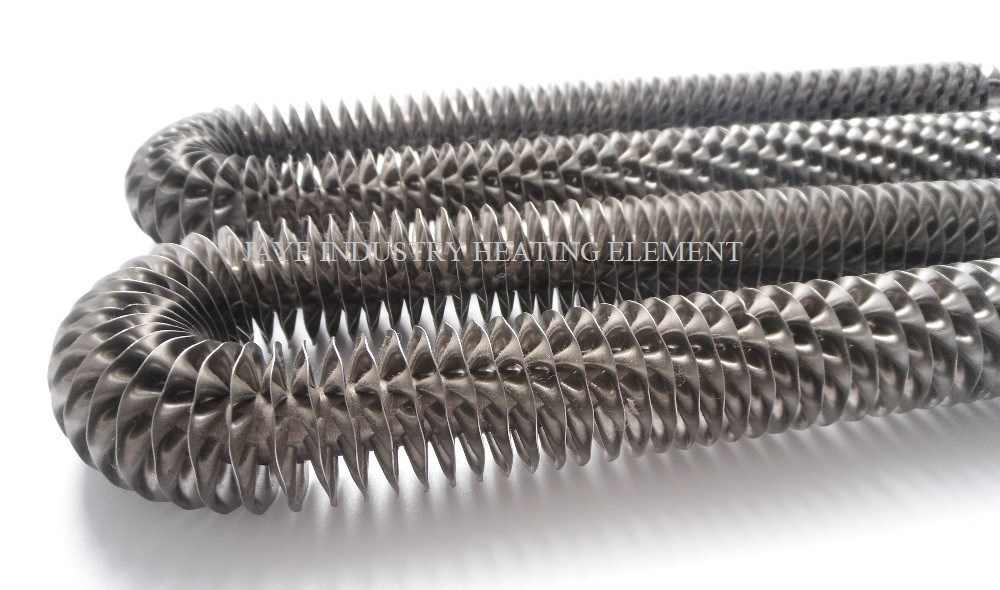

Finned Tubular Heating Element

Finned Heater are the most common heaters and are best suited for a large number of applications such as conduction, convection, and radiation.the heaters can be produced almost any shape or size. Custom bending diameters can be made upon request. JAYE use the finest materials in construction such as steel, stainless steel, incoloy, inconel and/or titanium alloys. JAYE also uses high quality magnesium oxide to allow for efficient heat transfer from resistive coil to your heating medium whether it is air, liquid or solid. These heater elements have a strong outer sheath to help protect the heater from physical stress and uses high quality alloys to allow efficient heat transfer from resistance coil to your heating medium.
The finned heater is designed for use in natural and forced convection space heating. Our range of finned air heaters are suitable for increased heat transfer surface area and where higher wattage is required. Featuring rugged construction, these finned heaters can be used in a multitude of industrial environments. Finned tubular heaters are used for forced convection heating, air or gas heating heating systems. Finned tubular heaters/heating elements are customized to meet your specific application needs.

Technical details:

Construction Diameter	Diameter 8.2mm Stainless steel 304,316L,321&Incoloy sheath
Tube Material	Stainless steel 304,316L,321&Incoloy available for your requirements.
Diameter Tolerance	Tolerance ±10%
Use of Alloys	Suitable for heater tube AISI 304 in water or humid environment max. temperature up to 170°C. In air max. 220°C
Termination	M3.5 or M4 stainless steel screw & nuts
Watt Density	Tube watt density of 30 watts sq.in.- suitable for many uses
Custom	Custom configurations, lengths, watts, volts available

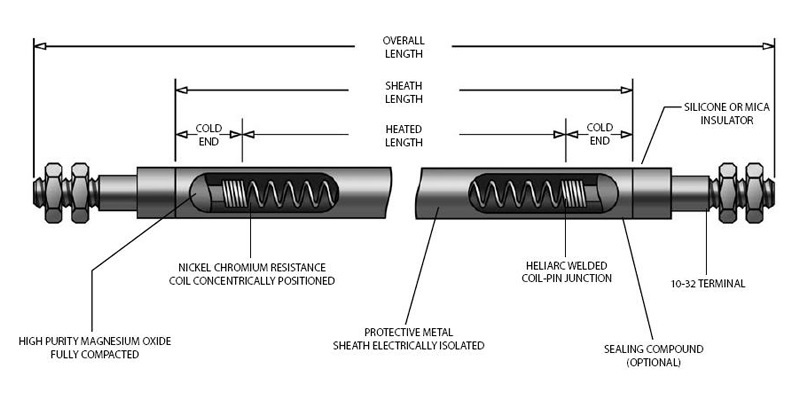

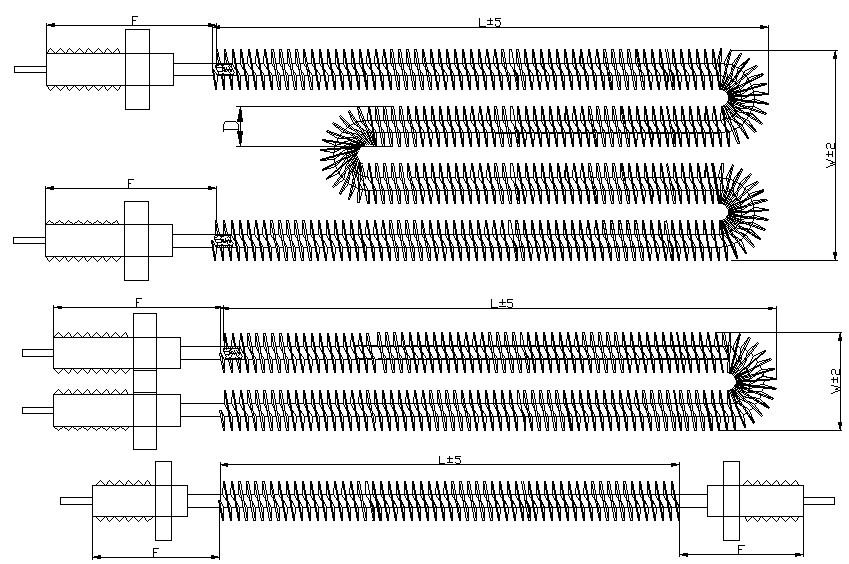

Structure:

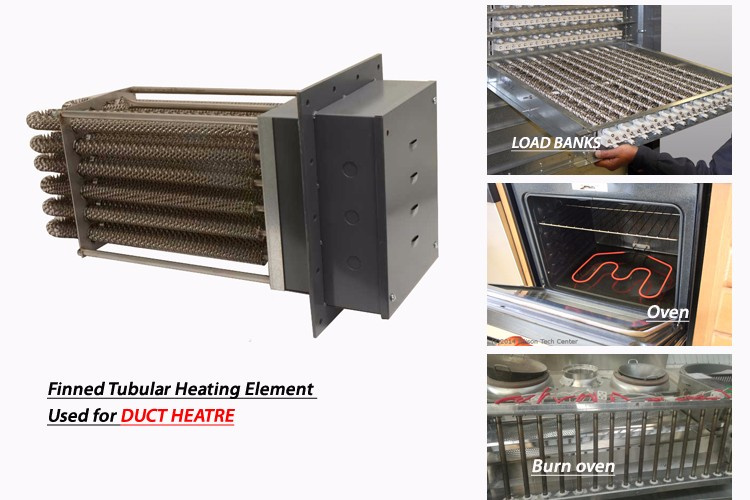

Application:

Jaye industry Co., Ltd has been in the heating elements industry since 2009, and is one of the most trust worthy and professional supplier for various type of heating elements, spare parts and thermostats in China. Our products Mainly include the Home heating elements, industrial heating elements, Flexible silicone heating elements, spare parts and thermostats etc.

'Customization' mixed with the highest grade of material and workmanship is the kind of heater that JAYE industry will provide. This is where our reputation lies and we will continue to provide only the best products to our customers.
