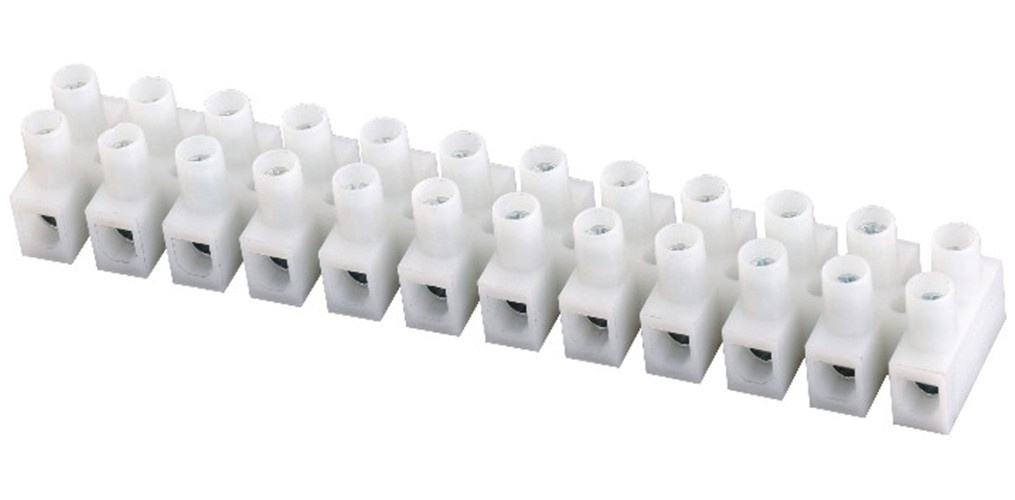

U Type Feed Through Terminal Block Passed VDE UL (MH12H)

Name: U Type Feed Through Terminal Block Passed VDE UL (MH12H)
Brand: all-electronics-online.com
SKU: 754593685
Availability: InStock
Rating: 4.3 (98 reviews)

Price:	US $ 0.1-0.2/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	2000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	MY12H
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Poles Available:	2-12p
Housing Material:	PA66,UL94V-2
Bsae:	Flat-Bottom
Clamp:	Brass, Ni Plated
Application:	Conduct Electricity
Environmental Protection:	Resistance to Environmental
Connection Mode:	In-Line Connector
Shape:	Rectangle
Contact Termination Form:	Screws Fixed
Type:	Dual Hole Terminals
Brand:	Wanjie

Product Description

CIXI WANJIE ELECTRONIC CO., LTD was founded in 1992 and specializes in the production of terminal blocks. The company have passed the ISO9001:2008, ISO14001, OHSAS18001 quality management system and our products have passed UL, VDE, TUV, RoHS, CQC, CB, CE certification.

Because of advanced production and test equipment, we could offer high quality and more competitive products. And we also have own R&D center, therefore, perfect OEM/ODM service can be supplied.

Hope to cooperate with you!
www.china-wj.com

Why choose us:
1. Good reputation
2. The quality of the products
3. Competitive price
4. Quality of Service
5. Quick feedback
6. Free samples

Feed through terminal blocks, connecting with two conductors easily and credibility. Provide the wire size from 0.5mm² to 10mm². Available with different pitches from 8.2mm to 14.5mm. Available for with fuse and without fuse. The product is designed in accordance with IEC60998,UL1059, CSA C22.2NO.158 standards.

MY12H

Certification	VDE, UL
Base	Flat-bottom
Screws	Steel, Zn Plated
Clamp	Brass, Ni Plated
Housing material	PA66, UL94V-2
Temp.range	-40º C~+105º C
Poles Available	2-12P

Model

Wire
mm²

ICE

Screw

Dimensions(mm/in)

Volt

Amp

Volt

Amp

Unit

MY8H+0

1.5

300V

17.5A

450V

24A

M2.6X5

94.0

17.0

14.20

8.00

3.00

2.80

MY10H+0

2.5

300V

28A

750V

24A

M3.0X6

116.7

20.3

17.20

10.00

3.50

3.20

MY12H+0

6.0

600V

41A

750V

45A

M3.5X7

139.7

24.0

19.00

12.00

3.90

MY16H+0

10.0

600V

57A

750V

60A

M4.0X9

171.3

32.0

25.00

14.60

4.40

4.80

If you can't find the exact product you need in the pictures, please don't go away.

Just contact me freely or send your sample and drawing to us.

We will reply you as soon as possible.

Cixi Wanjie Electronic Co., Ltd., is founded in 1992 and specializes in making terminal block and solderless breadboard. We have passed the ISO9001: 2000 quality management system and the products have been approved by VDE, UL, CE, SGS, CQC, RoHS and TUV.

With many years development, we have built an excellent management team and have our own R & D center, mould production, plastic injection, hardware stamping and assembling workshop. So we will give you the best offer also we can design, develop and produce the products according to customers' Request.

We have adopted advanced production and test equipment, so that we could offer good quality and more competitive products. For better service to the customers, we can also design, develop and produce according to customer`s requirement for OEM/ODM products.

With the advanced equipment and production line, good quality, competitive price and good service, our products are sold far to America, Europe, Middle East, Africa etc and receive good comments from the customers. So the company shows warm welcome to consult the business with all the customers both at home and abroad.

All the staff of company will strive together for a better tomorrow and show warm welcome to the customers of allover the world.
