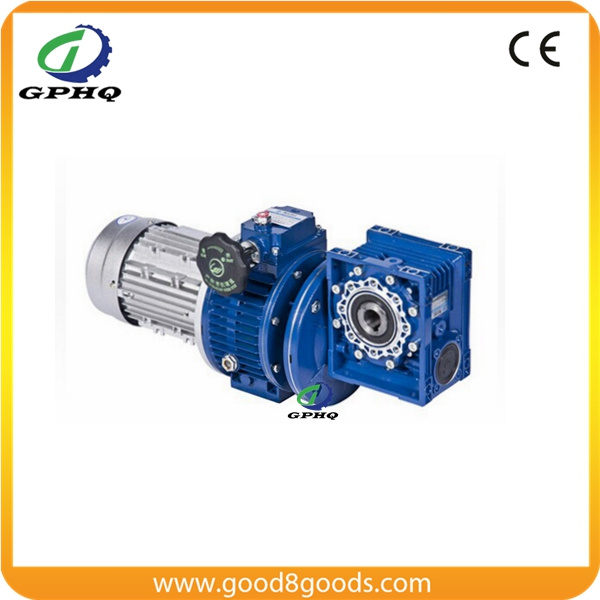

Udl 4kw Stepless Speed Controller for Speed Reducer

Udl 4kw Stepless Speed Controller for Speed Reducer
Price: US $ 50-5000/Piece
Min Order: 5/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: UDL
Motor Power: 0.18kw-160kw
Frequency: 50/60Hz
Enamelled Wire: Copper Wire ( Also Done Aluminum as Your Need)
Color: Done as Your Need (Connon Blue)
Gearbox Body: Cast Iron
Surface Hardness Of Gear: HRC58°-62°
Protection Grade: IP55
Gear: 20crmnti
Housing Hardness: Hbs90-240
Type: Bevel

Product Description

Stepless speed Variator

High modularity
- Matched with a large range of gearboxes, they are suitable to modular assembling of flanges, feet and torque arms.

High versatility
- 11 sizes, more than 200 versions, with wide range of different mounting positions.

High performances
- Power from 0.18 kW to 7.5 kW.
- Max torque 3000 Nm.
- Up to 6000 Nm when combined with bevel helical gearboxes.
- With the differential device, output speed can be brought to "zero" speed, when the motor is running.

High reliability
- Strengthened box for heavy duty applications.
- Planets and races are made in special steel 100Cr6 and are in oil bath, that guarantee the best conditions of transmission of the motion by friction.

UDL series stepless speed variators are widely used for foodstuffs, ceramics, packing, chemicals, pharmacy, paper-making, machine-tools, communications, and all kinds of automatic lines, pipelines and assembly lines which need speed regulation, It is a good companion for your production.
Technical data
Gear unit reduction ratio[i]1.4 to 7.0
Output torque[Nm]≤118
Motor power range[kW]0.18 to 7.5


The design of UDL series stepless speed variator compromises the advanced technology both at home and abroad. The products include the following main characteristics:
     1. High speed-regulating precision: up to 0.5-1 rotation.
     2. Large speed -changing range: The speed ratio ranges from 1:1.4 to 1:7 freely.
     3. High in strength and long in service life.
     4. Convenient to regulate the speed.
     5. Continuous in running, front-to-back in running direction, smooth in driving, stable in performance and low in noise.
     6. Full in sealing and suitable for any environment.
     7. Compact in structure and small in volume.
     8. Made of high-quality aluminum alloy die cast into forming, good-looking in appearance, light in weight and it never gets rusty.
     9. Good in adaptation: UDL series stepless speed variators can be combined with all kinds of speed reducers, as to achieve low stepless speed changing.

 Our  reduction geared motor Advantage

1,reasonable price with excellent quality
2,delivery in time
3,safe ,reliable ,economical and durable
4,stable transmission ,quiet operation
5,smooth running and low noise
6,nice appearance ,durable service life
7,high heat-radiating efficiency ,high carrying ability
8,each speed variator must be tested before packing
9.reply in high efficiency during one working day
10. professional to produce speed variator



If there is any question, please don't hesitate to contact with me (EVA), U can send us your inquiry. And you will get response in 1 working day.

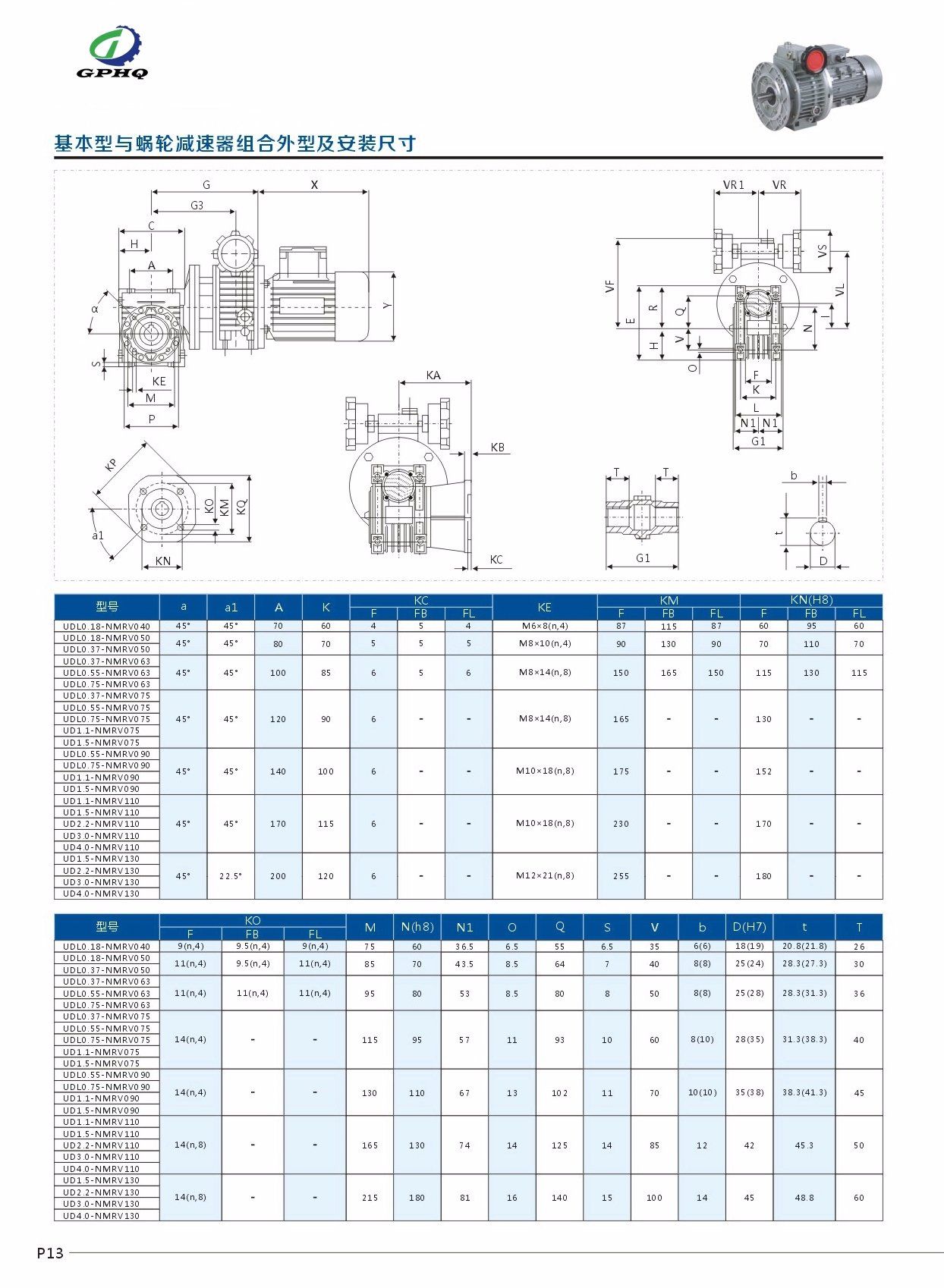

CATALOGUE :

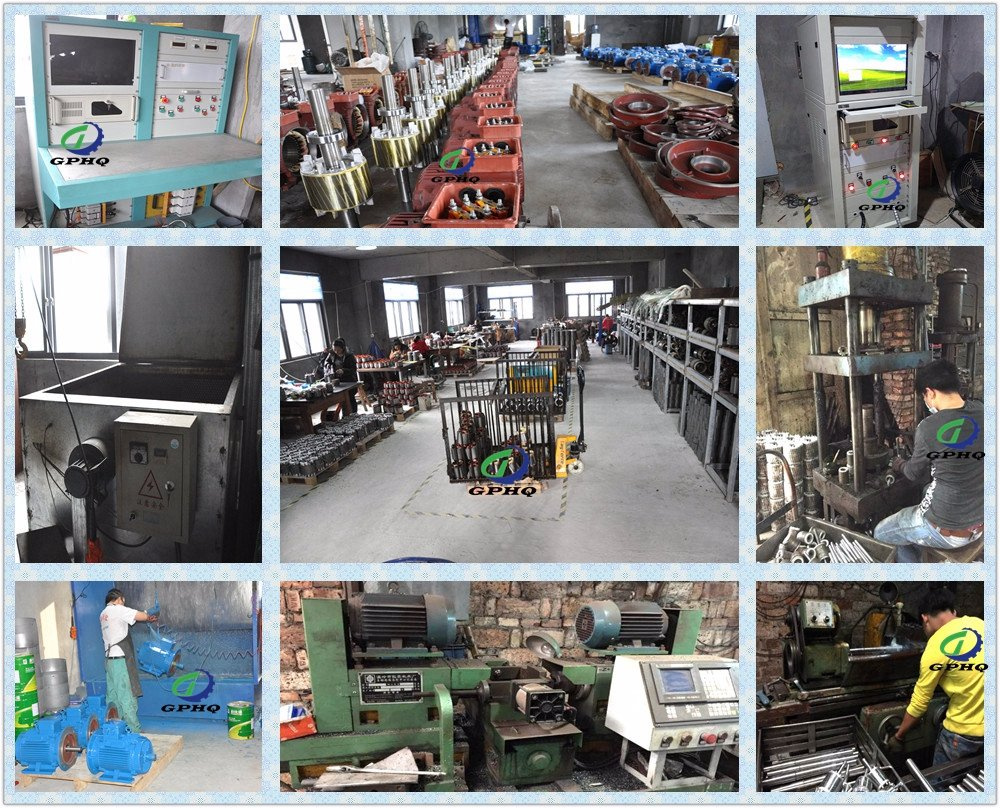

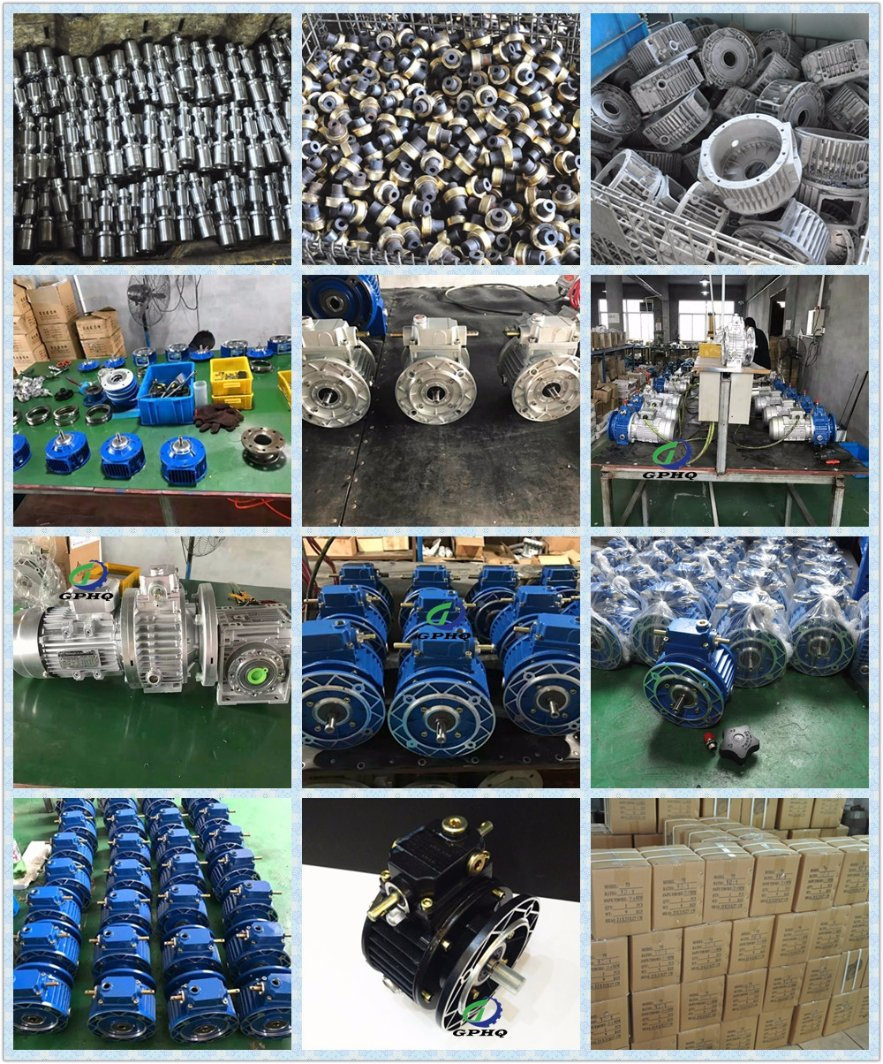

PRODUCING PROCESS:

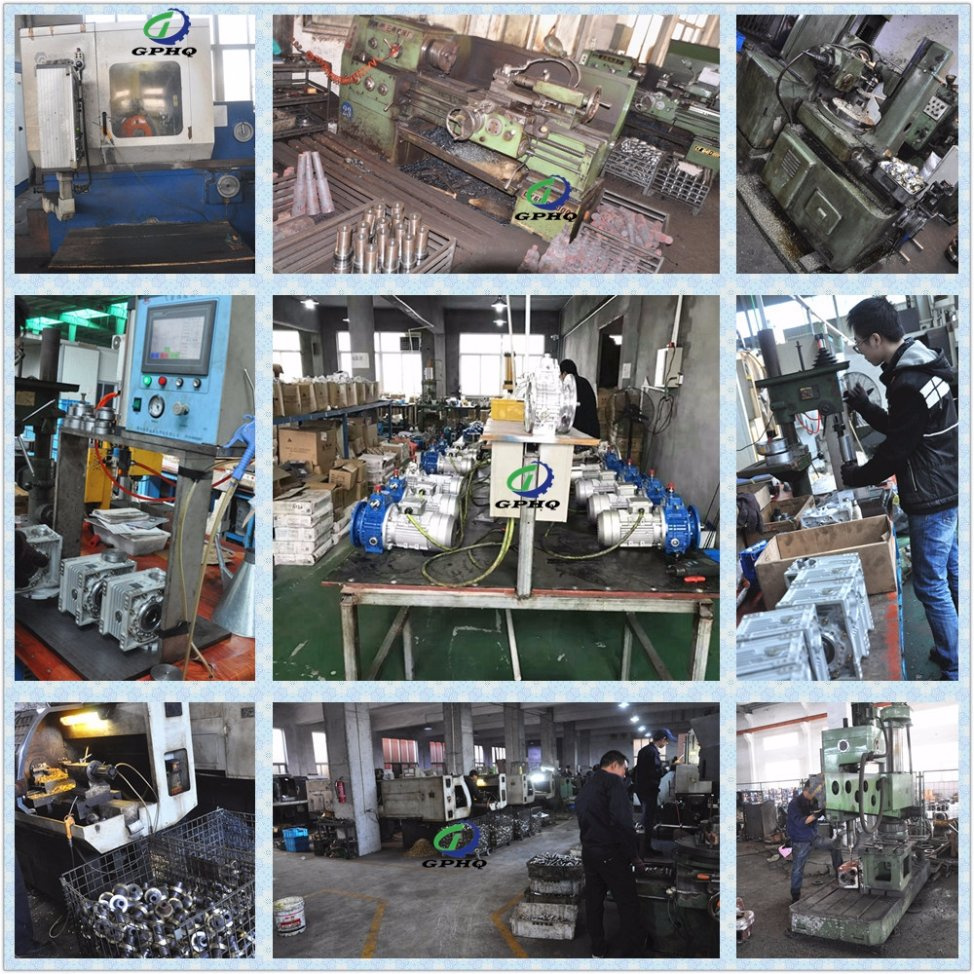

WORKSHOP EQUIPMENT:



CONTACT US :



FAQ
1, Q:what's your MOQ for ac gearbox motor  ?
A: 1pc is ok for each type electric gear box  motor

2, Q: What about your warranty for your induction speed reducer motor ?
A: one year ,but except man-made destroyed

3, Q: which payment way you can accept ?
A: TT, western union .

4, Q: how about your payment way ?
A: 100%payment in advanced less $5000 ,30% payment in advanced payment , 70% payment before sending over $5000.

5, Q: how about your packing of speed reduction motor  ?
A: plywood case ,if size is small  ,we will pack with pallet for less one container

6, Q: What information should be given, if I buy electric helical geared motor  from you ?
A: rated power,  ratio or output speed,type ,voltage , mounting way , quantity , if more is better ,



TAIZHOU EXTENSION SPEED ELECTRICITY Co., Ltd (WENLING GOOD COMMERCE & TRADE CO. Ltd) specializing in the sales of all kinds of gearbox, electric motors. On the sales service and management has accumulated rich experience, has a number of highly qualified technical personnel, management norms, quality isstable. Products by the China national mandatory product certification, quality is reliable, reasonable structure, and make "environmental protection" and "energy saving" synchronization.

WENLING GOOD COMMERCE & TRADE Co., Ltd(GPHQ )is located in taizhou, our company is near jiaojiang airport, wenling train station and ningbo sea port, convenient transportation is good for your visiting and soon sending goods to ningbo port.

GPHQ is meaning that we can offer good price, high quality gearbox motor, our target also is offering our customer good suitable price with high quality and nice exterior according Europe standard.

WENLING GOOD COMMERCE & TRADE Co., Ltd(GPHQ ) has always been in line with: "based on sincerity, good quality for first, the pursuit of excellence, pioneering and enterprising team, efficient, innovation". Perfect aftersales service; We will set up a business under the bridge of friendship, hand in hand Create brilliant!
