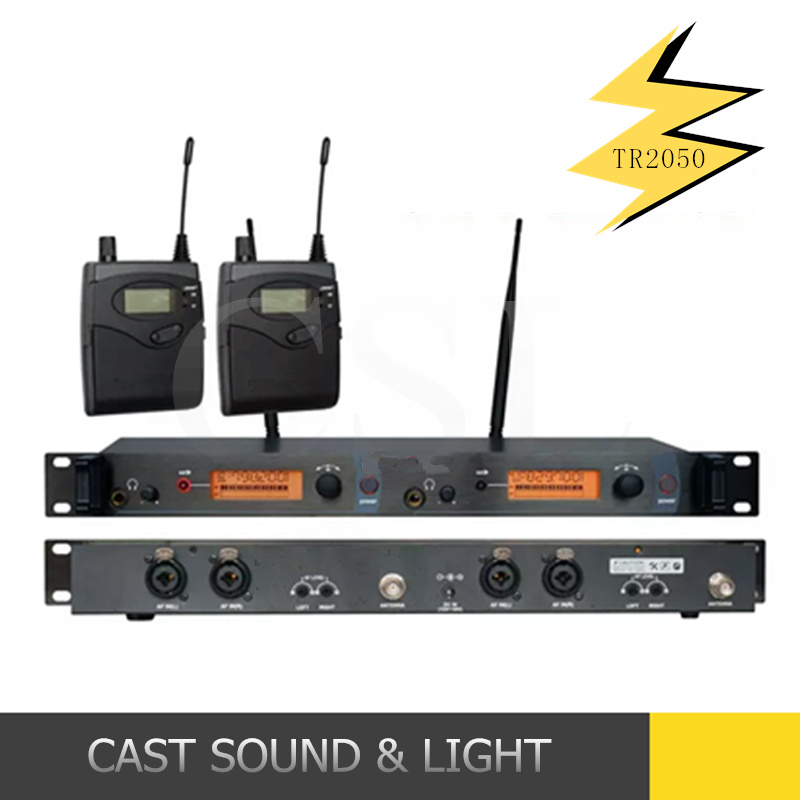

Name: UHF in Ear Stereo Monitoring Wireless System Wireless Microphone
Brand: all-electronics-online.com
SKU: 725404132
Availability: InStock
Rating: 4.5 (116 reviews)

Price:	US $ 120-230/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	CSL-TR2050
Products Type:	in Ear Monitor Microphone
Carrier Frequency Range:	572-813MHz
Input:	3-Pin XLR
Sensitivity:	-95 ~ -67dBm
Harmonic Distortion:	<0.5%
Maximum Frequency Deviation:	50Hz-15kHz
Signal-to-Noise Ratio:	>105dB
Working Distance:	100m
Power:	12V-18V
Warranty:	2 Year
Application:	Amplify
Signal Transmission:	Wireless
Directivity:	Omni-direction
Sound Channel:	Stereo
Transducer Principle:	Electrodynamic Microphone
Sound Field Force:	Pressure Differential Type
Connector(',s):	XLR 3 Pin
Wireless Technology:	UHF
Output Impedance:	50-1000Ω
Style:	Wireless in Ear Monitor Microphone

Product Description

UHF in Ear Stereo Monitoring Wireless System Wireless Microphone
In ear monitor
Wireless in ear minitor system
Wireless in ear mic
In ear monitoring system
UHF wireless in ear mic

Applications:
1. Stage monitoring
2. Tour guide

SR5080 Transmitter Technical Indicators:
Chassis specifications: standard 1U
Chassis material: metal panel and chassis
Bandwidth: UHF 572-613MHZ
Preset channel: preset 6 groups of 6 channels
Transmit output power: 100mW (50Ω)
Audio input: XLR and φ6.3mm composite socket
Headphone output: φ6.3mm Body socket, the volume can be adjusted
Headphone load impedance: ≥16Ω
Current consumption: DC 12V / 250mA
Antenna output seat: TNC socket (50Ω)

SR5080 Receiver Specifications:
Oscillation mode: PLL phase locked frequency synthesis
Bandwidth: UHF 572-613MHZ
Frequency interval: 25MHz
Preset channel: preset 6 groups of 6 channels
Operation: manual adjustment
Receiving mode: single tuning
Integrated frequency response: 80Hz ~ 15KHz ± 3dB
Output power (32Ω): 2 × 35mW @ 1KHz
Headphone load impedance: ≥16Ω
Output socket: φ3.5mm stereo headphone jack
Power box: 5 (AA) battery two

Trade terms

MOQ	1 pcs
Price term	FOB / EXW / CIF
Payment terms	T/T , Western union , Cash
Package	Carton box / Flight case
Delivery time	For sample order: about 3 - 5days after payment For big order : about 5-15days after payment
Shipping	By air , By sea ; By express : DHL / UPS / Fedex/EMS
OEM	We accept OEM order
Warranty	Three years
After sells service	If there is the problem with the product, firstly you need send the picture or the video to us, then let us make sure what's problem about the product, we will try our best to help you .if the problem can use the part to solve ,we will offer you the replacement for free Within 2 years.

Contact information

Mobile Number	0086-18520627990
Delivery time	1-3 days after your payment
Warranty time	36months
OEM	Welcome to consult
Shiping	BY DHL FEDEX UPS

if you are interested , please click "send" to get more information .
CSL WILL MAKE YOU SHINE!

Cast Sound & Light Stage Equipment Co., Ltd in Guangzhou City, acts as a major innovator,

Developer and manufacturer dedicated to designing and manufacturing professional stage lighting Speaker products. Under the support from our professional technical and design term, our factory produces high quality intelligent lighting products for professional entertainment, architectural and themed environment markets. All our products undergo rigorous testing and very strict QC procedures to ensure trouble-free performance.

The main products are Professional Speaker, Micphone, Power amplifier, Microphone Refurbished Computer

Beam Light, Moving Head Light, LED moving head light, LED Wall Washer Light, LED PAR light, LED Dance Floor, LED Effect Light, Stage Equipment, outdoor light, Stage, Truss, etc.

At CSL, we dedicate ourselves to providing you with reliable, stable and creative products at Compatitive Price. We will do our best to let our customers purchase high quality products, reasonable price and timely delivery.

Welcome New and Old customers from all walks of life to contact us for future business relationships and mutual success!

Our mission is "Highest quality, Top-class reputation, service first, customer foremost
