UK Series Split Core Current Transformer

UK Series Split Core Current Transformer
Price: US $ 1.8/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
Prod Model: UK
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frequency: 50/60Hz
Rated Current: 100A---800A
Safe Factor: Fs5
Secondary Current: 5A/1A
Type: Current Transformer
Phase: Both

Product Description

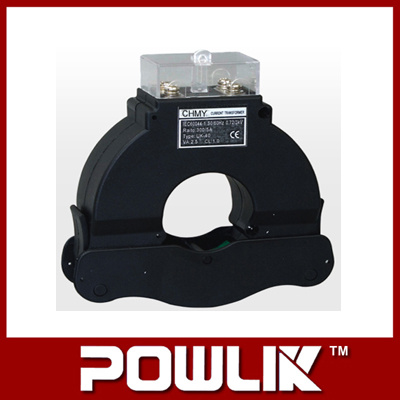

UK Series Split Core Current Transformer

1. DESCRIPTION
A new split core current transformer inside hinge design can match space limitation which no need open existing cable system, much save labor cost and time.

2. FEATURE
Busbar mounting
Side hinge design
Primary current from 100A to 800A.

3. SPECIFICAIONS
Rated Frequency 50/60Hz
Rated test voltage 3kV AC. (1 min)
Rated short-time thermal current(Ith) 60In
Rated dynamic current, (Idyn) 2.5Ith
Rated voltage, (Um) 0.72Kv AC.
Continuous overload, (ID) 1.2In
Operating temperature 10º C~50º C
Housing self-extinguishing class VO
Safety factor FS 5
Secondary current 5A/1A
