| Prod Model: |
UK |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| UK2.5b: |
UK3n |
| Hs: |
85369000 |
| Screw: |
Screw Terminal |
| Thickness: |
15.2mm |
| Width: |
55mm |
| Height: |
51mm |
| Rigid Cable: |
0.75-3 |
| Softe Cable: |
0.75-35 |
| Current: |
125A |
| Material: |
PA |
| Application: |
Wer Supply |
| Environmental Protection: |
General |
| Connection Mode: |
Push-Pull Connection |
| Shape: |
Rectangle |
| Contact Termination Form: |
Screws Fixed |
| Brand: |
Suntree/OEM |
Product Description

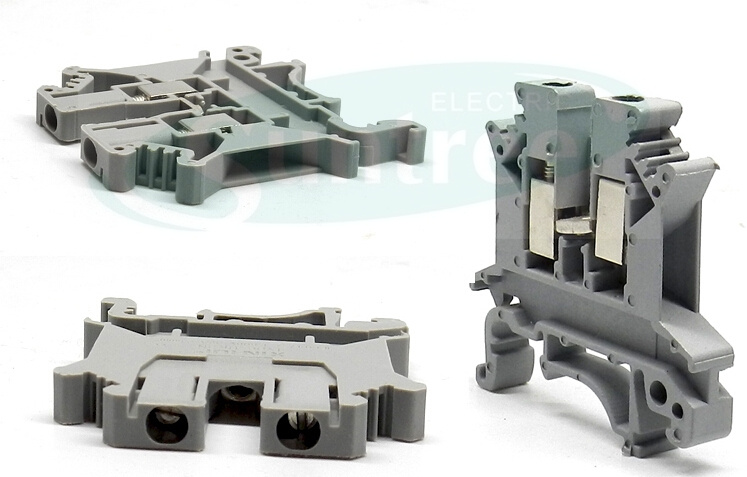

UK Universal din rail terminal block pcb terminal block
UK series combined terminal adopts frame type screw connection structure.
The design complies with IEC60947-1,
GB14048 standards, which is widely used in the circuit of AC 50Hz(60Hz), rated voltage 660V, DC 40V and below, rated sectional area 0.75~150mm² connection conductor,
it is also suitable for connecting the circle copper conductor of tube terminal which is not specially
processed or pressure welding.
UK series combined terminal adopts frame type screw connection structure.
The design complies with IEC60947-1,
GB14048 standards, which is widely used in the circuit of AC 50Hz(60Hz), rated voltage 660V, DC 40V and below, rated sectional area 0.75~150mm2
connection conductor, it is also suitable for connecting the circle copper conductor
of tube terminal which is not specially processed or pressure welding.
? UK Size:
UK1.5N UK2.5B UK3N UK5N UK6N
UK10N UK16N UK35B UKH50 UKH95 UKH150
? UK Earthing Size:
USLKG2.5 USLKG3
USLKG5 USLKG6
USLKG10 USLKG16 USLKG35
? Color : Grey/Yellow
The features of UK terminal blocks:
1.:terminal blocks with the mounting stud so can be used on TH35-7.5 rail and G type rail,like G32-15L G32-18,the closed screw can make the screwdriver work perfectly
2.:To the terminal block with many sections fit out the unit accessory like header,separating plate
and so on
3.Electric potential allocated can through accessing to the center of terminal block fixed type
or interesting to the edgegrip of the terminal blocks to make that true
4.Compared with the same common the grounding blocks and N type terminal blocks ,
we adopted marking system can realize ZB ...combination of digital unified label
2.UK terminal block data
| Model | Hard Wire(mm2) | Soft Wire(mm2) | Rated Current(A) | Rated Voltage(V) | Dimension(mm) |
| UK2.5B | 0.2-4 | 0.2-2.5 | 32 | 690 | 6.2 x 42.5 x 42 |
| UK3N | 0.2-4 | 0.2-2.5 | 32 | 800 | 6.2 x 42.5 x 42 |
| UK5N | 0.2-6 | 0.2-4 | 41 | 800 | 6.2 x 42.5 x 47 |
| UK6N | 0.2-10 | 0.2-2.5 | 57 | 800 | 6.2 x 42.5 x 47 |
| UK10N | 0.5-16 | 0.5-10 | 76 | 800 | 10.2 x 42.5 x 47 |
| UK16N | 2.5-25 | 4-16 | 101 | 800 | 12.2 x 42.5 x 54 |
| UK35N | 0.75-50 | 0.75-35 | 150 | 1000 | 15.2 x 50.0 x 62 |
| UKH50 | 16-50 | 25-50 | 150 | 1000 | 20 x 70.5 x 83.5 |
| UKH95 | 25-95 | 35-95 | 232 | 1000 | 25 x 83 x 97.5 |
| UKH150 | 35-150 | 50-150 | 309 | 1000 | 31 x 100 x 118.5 |
| Model | Hard Wire(mm2) | Soft Wire(mm2) | Rated Current(A) | Dimensions(mm) |
| USLKG2.5 | 0.2-4 | 0.2-2.5 | 32 | 6.2 x 42.5 x 42 |
| USLKG3 | 0.2-4 | 0.2-2.5 | 32 | 6.2 x 42.5 x 47 |
| USLKG5 | 0.2-6 | 0.2-4 | 41 | 6.2 x 42.5 x 47 |
| USLKG6N | 0.2-10 | 0.2-6 | 57 | 8.2 x 42.5 x 47 |
| USLKG10N | 0.5-16 | 0.5-10 | 76 | 10.2 x 42.5 x 47 |
| USLKG16N | 2.525 | 4-16 | 101 | 12.2 x 42.5 x 54 |
| USLKG35N | 0.75-50 | 0.75-35 | 150 | 15.2 x 50.0 x 62 |
| USLKG50 | 16-50 | 25-50 | 150 | 20 x 70.5 x 81.5 |
| M3"...6" 8mm | M3"...5" 8mm |
| UK2.5B | UK3N |
| Solid Wire (mm2)0.2-4 | Solid Wire (mm2)0.2-4 |
| Stranded Wire (mm2)0.2-2.5 | Stranded Wire (mm2)0.2-2.5 |
| instruction: | IEC60947-7-1 | IEC60947-7-1 |
| end cover thickness:1.5mm2 grey | Current: 32A Voltage: 800V | Current: 32A Voltage: 800V |
| D-UK2.5 | D-UK4/10 |
10 center connection-strips,
can be divided into 2 position or 3 position | FB1 10-6 | FB1 10-5 |
| Isolator bridge bar:10-position,divisible need cushion block | lSSB1 10-6lS-K4 |
|
Swith bar for 2 terminal blocks complete,
add end cover between two terminals. | USBR 2-7 |
|
separating plate: be used for electrical separation
of neighbouring bridges | TS-K | TS-K |
| partition plate:1.5mm thick | ATP-UK | ATP-UK |
| universal end fixed End Fixed Piece | E/UK | E/UK |
|
|
|
| M4"...10" 11mm | M6"...10" 16mm |
| UlK 16 | UlK 35 |
| Solid Wire (mm2)2.5-25 | Solid Wire (mm2)10-35 |
| Stranded Wire (mm2)4-16 | Stranded Wire (mm2)10-35 |
| IEC60947-7-1 | IEC60947-7-1 |
| Instruction: | Current: 101A Voltage: 800V | Current: 125A Voltage: 800V |
| End Cover Thickness: 1.5mm2 grey | D-UlK 16 |
|
Fixed bridge-fittng: For cooss connections
in the terminal center screw nailwith insulating ring,
10 position, divisible, with 10 nails | FB1 10-12 | FB1 2-15
FB1 3-15 |
Separating plate: For electrical separation
between connection fittings | TS-K | TS-K |
| Partition plate: 1.5mm thick | ATP-UK | block shell, no end cover |
| universal End Fixed Piece | E/UK | E/UK |
|
|
|
| M3"...6" 8mm | M4"...8" 10mm | M4"...10" 12mm |
| UK5N | UK6N | UK10N |
| Solid Wire (mm2)0.2-6 | Solid Wire (mm2)0.2-10 | Solid Wire (mm2)0.5-16 |
| Stranded Wire (mm2)0.2-4 | Stranded Wire (mm2)0.2-6 | Stranded Wire (mm2)0.5-10 |
| IEC60947-7-1 | IEC60947-7-1 | IEC60947-7-1 |
| Current: 41A Voltage: 800V | Current: 57A Voltage: 800V | Current: 76A Voltage: 800V |
| D-UK4/10 | D-UK4/10 | D-UK4/10 |
| FB1 10-6 | FB1 10-8 | FB1 10-10 |
| lSSB1 10-6 lS-K4 | lSSB1 10-8lS-K10 | lSSB1 10-10 lS-K10 |
| USBR 2-7 | UR 2-8/13N |
|
| TS-K | TS-K | TS-K |
| ATP-UK | ATP-UK | ATP-UK |
| E/UK | E/UK | E/UK |
|
|
|
| M6"...14" 24mm | M8"...22" 33mm | M10"...22" 40mm |
| UKH 50 | UKH 95 | UKH 150 |
| Solid Wire (mm2)16-50 | Solid Wire (mm2)25-95 | Solid Wire (mm2)35-150 |
| Stranded Wire (mm2)25-50 | Stranded Wire (mm2)35-95 | Stranded Wire (mm2)50-150 |
| IEC60947-7-1 | IEC60947-7-1 | IEC60947-7-1 |
| Current: 150A Voltage: 1000V | Current: 232A Voltage: 1000V | Current: 309A Voltage: 1000V |
| FB1 2-20 FB1 3-20) |
|
|
Insertion short connection fitting, fully insulated,
plug terminal clip and insert on the shell of terminal | EB2-25EB3-25 | EB1 2-31 EB1 3-31 |
| End Fixed Piece E/AL-NS 35 |
|
|
| End Fixed Piece:for end-fixing UKH50,95 and 150 type terminals. | E/AL-NS 35 | E/AL-NS 35 |
|
|
|
| Universal Test Terminal | Knife Double-connecting Wire Terminal | Knife Breaking Terminal |
| M4"...8" 10mm | M3"...6" 8mm | M3"...5" 7mm |
| URTK/S | UDK4-P/P | MTK-P/P |
| Solid Wire (mm2)0.5-10 | Solid Wire (mm2)0.2-4 | Solid Wire (mm2)0.2-4 |
| Stranded Wire (mm2)0.5-6 | Stranded Wire (mm2)0.2-2.5 | Stranded Wire (mm2)0.2-2.5 |
| IEC60947-7-1 | IEC60947-7-1 | IEC60947-7-1 |
| Current: 57A Voltage: 500V | Current: 16A Voltage: 690V | Current: 16A Voltage: 400V |
| instruction:knife test terminal ,test socket nails on two sides | instruction:knife terminal,
test socket nails on two sides of knife | instruction:knife breaking terminal ,
test socket nails on two sides |
| End cover:D-URTK/S | End cover:D-UKD4 | End cover:D-MTK |
Center short connection piece:
FB10-RTK/S |
|
|
Partition plate :
ATS-RTK | Insertion short connection piece :
EB 2-62 EB 3-62 EB 10-62 | Insertion short connection piece :
EBL 2-5' EBL 3-5' EBL 10-5' |
Inward shift short connection piece:
USB2-RTK/S |
|
|
| Outward shift short connection piece:ASB2-RTK/S |
| Partition plate:ATS-MTK |
|
|
|
| Double Level Terminal | Double Level Terminal | Double Connecting-wire Terminal |
| M3"...6" 8mm | M3"...6" 8mm | M3"...5" 7mm |
| UKK 5 | UKKB 3 | UDK 4 |
| Solid Wire (mm2)0.2-4 | Solid Wire (mm2)0.25-2.5 | Solid Wire (mm2)0.2-4 |
| Stranded Wire (mm2)0.2-4 | Stranded Wire (mm2)0.25-1.5 | Stranded Wire (mm2)0.2-2.5 |
| IEC60947-7-1 | IEC60947-7-1 | IEC60947-7-1 |
| Current: 32A Voltage: 500V | Current: 32A Voltage: 500V | Current: 32A Voltage: 690V |
| End cover:D-UKK3/5 | End cover:D-UKKB3/5 | End cover:D-UDK4 |
| Spacer cover:DG-UKK3/5 | Spacer cover:DG-UKKB3/5 | Center short connection piece:
FB1 10-6 |
| Spacer plate:Dp-UKK3/5 | Spacer plate:DP-UKKB3/5 | isolator short connection piece :
ISSBI 10-6 |
Center short connection piece:
FB1 10-6 | Fixed bridge :
FBRNl 2-5N FBRNl 3-5N | Short connection piece isolator :
IS-K4 |
| Inward shift short connection piece:USB2-RTK/S | FBRNl 4-5NFBRNl 10-5N | Switchable short connection piece
between two terminals: USBR 2-7 |
| Outward shift short connection piece:ASB2-RTK/S |
| Partition plate:TS-KK 3 |
|
|
|
| Double Outlet Connecting-wire Terminal | Universal Terminal | Sign Type Terminal |
| M3"...6" 8mm | M3"...6" 8mm |
|
| UK5-TWlN | UK5-RETURN | UBE/D |
| Solid Wire (mm2)0.2-4 | Solid Wire (mm2)0.2-6 |
|
| Stranded Wire (mm2)0.2-4 | Stranded Wire (mm2)0.2-4 |
|
| IEC60947-7-1 | IEC60947-7-1 |
|
| Current: 32A Voltage: 500V | Current: 41A Voltage: 500V |
|
instructiion:terminals with universal
locking foot ,for mounting onor | instruction:terminals'universal foot,
for mounting on or | Instruction:mark the terminal group,
for mounting on or |
| End cover: D-UK5-TWlN | End cover:D-UK3-RETURN |
|
Center short connection piece:
FB1 10-6 | Center short connection piece:
FB1 10-6 |
|
| Short connection piece isolator: lSSBl 10-6 lS-K4 | Insertion short connection piece:
EB 2-62 EB 3-62 EB 10-62 |
|
Switchable short connection piece between two terminals:
USBR 2-7 | Partition plate: TS-UK3-RETURN |
|
| Partition plate :TS-K | Partition plate: ATP-UK3-RETURN |
|
|
|
|
| Miniature Terminal | Miniature Terminal | Miniatrue Double-level Terminal |
| M3"...5" 8mm | M3"...6" 8mm | M3"...5" 7mm |
| MBK 3/E-Z | MBK 5/E-Z | MBKKB 2.5 |
| Solid Wire (mm2)0.2-2.5 | Solid Wire (mm2)0.2-6 | Solid Wire (mm2)0.2-4 |
| Stranded Wire (mm2)0.2-4 | Stranded Wire (mm2)0.2-4 | Stranded Wire (mm2)0.2-2.5 |
| IEC60947-7-1 | IEC60947-7-1 | IEC60947-7-1 |
| Current: 32A Voltage: 500V | Current: 41A Voltage: 500V | Current: 24A Voltage: 690V |
Instruction :according to the rules of EN50045,
for mounting on the guide of NS 15 | Instruction :terminal'suniversal foot,
for mounting on or | Instruction :mark to terminal group,
for mounting on or |
| End cover:D-LTU2MBK 3/5 | End cover:D-MBK 5 | End cover:BKKB-2.5 |
Center short connection piece:
FBR110-5N | Center short connection piece:
FB1 10-6 | Center short connection piece:
FBRNl 10-5N |
| Islator short connection piece:
lSSBl 10-6lS-K4) | Insertion short connection piece :
EB 2-5/3-5/10-5 |
| End Fixed Piece: E/MBK1 | End Fixed Piece: E/MBK1 | End Fixed Piece: E/MBK1 |
| Partition plate :ATP-MBK | Partition plate :ATP-MBK | Partition plate :TS-KK3 |
