| Prod Model: |
ul 3604/3644 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Insulation Material: |
Silicone Rubber |
| Application: |
Underground |
| Certification: |
CSA |
| Conductor Material: |
Bare Copper or Tinned Copper |
Product Description
Wuxi Yuanda Electrical Material Co., Ltd. Is an ISO9001 certified manufacturer, whose main products have won approval of UL, VDE, CSA and CCC and ROHS Environmental Protection Instruction of European Union.

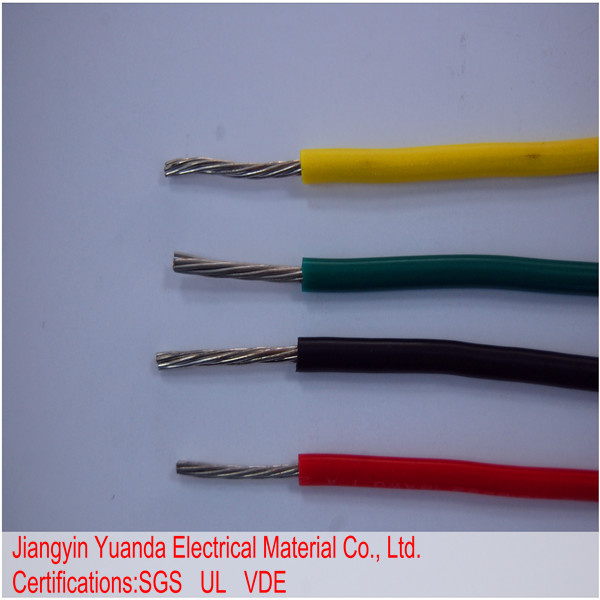

UL3604/3644 Silicone rubber insulated wire:Technical Data:
Nominal Voltage: 600V/1000V
Temperature Range: -60 ° C ~+150° C/ -60° C~+200° C
Testing Voltage: 2000V
Conductor: Bare Copper or Tinned Copper
Insulator: Silicone Rubber
Colours: White-Blue-Red-Black-Brown-Yellow-Green-Transparent-Yellow/Green
Use: Inner fixed wires for Home electric Appliances, lightings, electronic equipment.
Certificate No.: E216252 CSA229260
Specification:
|
Conductor |
Insulation |
Resistance
20ºC
Ω/km |
Spec
AWG |
Conductor
construction
No./ φmm |
Diameter
(mm) |
Nominal
thickness
(mm) |
Nominal outer
diameter
(mm) |
Max outer
diameter
(mm) |
|
30 |
7/0.10 |
0.3 |
0.78 |
1.86 |
2.05 |
364.0 |
|
28 |
7/0.12 |
0.36 |
0.78 |
1.92 |
2.1 |
252.0 |
|
26 |
7/0.16 |
0.48 |
0.78 |
2.04 |
2.2 |
143.0 |
|
24 |
7/0.20 |
0.6 |
0.78 |
2.16 |
2.4 |
92.0 |
|
22 |
7/0.25 |
0.75 |
0.78 |
2.31 |
2.5 |
56.8 |
|
20 |
7/0.31 |
0.93 |
0.78 |
2.49 |
2.7 |
40.1 |
|
18 |
7/0.395 |
1.19 |
0.78 |
2.75 |
3 |
23 |
|
16 |
7/0.495 |
1.49 |
0.78 |
3.05 |
3.4 |
14.6 |
|
14 |
41/0.25 |
1.82 |
0.78 |
3.38 |
3.7 |
9.9 |
|
12 |
45/0.32 |
2.5 |
0.78 |
4.06 |
4.5 |
5.38 |
|
10 |
35/0.45 |
3.08 |
0.78 |
4.64 |
5.1 |
3.5 |
|
8 |
44/0.50 |
3.9 |
1.18 |
6.26 |
6.9 |
2.19 |
|
6 |
70/0.50 |
5.5 |
1.53 |
8.56 |
9.4 |
1.41 |
|
4 |
110/0.50 |
6.9 |
1.53 |
9.96 |
11 |
0.92 |
|
2 |
175/0.50 |
8.7 |
1.53 |
11.76 |
12.9 |
0.59 |
|
1 |
217/0.50 |
10 |
2.03 |
14.06 |
15.5 |
0.449 |
|
1/0 |
276/0.50 |
11.2 |
2.03 |
15.26 |
16.8 |
0.335 |
|
2/0 |
342/0.50 |
12.2 |
2.03 |
16.26 |
17.9 |
0.282 |
|
3/0 |
437/0.50 |
13.8 |
2.03 |
17.86 |
19.6 |
0.223 |
|
4/0 |
551/0.50 |
15.5 |
2.03 |
19.56 |
21.5 |
0.177 |
|
250Kcmil |
1009/0.40 |
16.8 |
2.45 |
21.7 |
23.8 |
0.147 |
|
300Kcmil |
1216/0.40 |
18.5 |
2.45 |
23.4 |
25.7 |
0.122 |
|
350Kcmil |
1406/0.40 |
20 |
2.45 |
24.9 |
27.4 |
0.105 |
|
400Kcmil |
1615/0.40 |
21.5 |
2.45 |
26.4 |
29 |
0.091 |
|
450Kcmil |
1813/0.40 |
22.6 |
2.45 |
27.5 |
30.3 |
0.081 |
|
500Kcmil |
2010/0.40 |
23.9 |
2.45 |
28.8 |
31.7 |
0.073 |
|
550Kcmil |
2220/0.40 |
25 |
2.8 |
30.6 |
33.7 |
0.067 |
|
600Kcmil |
2420/0.40 |
26.2 |
2.8 |
31.8 |
34.9 |
0.061 |
|
650Kcmil |
1675/0.50 |
27.3 |
2.8 |
32.9 |
36.2 |
0.056 |
|
700Kcmil |
1808/0.50 |
28.2 |
2.8 |
33.8 |
37.2 |
0.052 |
|
750Kcmil |
1935/0.50 |
29.3 |
2.8 |
34.9 |
38.4 |
0.049 |
|
800Kcmil |
2060/0.50 |
30.1 |
2.8 |
35.7 |
39.3 |
0.046 |
|
900Kcmil |
2320/0.50 |
32 |
2.8 |
37.8 |
41.6 |
0.041 |
|
1000Kcmil |
2580/0.50 |
33.7 |
2.8 |
39.3 |
43.2 |
0.036 |
Jiangyin Yuanda Electrical Material Co. Ltd. (Wuxi yuanda Electrical Materical Co. Ltd) is locked in Jiangyin, the most developed city in China, Jiangsu Province. Facing Taihu Lake in the south and bordering Changjiang River in the north, it is well located and easy of access as Huning and Xicheng Freeway Stretching over the district. It's about 100 km from Shanghai Pudong Airport and Nanjing Lukou Airport and it is near Wuxi and Changzhou Airport too. We believe that our unique advantages and convenient transportation could be your ideal business choice.
Our main products include:
1. Heat-resistant silicone rubber wires which are widely used in household appliances and electronic instruments such as UL3122, UL3135, UL3512 and VDE HO5S-K, VDE HO5SJ-K, CCC245IEC, H3Cable and teflon wires such as UL1330, UL1332, UL10362 and so on.
2. Steel industry heat-resistant cables applicable to aviation, navigation and such as YG, H05SS-F.
3. JG and JYJ cables applicable to electric machines metallurgy, engines, transformers and nuclear Powers.
4. Wires such as GXL, AEX and SGR used in automobiles.
5. Coaxial cables such as RG and RF series used for communications in cell phones, computers 3G and military industry.

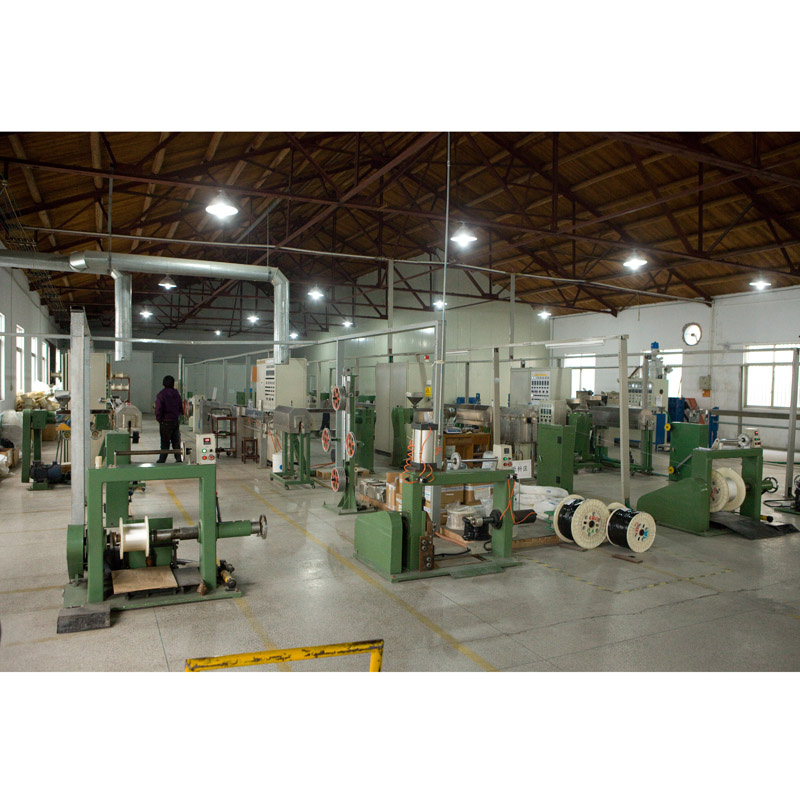

We have abundant technical strength, advanced equipments, functional testing facilities and good quality-ensuring systems and have acquired the certificates of ISO9001-2000 and ISO/TS16949: 2009 for Automotive wires and tubes. Our main products, silicone rubber insulated wires and cables Teflon sires, silicone glass fiber pipers, rubber-inside and fiber-outside pipes are certified by UL, VDE, CSA and CCC and all our products can meet the requirements of RoHS.

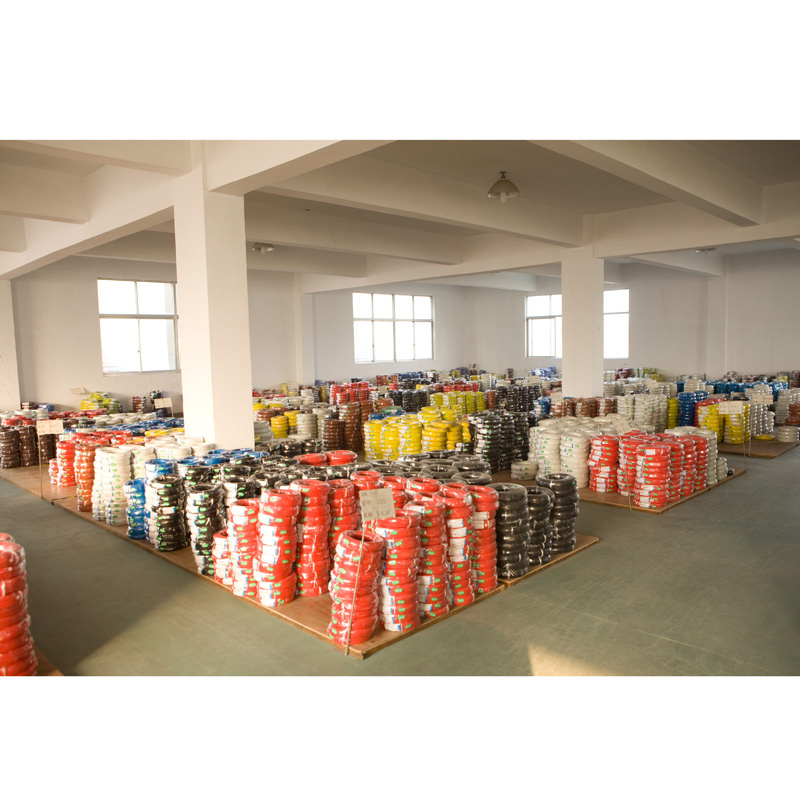

Our annual output of heat resistant sleeve is 120, 000Km, all kinds of high temperature cable is 8, 600, 000Km, RF coaxial cable is 150, 000Km, and we can process all kinds of nonstandard cable according to the requirement of clients. With the excellent products, punctual delivery, we'll be your ideal partner.
With high qualify products, reasonable price and perfect after-sales service, we believe that we can achieve win-win situation with you. Looking forward to your cooperation!
