UL 4/0AWG Mobile Home Feeder Mhf Cable

CONSTRUCTION

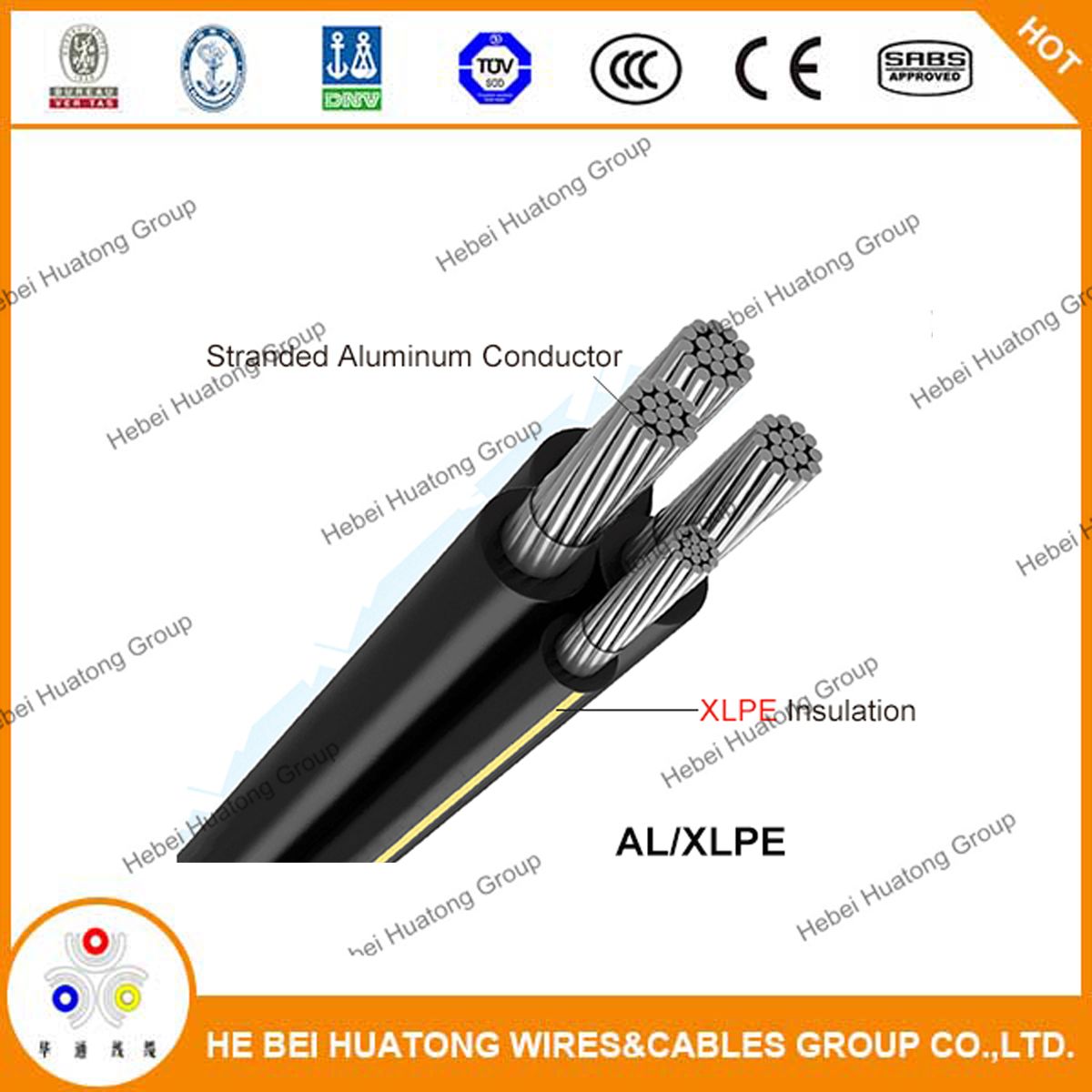

Conductor: compact copper or AA-8000 series aluminum alloy, compact stranded

Insulation:Cross-linked polyethylene(XLPE) insulation with property of heat.

                                  Moistrure and abrasion resistance and flame retardant

voltage:600v

Temperature range: temperature of 90 in dry locations for type xhh

                                  temperature of 90 in dry and 75° wet locations for type xhhw

                                  Temperature of 90 in wet and dry locations for xhhw-2

SPECIFICATIONS
 conductors comply with the following:
• ASTM- All Applicable Standards
• UL Standard 44
• NOM-ANCE 90° C
• Federal Specification A-A-59544
• National Electrical Code, NFPA 70, 2011 Edition
• NEMA WC 70 Construction Requirements
•12AWG-2000KCMIL
• RoHS/Reach Complian

APPLICATIONS
XHHW-2 conductors are primarily used in conduit or recognized raceways for services, feeders, and branch circuit wiring as specified in the National Electrical Code. XHHW-2 conductors may be used in wet or dry locations at temperatures not to exceed 90°C. Voltage rating for XHHW-2 conductors is 600 volts. Suitable for use in Health Care Facilities per section 517.160 of the NEC where a dielectric constant of 3.5 or less may be specified.

We are one of China top rank cable&wire manufacturer.

Our products meet standards of GB, IEC DIN ASTM, JIS,NF, AS/NZS CSA GOST and so on.

we have obtained ISO9001,ISO14001,OHSAS18001,

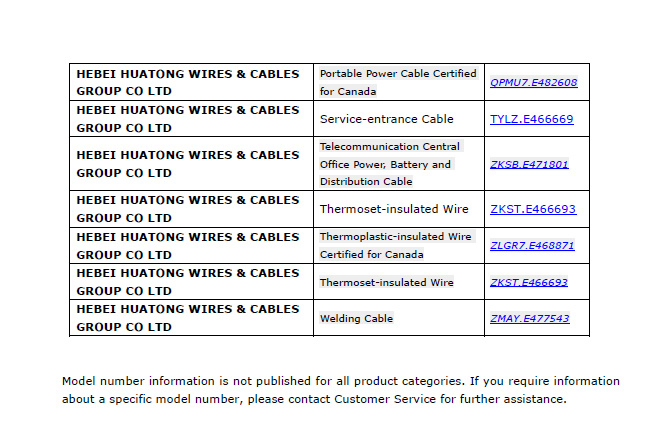

UL,CE,KEMA, TUV, Bureau Veritas, Lloyd,IEC,GL,SA,NK,KR certificates.

HeBei huatong wires&cables Group Co.,ltd.It was established in 1993, we are JV with Furukawa(Japanese company) for rubber serious cables and JV with Riken(Japanese company) for elevator cables. Besides these,our submersible oil pump cable and shipboard cable are very influential in domestic, and, the traditional cables are also produced such as PVC powercables, XLPE power cables, ABC cables, wires, control cables, screened cables,communication cables, conductors.We are OEM for many USA, Europen, Australia cable company,70% of our products are exported, most customers are from developed countries. We got ISO,UL,TUV,KEMA,CE and many other certifications.

(1).When can I get the price?

We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please

call us or tell us in your e-mail so that we will regard your inquiry priority.

(2).How can I get a sample to check your quality?

After price confirmation, you can require for samples to check our quality. Sample is free, but the freight

charge should be paid.

(3).How long can I expect to get the sample?

After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7

days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express account orprepay us if you do not have an account.

(4).What about the lead time for mass production?

Honestly, it depends on the order quantity and the season you place the order.Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
