| Prod Model: |
AS1420-10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Primary AC: |
120VAC @ 2 AMPS 60Hz (Optional 240 VAC 50Hz) |
| Output DC: |
24VDC @ 4 AMPS |
| Power Supply: |
5.25 AMP Regulated and Integrated |
| Charger Current: |
1.25 AMPS Max. |
| Weight: |
25 Lbs. (Without Batteries) |
| Type: |
Fire Alarm Host |
| Function: |
Networked |
| Usage: |
Smoke |
| Receive Frequency: |
315MHz |
| Wiring Mode: |
Bus System |
Product Description

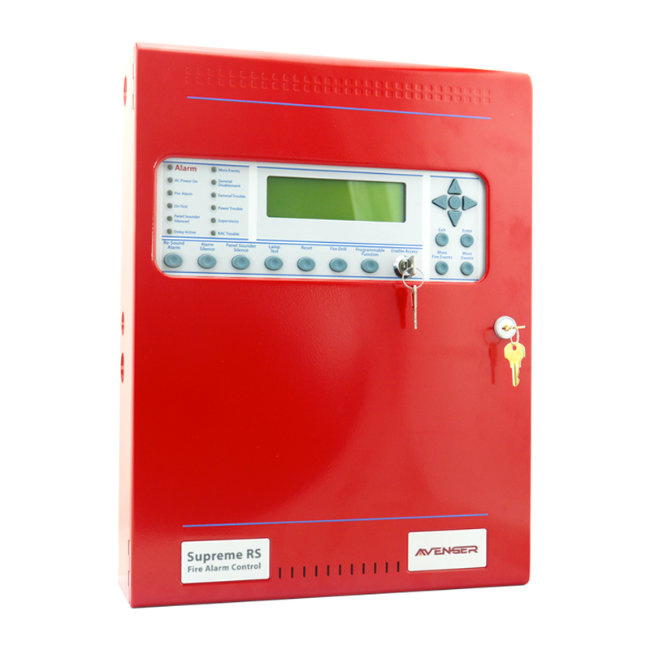

UL A2 Loop Red Panel Addressable Fire Alarm Control System
Introduction:
Elite [H] 2 Loop Panel, Red AS1420-10
AS1420-xx (2 Loops) AS1440-xx (4 Loops)
Elite [H] 2 Loop Panel, Red w/eNET Network Card AS1425-10
Supreme with eNET (AS1425-xx/AS1445-xx) Network uses standard RS485 cabling Up to 2,000 ft.
The AS1420 and AS1440 analog addressable FACP with networked releasing, supports 2 or 4 SLC loops for a total of 500 primary points and up to 800 points using sub points.
SLC loop communications uses standard twisted pair cabling, shielded cable is not necessary.
The panel may be configured with various communication cards; Communications options support remote programming, central station monitoring, Virtual Panel and networking.
The Panel can be configured as a stand-alone panel with just a few devices for a small building; it can also operate as the building system and can be part of a network with a total of 64 nodes serving a multiple building campus or a very large facility.
Auto Learn capability provides a convenient method to troubleshoot new installations before final programming is loaded
UL 864 9th Edition listed
Multi-Loop 2 Analog Addressable Loops Field upgradable to 4
126 primary points per loop
Powerful, network wide cause and effects (500 total).
Fully user programmable by point or zone.
800 points per panel when using devices with sub-points
Up to 10,000 ft. wiring length on SLC loop
64 Panels on a network
Programmable through a PC connection to the panel, or through keypad
Programmable relays - 5
Supervised Powered Outputs - 3
Programmable Notification Appliance Circuits: 4
Power per NAC: 1.6 Amps Max
Programmable outputs on SLC loop
Programmable Function button on front display
Fire Drill button on front display
Day and night sensitivity settings (user programmable)
Power Supply: 5.25 Amp, regulated & integrated
LCD Display: 8×40
Zonal Mode: Annunciation by zone w/o individual relationships
Panel Ring Modes: Common, Zonal, Stage 2
NAC Outputs programmable as Continuous, March, Temporal
Program Cause and Effects AND, OR, or Any Two (Cross Zone)
Battery size: Up to 17 Ah in standard enclosure; up to 52 Ah with external cabinet
Access levels: 3
Access key switch: Yes
Recognized for use in High Rise
One man walk test - Fire Test Mode
Available with semi flush trim ring
Available in Red or Gray
Added Features:
Supreme with eNET (AS1425-xx/AS1445-xx)
Network uses standard RS485 cabling
Up to 2,000 ft. between adjacent panels
115 Kbps constant network speed
Secure, fault tolerant communication
Up to 64 nodes | Primary AC | 120VAC @ 2 Amps 60hz (Optional 240 VAC 50hz) |
| Output DC | 24VDC @ 4 Amps |
| Power Supply | 5.25 Amp regulated and integrate |
| Charger Current | 1.25 Amps max. |
| Dimensions | 14.5" W x 24"H x 5" D |
| Weight | 25 lbs. (without batteries) |
| Color | Red (optional gray) |
| Display | 8-line x 40-character LCD (320 characters' total) |
| Zones | 500 Zones per network |
| SLC loops | 2 or 4 (class A or B) |
| Devices per loop | 126 sensors & modules (800 addresses + sub-addresses max. per panel) |
| NAC Outputs | (4) 1.6 Amp @ 24VDC (class B) |
| Relay Outputs | (5) Form C 1 Amp @ 30VDC |
| Voltage Outputs | (3) 500mA @ 24VDC, reverse polarity supervised |
| Power | 500mA @ 24VDC |
| Inputs | (3) digital pull downs |
Packaging & Shipping
Packaging Details:
1) PEE bag per unit
2) Outside Cartons
3)Strict & Standard Export Packing Procedures Adopted Exterior Corrugated Hardboard Carton Interior Blister Buffer Staff, Asenware fire pump control equipment.
