| Prod Model: |
PLD036-1SCF521TS-900 |
| Dimming Model: |
Triac/Elv Dimming |
| Usage: |
Digital Products |
| Output Type: |
Single |
| Driving Method: |
LED Constant Current |
| Circuit Structure: |
Conventional Step-down Transformer |
| Power Supply Voltage: |
90VAC-305VAC |
| Brand: |
Fsp-Powerland |
Product Description

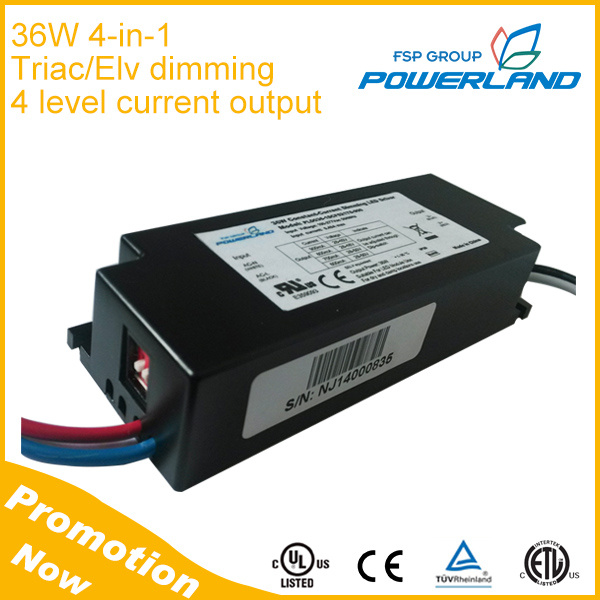

UL Listed 32W-36W Constant Current Led Driver with Triac/Elv Dimming
600mA 700mA 800mA 900mA
4-in-1 setting by dip switch
PLD36-1SCF521T(S) series offers constant current drivers with wide-range dimmable output current and 90-305Vac universal input.
The output current of this series are up to 600mA/700mA/800mA/900mA with Dip switch current setting(TS version), and designed for Triac/ELV dimming applications. Applications Indoor LED lights
Led Lights with flexible current settings Downlights, spotlights, LED panels
SpecificationsInput
Voltage | Output
Power | Output
Voltage | Output
Current | Efficiency | Max. Case
Temperature | Max. Input
Current | Max. Input
Power | THD | Power
Factor |
| 90~305Vac | 32~36W | 28V
…
52V | 0.6A
…
0.9A | 85% | 90ºC | 0.65A | 43.5W | <20% | >0.95 |
Compatible with Triac/ELV Dimming
Output current settable with DIP Switches(TS Version)
Universal input voltage:90-305Vac
Safety according to UL1310 & EN61347-2-13
EMC according to FCC part 15 Class B
Lightning, OVP, SCP, OTP & Open Circuit Protection Electrical Specification Electrical Specifications| Model | PLD036-1SCF521T-600 | PLD036-1SCF521T-700 | PLD036-1SCF521T-800 | PLD036-1SCF521T-900 | PLD036-1SCF521TS-900 |
Output Voltage | 28~52V | 28~50V | 28~48V | 28~40V | 28~52/28~48/
28~48/28~40V |
Output Current | 600mA | 700mA | 800mA | 900mA | 600/700/800/900mA |
Dimming
| Triac/ELV | Triac/ELV | Triac/ELV | Triac/ELV | Triac/ELV |
| Current Setting DIP Switches | No | No | No | No | Yes |
Output Power | 32W | 36W | 36W | 36W | 36W |
Max. Current Ripple | ±30% | ±30% | ±30% | ±30% | ±30% |
Voltage Range | 90~305Vac | 90~305Vac | 90~305Vac | 90~305Vac | 90~305Vac |
Frequency Range | 47~63Hz | 47~63Hz | 47~63Hz | 47~63Hz | 47~63Hz |
Max. Input Current @ 230Vac | 0.65A | 0.65A | 0.65A | 0.65A | 0.65A |
Max. Input Power | 38.5W | 43.5W | 43.5W | 43.5W | 43.5W |
Power Factor | >0.95 @ 115Vac & 80~100% load, >0.75 @ 277Vac & 80~100% load |
Efficiency | 83.5% | 84% | 84% | 85% | 85% |
Max. Open Circuit Voltage | 60V | 60V | 60V | 60V | 60V |
THD | <20% @ 120Vac & 80~100% load |
Protections | OVP, OTP, OCP, SCP |
EnvironmentalProtection | UL Dry & Damp |
WorkingTemperature | -20~+60ºC |
Max. Case Temperature | 90ºC |
Surge Protection | 1kV |
Agency Approbations | UL1310 Class 2 |
Electromagnetic Compliance | Per Title 47 CFR Part 15 Class B |
Ansi Surge Type | 1.2/50μs Combination Wave (w/t 2Ω) |
Isolation | Primary to Secondary: 3750Vac / 10mAMax / 60seconds |
Dimension | 115x45x25 mm (4.53x1.77x0.98 inch) |
Mounting Length | 105 mm (4.13 inch) |
Overall Length | 115 mm (4.53 inch) |
Weight | 0.20 kg (0.44 lb) |
Life Time | 100,000 hours @ full load, 65oC Tcase |
* Unless otherwise noted, the data are based on 25ºC ambient temperature, 230Vac input voltage, and full load.
Electrical Specification
Performance Characteristics (Test wtih PLD036-1SCF521TS-900)
