UL Approved 12V 1.5A 18W Us Standard AC Power Adapter

Name: UL Approved 12V 1.5A 18W Us Standard AC Power Adapter
Brand: all-electronics-online.com
SKU: 709299102
Availability: InStock
Rating: 4.7 (80 reviews)

Price:	US $ 3-6/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	UT-A0001-US
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cable Length:	150cm
Warranty:	1 Year
Usage:	LED Rechargeable Light
Output Type:	DC
Connection:	Plug In
Brand:	Unisun

Product Description

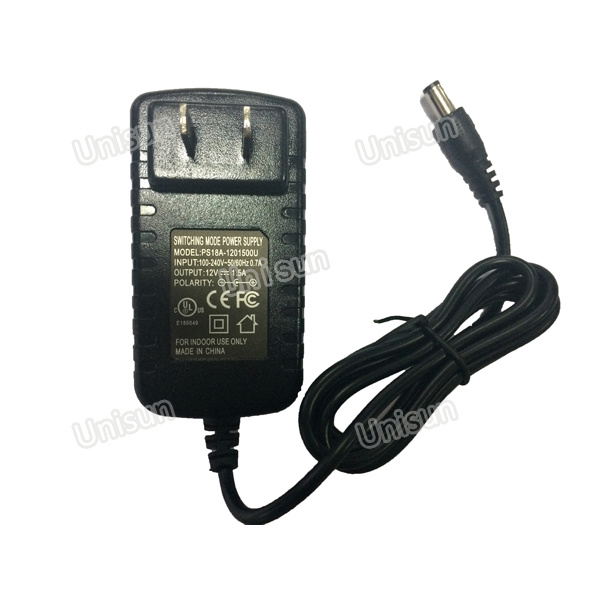

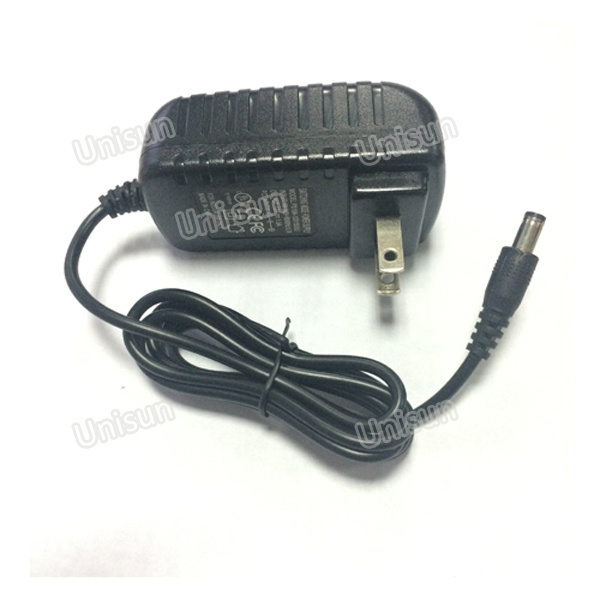

12V 1.5A 18W AC Power Adapter for Rechargeable LED Work Light

1. Dimension: L82*43*31mm 18W US standard
2. DC cable length can be customered
3. Material: ABS+PC, environmental
4. Inner DC connector positive, Outer negtive.

Technical Specification	Input Voltage	AC 100-240V
	Input Frequency	47Hz~63Hz
	Input Current	≤800mA(AC Input Voltage 100V)
	Dash Current	≤50A(AC Input Voltage 240V)
	Power Factor	≥0.5(AC Input Voltage 240V, Internal Resistance<0.1Ω)
	Efficiency	≥75% at rated voltage
	Output Voltage	9V±5%
	Output Rated Current	2A
	Rated Power	18W
	Ripple Noise	≤120mV
	Start Delay Time	≤3S(under the Iput-voltage of AC110V)
	Working Temperature	0ºC to 40ºC
	Storage Temperature	-20ºC to 75ºC
	Test Temperature	25±10ºC
	Humidity	5%-93%(under the condition of non-concentrated)
	Atmospheric Pressure	70 - 106Mpa
	Hi-pot Test	AC 3000V(Min), 3S, leakage Current≤5mA
	Insulation Resistance	≥10MΩ (standard atmospheric pressure, humidity 90%, DC500V)
Certificate	CE, FCC, ROHS, SAA, CB, GS, KC, UL
Warranty	2 years
Feature	IC Program Design with low power consumption
	100% Aging Test; Virbration Test; Plug-in and Plug-out Test; ESD Test; Falling Test
	MTBF50,000 hours under the temperature of 25ºC with maximum load(according to the standard of MIL-HDBK-217)
	Overurrent Protection, Short-circuit Protection

Unisun Technology, is an original manufacturer in LED auto related lighting solutions which located in Foshan, and sales office is now in Shenzhen.

We build up our company since Year 2013, with less than 10 staffs. And now we are a team of more than 50 staffs, including 5 international sales people and 4 R&D engineers.

Unisun is dedicated itself to top quality products, and at the mean time, offering the highest possible level of service to our customers. For us, quality and service are most significant, which is also the important reason we win trust from our customers.

All our production team, R&D team, sales team and managements have serveral-year experience in LED auto lighting area. They have been involved themselves at the very beginning of this industry. Therefore, whatever product question or special requirements you had, we could spare no effort to support and help you, and prove ourselves by real actions.

Under the unremitting efforts of the whole team, we have built up long-term relationship with many big brand in America, Canada, Australia and European countries. But surely we will go further with the trust of customers.

Our Main Products include:

-LED Work Lights

-LED Light Bars

-LED Driving Lights

-LED Headlights

-LED Rechargeable Flood Lights

-Mounting Brackets & Accessories

-LED Flashlights
