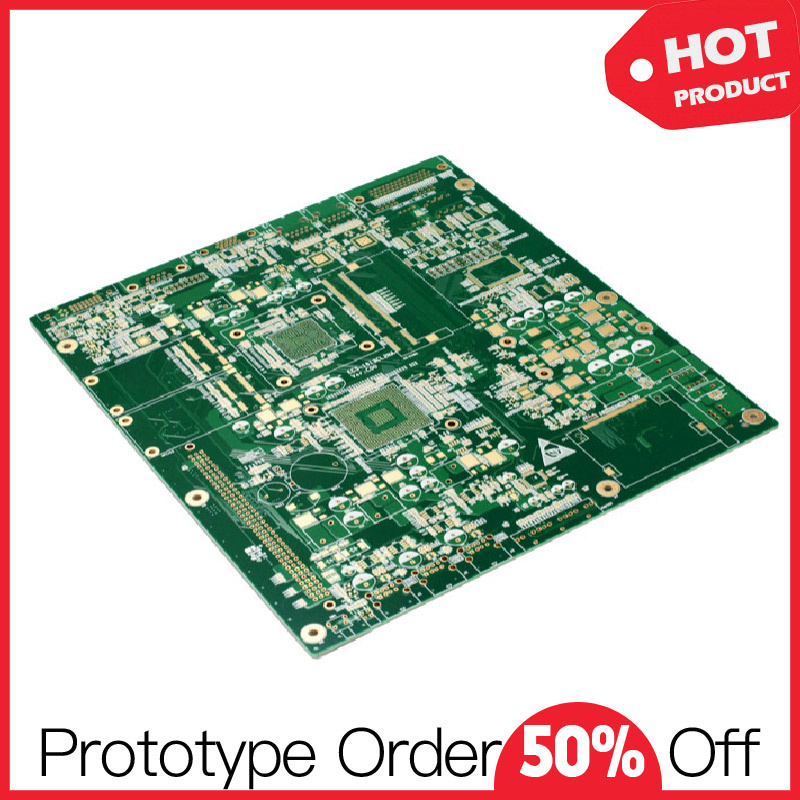

UL Approved Customized PCB Circuits with Assembly Service

Name: UL Approved Customized PCB Circuits with Assembly Service
Brand: all-electronics-online.com
SKU: 810657975
Availability: InStock
Rating: 4.7 (46 reviews)

Price:	US $ 1.09-1.34/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Type:	Rigid Circuit Board
Dielectric:	FR-4
Material:	Fiberglass Epoxy Resin + Polyimide Resin
Flame Retardant Properties:	HB

Product Description

UL Approved Customized PCB Circuits with Assembly Service

Why Choose Us !!
Our services
*EMS-Electronic Manufacturing Service
*PCB Supply and Layout
*PCB Assembly on SMT, BGA and DIP
*Cost Effective Components Sourcing
*Fast Turn Prototype and Mass Production
*Box Build Assembly
*Engineering Support
*Tests(X-ray, 3D Paste Thickness, ICT, AOI and Functional tests)
*Logistics and After-sales Service

Our Bare board Manufacturing Capabilities

1	Layers	Single Sided,2 to 18 Layer
2	Board material type	FR4,CEM-1,CEM-3,ceramic substrate board, aluminum based board, high-Tg, Rogers and more
3	Compound material lamination	4 to 6 layers
4	Maximum dimension	610 x 1,100mm
5	Dimension tolerance	±0.13mm
6	Board thickness coverage	0.2 to 6.00mm
7	Board thickness tolerance	±10%
8	DK thickness	0.076 to 6.00mm
9	Minimum line width	0.10mm
10	Minimum line space	0.10mm
11	Outer layer copper thickness	8.75 to 175µm
12	Inner layer copper thickness	17.5 to 175µm
13	Drilling hole diameter (mechanical drill)	0.25 to 6.00mm
14	Finished hole diameter (mechanical drill)	0.20 to 6.00mm
15	Hole diameter tolerance (mechanical drill)	0.05mm
16	Hole position tolerance (mechanical drill)	0.075mm
17	Laser drill hole size	0.10mm
18	Board thickness and hole diameter ratio	10:01
19	Solder mask type	Green, Yellow, Black, Purple, Blue, White and Red
20	Minimum solder mask	Ø0.10mm
21	Minimum size of solder mask separation ring	0.05mm
22	Solder mask oil plug hole diameter	0.25 to 0.60mm
23	Impedance control tolerance	±10%
24	Surface finish	Hot air level, ENIG, immersion silver, gold plating, immersion tin and gold finger

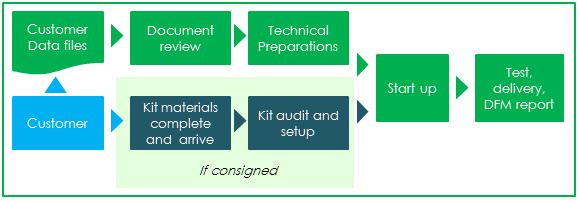

Our Customized PCB Circuits Manufacturing Process

We are offering customized PCB circuits manufacturing and assembly services to following big customers all over the world

If you have any questions about customized PCB circuits , feel free contact us any time.

As a service-leading PCB manufacturing and PCB assembly (PCBA) partner, NOD Electronics strives to support international small-medium business with 10+ years engineering experience in Electronic Manufacturing Services (EMS). Our headquarter is located in Guangzhou, China. We have 10, 000 square meters plant, 287 employees and 42 engineers, monthly capabilities of 15, 000 square meters PCB design & fabrication and 80 million spot SMT. We were approved by ISO9001-2008, TS16949, UL, CE, RoHS.

We strive to be your rightest partner in electronic manufacturing serivce with a commitment from creative team members. Do you agree that every electronic product has its soul, bearing the designer's product concept, just like the Apples and Steve Jobs? Electronic product is a bridge between the customer and designer rather than a cold and ruthless object. Although they have no verbal communication, they have soul connection in between.

So, we perform and create a bridge, which turns your concept or design into a product and present in front of the customers by offering reliable manufacturing solutions and engineering support, including New Product Introduction (NPI), Printed Circuit Board (PCB) design, Printed Circuit Board Assembly (PCBA), Casing (plastic & mental) solutions.
