| Prod Model: |
LP-20-C02PE-01-001, LP-20-J02PP-01-001 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cable Specification: |
2.5mm-4mm2/14-12AWG |
| Diameter Range: |
Od8-12mm |
| Contact Resistance: |
Od2.7*2 |
| Rated Current: |
20A |
| Operating Voltage: |
500V |
| Protection Level: |
IP65/IP67 |
Product Description
Product Information:
LP-20 series electrical connectors:
1. multi-core design styles (2/3/4/5/7/9/12 pin);
2. Zinc alloy material against high frequency electromagnetic &radio interference;
3. gold-plated contacts, high-strength corrosion resistance;
4. electrical conductivity effectively deal with temperature rise;
5. PBT shell, stable electrical performance, anti-explosion;
6. unique docking design (extends infinitely long);
7. rated current: 20A;
8. protection level: IP65/ IP67 waterproof;

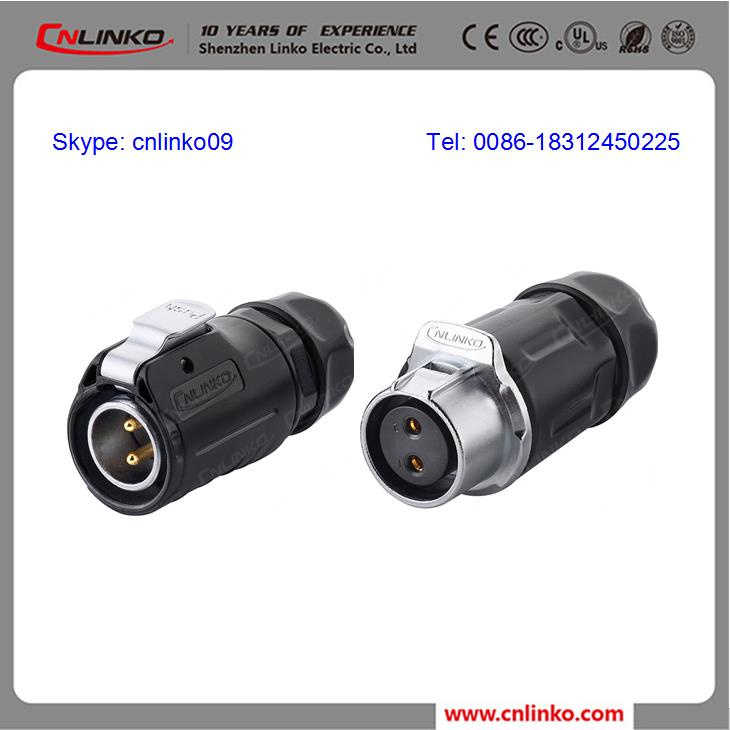

9. CNLINKO Provided Newest Product LP-20 2 Pin Female Male Power Cord Connector.
Product Datasheet:
LP-20-C02PE-01-001, LP-20-J02PP-01-001 Male Plug &Female Socket |
| Specifications: | |
| Connecting mode: | plug/ unplug |
| Protection level: | IP65/ IP67 |
| Cable specification: | 2.5mm2~ 4mm2/ 14~12 AWG |
| Diameter range: | Φ8mm ~ Φ12mm |
| Contact diameter×Qty: | Φ2.7×2 |
| Current rating(A): | 20A |
| Operating voltage(AC.V.rms): | 500V |
| Withstand voltage(AC.V)1min: | 2500V |
| Contact resistance: | <1mΩ |
| Insulation resistance: | >500MΩ |
| Durability: | ≥500 mating &unmating cycles |
| Temperature rating: | -40°C~80°C |
| Method of connecting cable: | Pressure &Solder |
| Flammability rating: | UL94-V0 |
| Temperature rise: |
20A contact temperature below 30°C;
25A contact temperature below 40°C;
30A contact temperature below 50°C |
| |
| Material: | |
| Shell &insulated parts: | High performance engineering plastics |
| Hardware metal: | Zinc alloy(pearl hard chromium) |
| Contact pin: | Copper alloy(gold-plated) |
| Spring: | Stainless steel |
| Sealing: | Silica gel |
| | |
| Main characteristics: | |
| - Sealed against dust and fluid (IP65/IP67) |
| - Vibration resistance,impact resistance,stretching resistance |
| - plug/ unplug for more than 500 times, socket with metal cover |
| | |
| Application industries: | |
| - Stage equipment | - The smart grid |
| - Medical equipment | - Server |
| - Solar energy equipment | - Ship equipment |
| - Electric power equipment | - Vehicle equipment |
| - Communications equipment | - Heavy machinery |
