UL Approved Mc4 Solar Socket Connector
| Price: |
US $ 0.9/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
SY-C4D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Insulation Material: |
PPO |
| Rated Voltage: |
TUV 1000 DC/ UL 600V DC |
| Test Voltage: |
6kv(50Hz,1min) |
| Contact Material: |
Copper, Tin Plated |
| Contact Resistance: |
Less Than 0.5 M Ohm |
| Degree Of Protection: |
IP67 |
| Pollution Degree: |
2 |
| Protection Class: |
Class II |
| Flame Calss: |
UL94-V0 |
| Ambient Temperature Range: |
-40 ~ + 90. |
| Type: |
Socket Terminals |
| Material: |
Copper |
| Application: |
Solar Power System |
| Certification: |
TUV |
| Brand: |
Sy.PV |

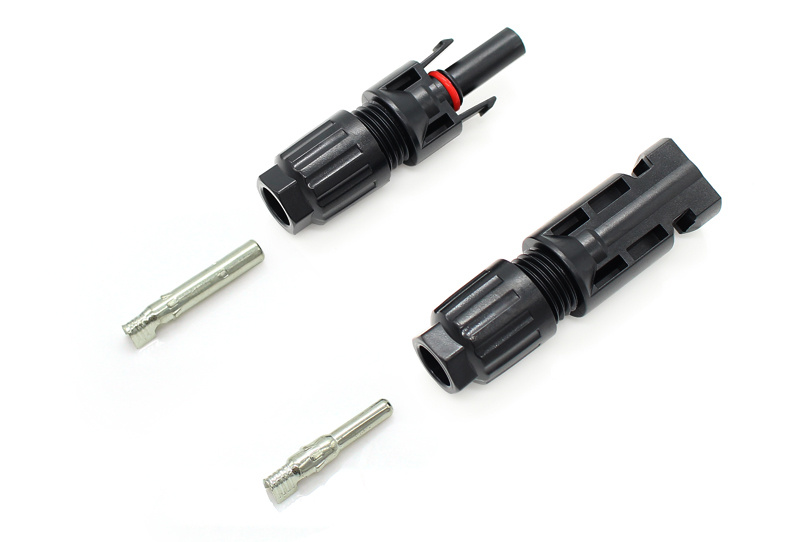

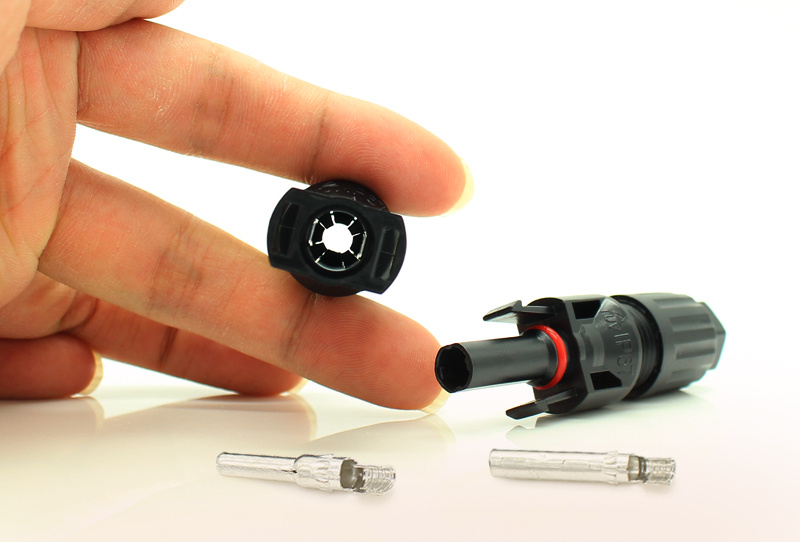

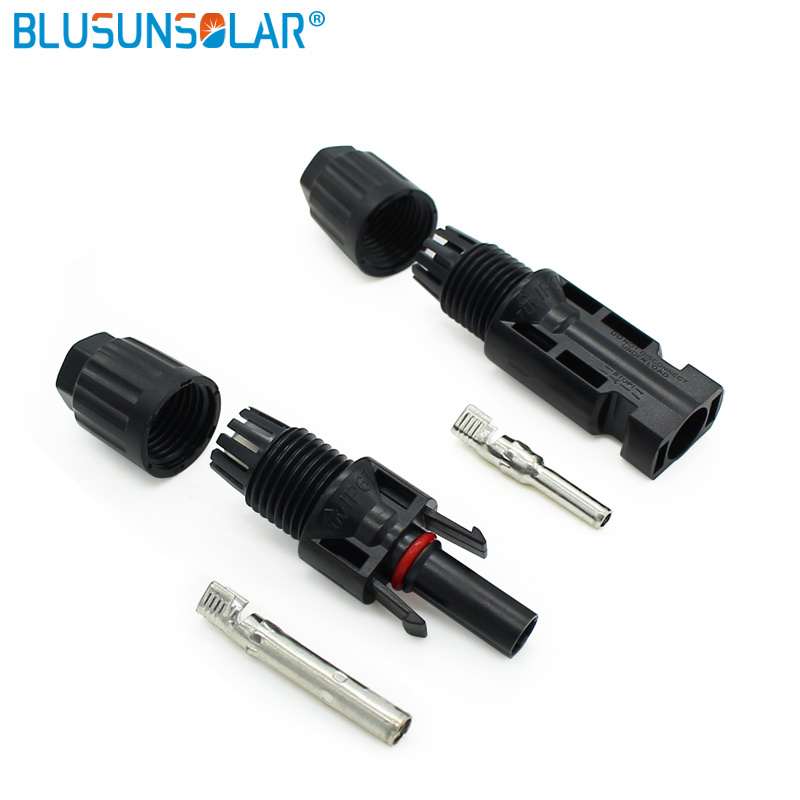

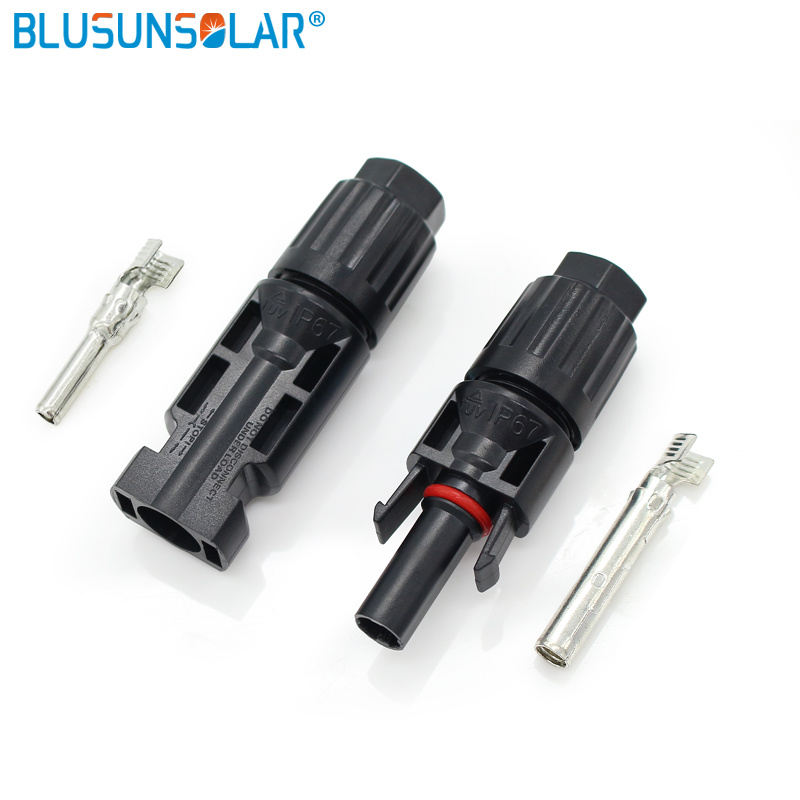

Product Description
Suitable to solar cable, 2.5 mm2, 4mm2 and 6mm2
Easy , quickly and reliable connection of the solar cables to the photovoltaic system (solar panels, converters).
Technical data:
1.Connector adopts touch of reed with inne-knob type.
2.Auto-lock enable connection more easy and reliable.
3.Popular figure suit most of field installation.
4.Quickly to connector.
5.Water proof and prevent dust.
6.Long life. CHARACTERISTICS:
Insulation material: | PPO |
| Rated Voltage | TUV 1000 DC/ UL 600V DC |
| Test voltage | 6KV(50Hz,1Min) |
| Contact material | copper, tin plated |
| Contact resistance |
less than 0.5 m ohm |
Degree of protection | IP68 |
| Pollution Degree | 2 |
| Protection class | Class II |
| Flame calss | UL94-V0 |
| Plug Force | less than 50N |
| Withdrawal force | more than 50N |
| Ambient temperature range | -40 ~ + 90. |
| Compatible cable cross sections Solar cable | 2.5mm² ,4.0 mm² and 6.0 mm² (14 awg,12awg,10awg) |
| Pin dimention | 4.0mm |
LEADER TECHNOLOGY(SHENZHEN)CO.,LIMITED is a new energy enterprise, located in SHENZHEN, China, specializing in R&D, manufacturing and marketing solar connectors, Waterproof cable connector, PV junction boxes, solar cable and PV assembles etc., with an integrated utilization from solar modules, solar energy appliance to on/off-grid solar power generation systems, and by the products R&D, mold design, production, sales through-train service. With advanced technology, our products have been authorized by TUV Rhineland, UL, CE successfully.
LEADER Company adheres to self-R&D, strict detection standards and perfect detection system, modernization management approaches and excellent talent teams, hold the belief of "survive for excellence, development for innovation", insist on being professional, large-scale brand. Customer satisfactionProvide customers with effective solutions timely based on market demands. Quality foremostAchieve zero defect product quality by overall participation and all-out effort in cooperation with each other Technology innovation Improve market competition by constant innovation and new technology. Win-win situation Create the WIN-WIN situation with suppliers, customers and employees by enhancing productivity and constant process improvement.
our sevices:Upon receipt of our products, if you are not satisfied with the quality or concerned, you can return it within 3 days after receiving our products , but only if products need to keep intact and original; any returns arising from the cost of freight and customs , will be borne by the buyer, buyer should be responsible to assume, otherwise, we have the rights to refuse to refund.
All in all, we believe our quality and service will satisfy your needs, we do not wish to see similar things happen, but onece them occurred, please contact us immediately, we will make every effort to resolve the problem and make you satisfied at the first time.
We will give you a best service.
1) Reply inquiry within 24 hours.
2) Answer your detailed question.
3) Freight forwarder: faster, safer,and convenient.
4) Please kindly inform us which item you are interested in so that the reasonable price could be provided soon. | Business Type | -Manufacturer
-Exporter |
| Export Percentage | - 85 percent |
| Year Established | - 2008 |
| Registered capital | - 10,000,000 |
| Certificate | - CE
- Rosh
- TUV
- UL
- ISO9001 |
| Primary Competitive Advantages | - Professionalism
- Quality Test
- Equipment
- Reliability
- Fast response
- Totally Solution
- Technical Support |
| No. of Total Staff | - 100 to 200 |
| Product Range | - Solar Connector
- Waterproof cable connector
- Solar junction box
- Solar Cable
- Industry Control & Protection |
