UL Approved Split Core Current Transformer

Name: UL Approved Split Core Current Transformer
Brand: all-electronics-online.com
SKU: 790772665
Availability: InStock
Rating: 4.3 (51 reviews)

Price:	US $ 2-8.3/Piece
Min Order:	100/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	T10-T36
Color:	Black
Accuracy:	Within 1%
Size:	10A-600ka
Output:	Customized
Application:	Electronic
Type:	Current Transformer
Phase:	Single

Product Description

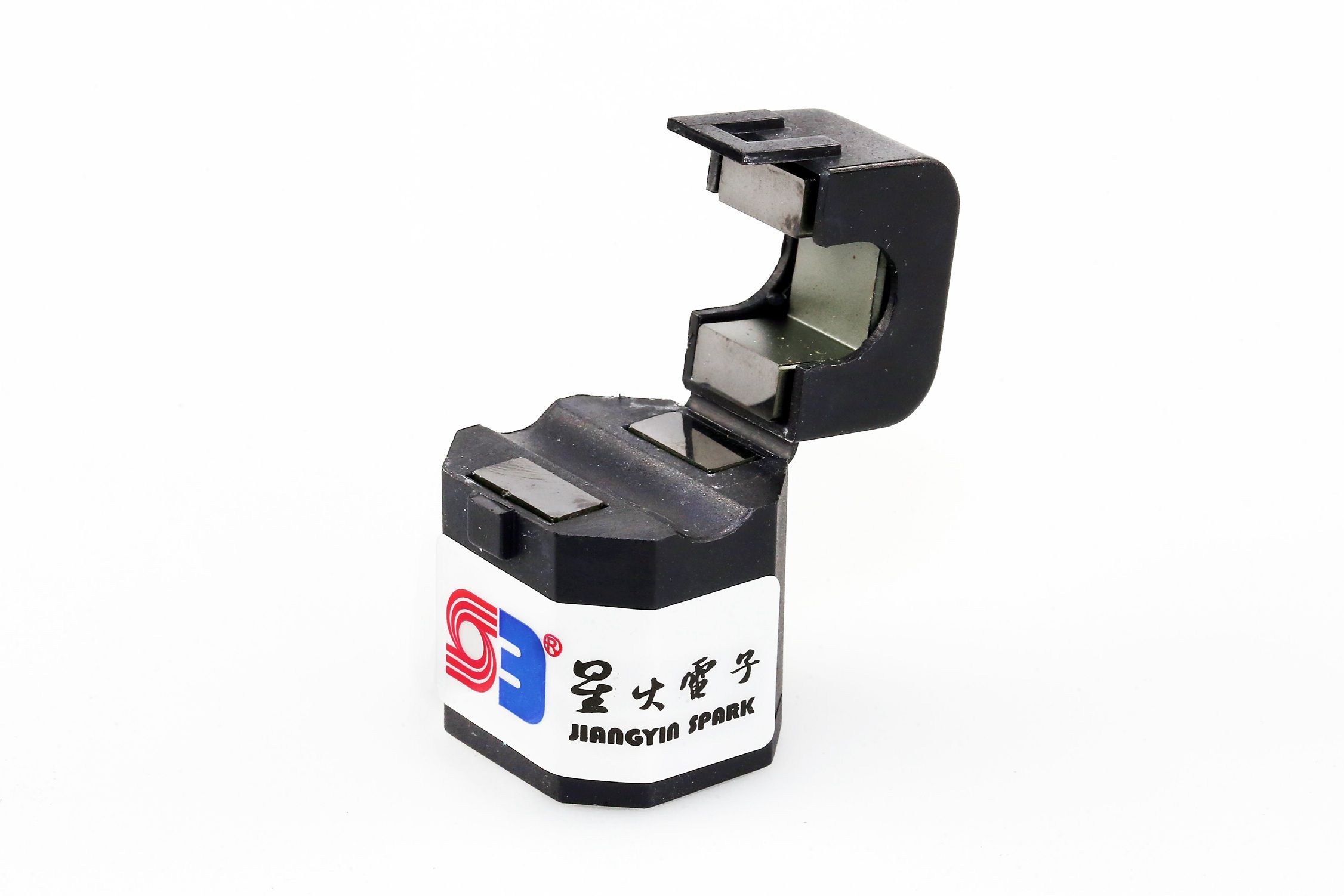

XH-SCT-T10 Split Core Current Transformer

SPECIFICATIONS :
1,Rated Voltage:0.66KV
2,Insulation Voltage:2KV
3,Rated Frequency:50HZ or 60HZ
4,Operating Temperature:-15ºCto 60ºC
5,Flame resistance:UL94-V0

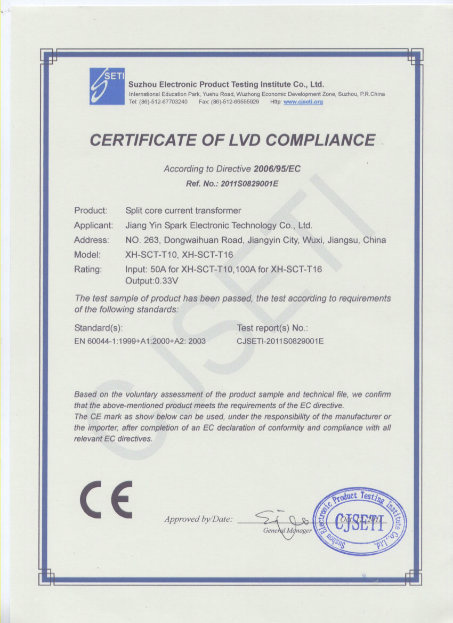

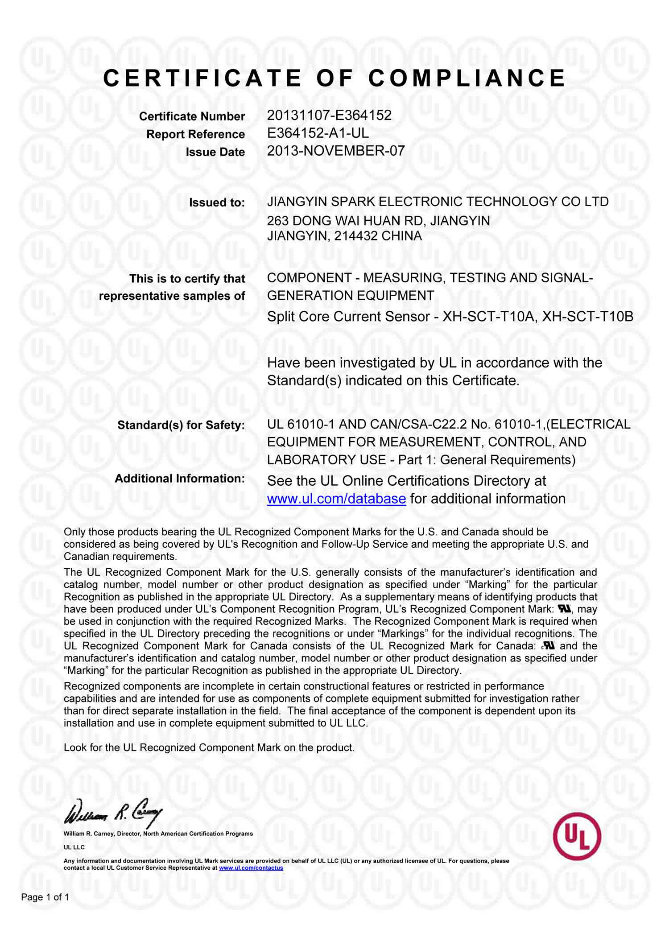

6,Certificates:CE,UL

FEATURES:
1,Small cost
2,Split core design ,Easier installation
3 Build diode ,no high voltage danager

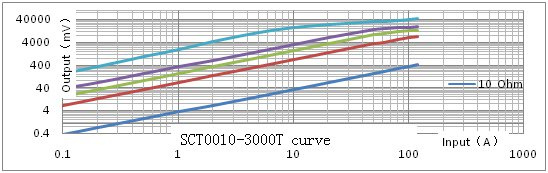

4,Good linearity at very low current

PARAMETERS

Model	Input(A)	Max currnet(A)	Output
XH-SCT-T10A	0.2-80AAC	100AAC	0-30mArms/0.333VAC /0-3 VAC
XH-SCT-T10 A

Why choice split core current transformer from Jiangyin spark?
CE UL ETL, have good reputation in the market.
Our 60A/0.333V split core ct's accuracy can catch 0.3%, and it's price is the lowest on the market.
We still have very low current split core ct, 5A/0.333V, accuracy can reach within 0.5%.
Since 1995, have rich experience, 4-20mA/0.333V/0-10V/0-5V output we all have.

Other T type of split core current transformer:

Model	I.D.	Ratio	Rated Amps	Accuracy
XH-SCT-T10	10mm	3000:1	0-80A	0.5, 1.0
XH-SCT-T16	16mm	3000:1	0-120A	0.5, 1.0
XH-SCT-T24	24mm	3000:1	0-300A	0.5, 1.0
XH-SCT-T36	36mm	3000:1	0-600A	0.5, 1.0
XH-SCT-T70	70mm	200:1	0-1000A	0.5
Special T10	10mm	3000:1	0-5A	Within 0.5

USA 0.333v split core current transformer:

Model	I. D.	Rated Amps	Output	Accuracy	SIZE (mm )
Model	I. D.	Rated Amps	Output	Accuracy	A	B	C	D	E
XH-SCT-0750	0.75" (19.1mm)	5, 15, 30, 50, 70, 100, 150, 200	0.333V	1.0	51.6	54.1	16.6	19.1	18
XH-SCT-1250	1.25" (31.8mm)	70, 100, 150, 200, 250, 300, 400, 600		1.0	82.3	85.3	26.4	32	32.3
XH-SCT-2000	2.00" (50.8mm)	400, 600, 800, 1000, 1200, 1500		1.0	120	125	29.6	52.5	52
XH-SCT-3000	3.00" x 5.00" (76.2mm x127mm)	1000, 1200, 1500, 2000.3000		1.0	145	199	30.5	76	130
