UL AWM 3549 Silicone Rubber Insulated Wires

Name: UL AWM 3549 Silicone Rubber Insulated Wires
Brand: all-electronics-online.com
SKU: 638151245
Availability: InStock
Rating: 4.3 (55 reviews)

Price:	US $ 0.1/Meter
Trade Terms:	FOB,CIF,EXW
Min Order:	2000/Meter
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	Optional
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Nominal Voltage:	600V
Type:	Insulated
Conductor Type:	Stranded
Conductor Material:	Copper
Insulation Material:	Rubber
Certification:	RoHS
Application:	Electrical Equipments
Range Of Application:	Electric Equipments, Industrial Machines
Brand:	Yuanda

Product Description

Rated voltage: 600V
Temperature range: -60-+200deg. C
Testing voltage: 2.5KV
O. D. Tolerance: +/-0.10mm
Conductor: 28-18AWG tinned copper or bare copper
Insutation: Silicone rubber
Shield: Copper wire braid
Sheath: Sillicone rubber
Colors: Optional
Test by UL VW-1 and CSA FT-1
Use: Internal wirings of electric and electronic device, which is exposed to high temperature
Certificate No: UL E216252 CSA 229260

Conductor				Insulation		Shield		Sheath
Spec AWG	Section mm 2	Structure No. /D	Diameter mm	Thickness mm	Outer diameter mm	Wrapping No. /D	Outer diameter mm	Thickness mm	Nominal outer diameter mm	Max outer diameter mm
28	0.0887	7/0.127	0.381	0.76	1.90	54/0.11	2.12	0.76	3.64	3.90
26	0.1407	7/0.160	0.480	0.76	2.00	57/0.11	2.22	0.76	3.74	4.04
24	0.2266	7/0.203	0.610	0.76	2.18	60/0.11	2.25	0.76	3.77	4.07
22	0.3710	39/0.110	0.800	0.76	1.95	54/0.11	2.07	0.76	3.69	3.99
20	0.5228	26/0.160	0.985	0.76	2.09	60/0.11	2.31	0.76	3.83	4.13
18	0.8244	41/0.160	1.280	0.76	2.38	67/0.11	2.60	0.76	4.12	4.45

Jiangyin Yuanda Electrical Material Co. Ltd. (Wuxi yuanda Electrical Materical Co. Ltd) is locked in Jiangyin, the most developed city in China, Jiangsu Province. Facing Taihu Lake in the south and bordering Changjiang River in the north, it is well located and easy of access as Huning and Xicheng Freeway Stretching over the district. It's about 100 km from Shanghai Pudong Airport and Nanjing Lukou Airport and it is near Wuxi and Changzhou Airport too. We believe that our unique advantages and convenient transportation could be your ideal business choice.

Our main products include:

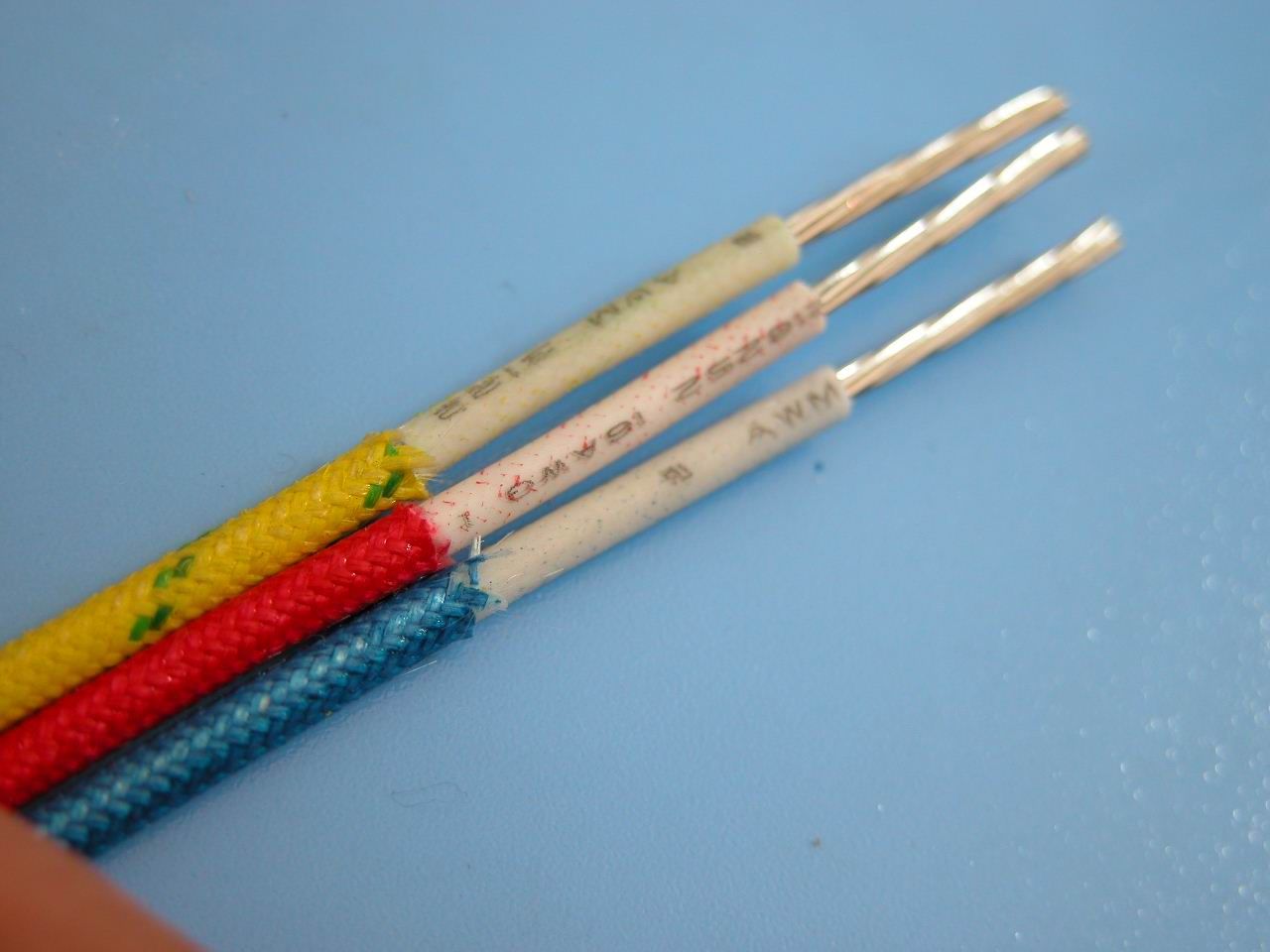

1. Heat-resistant silicone rubber wires which are widely used in household appliances and electronic instruments such as UL3122, UL3135, UL3512 and VDE HO5S-K, VDE HO5SJ-K, CCC245IEC, H3Cable and teflon wires such as UL1330, UL1332, UL10362 and so on.

2. Steel industry heat-resistant cables applicable to aviation, navigation and such as YG, H05SS-F.

3. JG and JYJ cables applicable to electric machines metallurgy, engines, transformers and nuclear Powers.

4. Wires such as GXL, AEX and SGR used in automobiles.

5. Coaxial cables such as RG and RF series used for communications in cell phones, computers 3G and military industry.

We have abundant technical strength, advanced equipments, functional testing facilities and good quality-ensuring systems and have acquired the certificates of ISO9001-2000 and ISO/TS16949: 2009 for Automotive wires and tubes. Our main products, silicone rubber insulated wires and cables Teflon sires, silicone glass fiber pipers, rubber-inside and fiber-outside pipes are certified by UL, VDE, CSA and CCC and all our products can meet the requirements of RoHS.

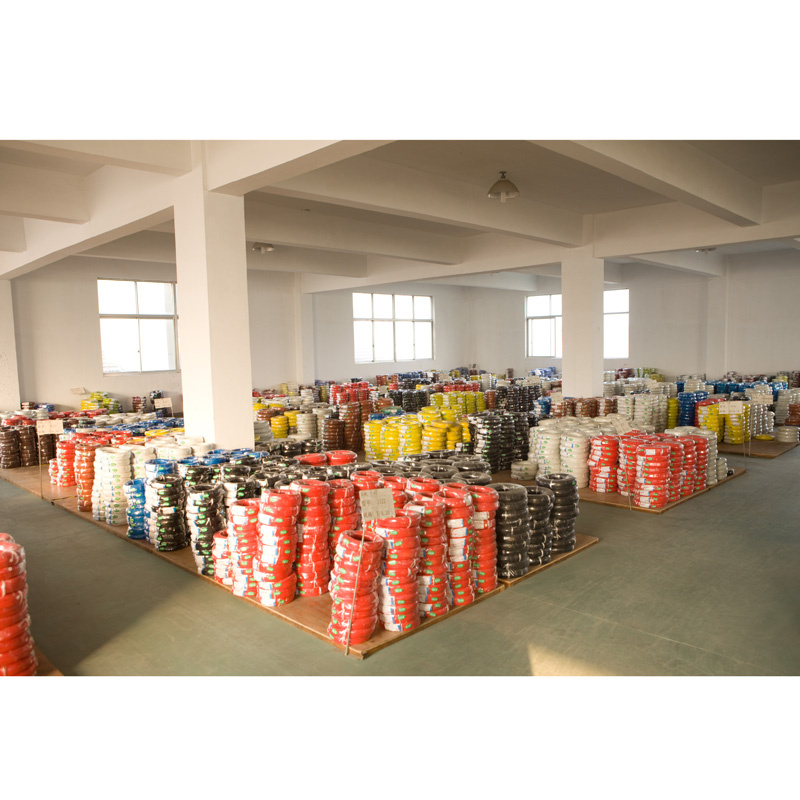

Our annual output of heat resistant sleeve is 120, 000Km, all kinds of high temperature cable is 8, 600, 000Km, RF coaxial cable is 150, 000Km, and we can process all kinds of nonstandard cable according to the requirement of clients. With the excellent products, punctual delivery, we'll be your ideal partner.

With high qualify products, reasonable price and perfect after-sales service, we believe that we can achieve win-win situation with you. Looking forward to your cooperation!
