GUANGDONG SIMPACT TECHNOLOGY CORP. >> UL, CE, RoHS Approved Telephone Cable (CE)

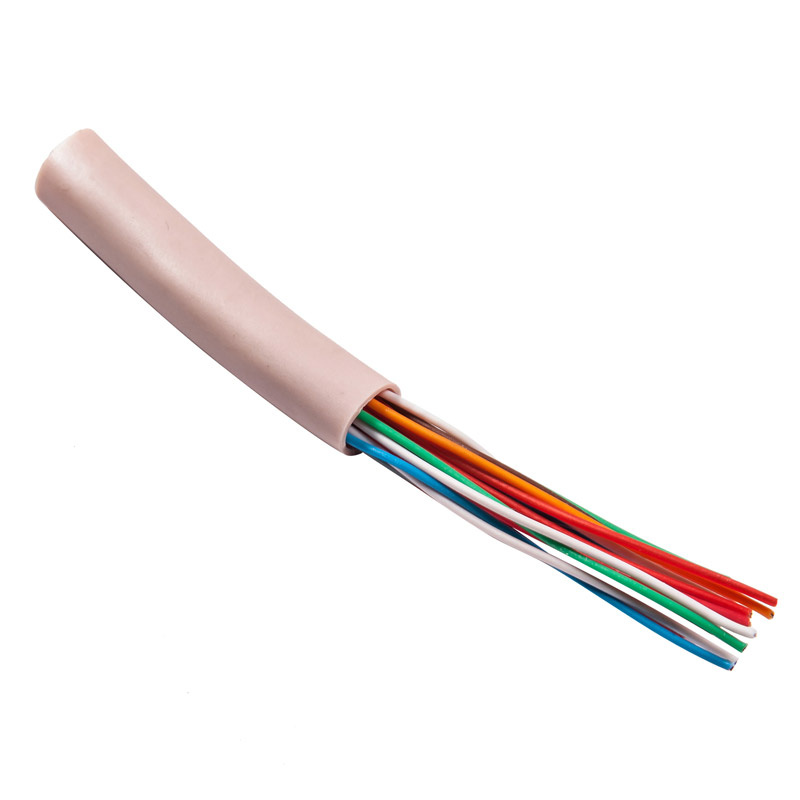

UL, CE, RoHS Approved Telephone Cable (CE)

UL, CE, RoHS Approved Telephone Cable (CE)
Price: US $ 58/Roll
Trade Terms: FOB,CIF,DDP
Min Order: 50/Roll
Pay Type: L/C,T/T,D/P,Western Union
Prod Model: HYV
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Conductor Od: 0.48
Insulation: HDPE
Jacket: PVC
Operation Temperature: -20~60 Degrees
Flame Text: Cm
Application: Fiber Optic Cable
Conductor Material: BC/CCS/CCA/TC/CU/CCAG
Cover Material: PVC
Type: Cat 3
Certification: CE, RoHS
Model: Hyv
Brand: Simpact

Product Description

Specifications
1, Solid BC conductor;
2, HDPE insulated;
3, Black PE jacket;
4, CE, RoHS & ISO9001: 2001 certified;
5, OEM is acceptable.

Specification of 25 pairs outdoor telephone cable
1) CONDUCTOR
* Raw material of the conductor: Solid bare copper
* Conductor Dia.: 0.48± 0.003mm (23AWG)
2) INSULATION
* Raw material of the conductor: HDPE
* Quantity: 4 twisted pairs
Blue/white-blue; Green/white-green;
Orange/white-green; Brown/white-brown;
* Insulation Dia.: 0.91± 0.005mm
* Average thickness: 0.215 mm
* Minimum point thickness: 0.2125mm

3) Separator: PE tape
4) Cable tie: PP
5) Rip cord
6) SHEATH
* Sheath material: PE
* Nominal Dia.: 13.0 ± 0.2mm
* Average thickness: 1.0mm
* Minimum point thickness: 0.90mm

Separator:PE tape
Nominal Dia13.0 ± 0.2mm
Average thickness1.0mm
Minimum point thickness0.90mm

Part Number5P-2400P  Telephone Cable(0.4)5P-1200P  Telephone Cable(0.5)
Conductor Diameter(mm)0.4±0.010.5±0.01
 MaterialBare CopperBare Copper
 TypeSolidSolid
Dielectric(Insulation)Diameter(mm)0.7mm0.9±0.01
MaterialSolid PESolid PE
CORE WRAPPING Materialplastic tapeplastic tape
shield( for optional) MaterialAluminium Tape or  Steel TapeAluminium Tape or Steel Tape
Thickness(mm)0.22-0.250.22-0.25
Jacket(sheath)Diameter(mm)7.5-708.5-65
Thickness(mm)≥1-3.2≥1-3.2
MaterialLDPE/PVCLDPE/PVC
Armored ( Steel tape)For optional
Double JacketFor optional
Messanger ( Aerial)For optional
Conductor  Resistance(ohms/km )≤147≤92
Insulation resistance(Gohms*km )≥10≥10
Mutual capacitance(nF/km )50±250±2
Capacitance Unbalance(Pf/km)Pair-Pair≤145≤145
Pair-Ground≤750≤750
Dielectric StrengthPair-PairDC 1000V/1MinDC 1000V/1Min
Pair-GroundDC 3000V/1MinDC 3000V/1Min
Attenuation150kHz(dB/km)≤12.1≤9.0
1024kHz(Db/km)≤27.3≤22.3
Number of Pairs5-24005-2400
Impedance (ohms )100100
Weight (kgs/km)60-750075-7500
Operating Temperature Range(ºC)-50 to 60-50 to 60
package305-4000meters/roll305-2000meters/roll
Guangdong Simpact Technology Corp. Is located in Huadu District, Guangzhou Overseas Chinese Science and Technology Industrial Park, a land area of 90 acres, 50.08 million yuan of registered capital of the company, has a staff of 500 people. Is a research and development, production and sales in one of the digital communication cable manufacturer specializing in the production and sales of the network wire, communication wire, the production capacity and the largest in the forefront of the industry in the province, China Telecom, China Unicom, China Mobile Communications co-production supplier of wire, the current annual turnover of over $ 500 million annual tax amount of thousands of yuan.

Products comply with ISO9001-2008 standard certification, copper, fiber products by UL U. S. Federal certification, the European RoHS certification, CE certification and national Theil, the technical indicators meet the requirements, "Simpact" brand by China' S industry and commerce administration trademark Office registered the prestigious both at home and abroad.

Simpact has branches and offices in the major cities of Guangzhou, Shenzhen, Beijing, Shenyang, Chongqing, Chengdu, Hangzhou, Shijiazhuang, In addition to the domestic market, but also exported to Europe, the Americas. The company adhering to the "quality first, customer first" business philosophy, in recent years, in the increasingly severe market competition, Simpact excellence, strict quality control, attention to after-sales feedback to ensure the survival of enterprises in the competition in the development of competition, and move forward in the competition.

Work Simpact, the better!
