UL/CE/RoHS/ISO Approved UTP Lszh Cm/Cmr Cat5e Communication Cable

Name: UL/CE/RoHS/ISO Approved UTP Lszh Cm/Cmr Cat5e Communication Cable
Brand: all-electronics-online.com
SKU: 693630605
Availability: InStock
Rating: 4.7 (114 reviews)

Price:	US $ 35-60/Box
Trade Terms:	FOB,CFR,CIF
Min Order:	20/Box
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	Cat5e UTP
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Conductor Od:	0.48+/-0.005mm
Rated Temperature:	-20~60
Insulation:	HDPE
Fulke Test:	Pass
Application:	LAN Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Certification:	UL
Type:	Cat5e
Model:	Hsyv-5e
Brand:	Skton/ Simpact

Product Description

UL/CE/RoHS/ISO Approved UTP LSZH Cat5e LAN Cable

Configuration

1. Conductor: 0.50±0.01mm(24AWG) Bare copper

2. Insulation: 0.90±0.03mm HDPE

3. Cores/Pairs: 8/4

4. Sheath: 5.0±0.3mm PVC (PE, LSZH)

Options: Jelly Compound, Jacket: UV, FR, RoHS complied.

Mechanical Properties:

Elongation	Min. 300%
Temperature Range	-20 up to +75° C
Tensile Strength	Min 1.68kg/mm²

Electrical Properties:

Conductor Resistance	Max. 9.38 ohm/100m
Resistance Unbalance	Max. 2%
Insulation Resistance	150 ohm/KM
Mutual Capacitance	Max. 5600pF/100m
Capacitance Unbalance	Max. 330pF/100m
Impedance	100+/-15 ohm
Spark Test	2000V
Velocity of Propagation	67%

Technical Performance:

	Attenuation	RL	Next	PS Next
(Mhz)	(dB/100M)	(dB)	(dB)	(dB/100m)
1MHz	2.0	20	65.3	63.5
4MHz	4.1	23	56.3	54.2
8MHz	5.8	24.5	52.4	50.5
10MHz	6.6	25	51.3	49.2
16MHz	8.2	25	49.3	47.4
20MHz	9.3	25	48.8	46.9
25MHz	10.4	24	45.3	43.4
31.25MHz	11.7	23	43.0	41.8
62.5MHz	17.0	21	39.2	37.2
100MHz	22.0	20	36.3	34.4

Structure: Single strand bare solid copper wire, PE insulation, two insulated conductors twisted to be one pair, the outside jacket is made of PVC, PE or Low smoke, halogen free materials, and there will be a rip cord inside.

Applicable to network for audio and (ISDN), 10Base-T, 100 Base-T4, 100Base-TX, 100VG-Any LAN, 155Mbps ATM, 622Mbps ATM TPDDI Fast speed and Extreme Networks.

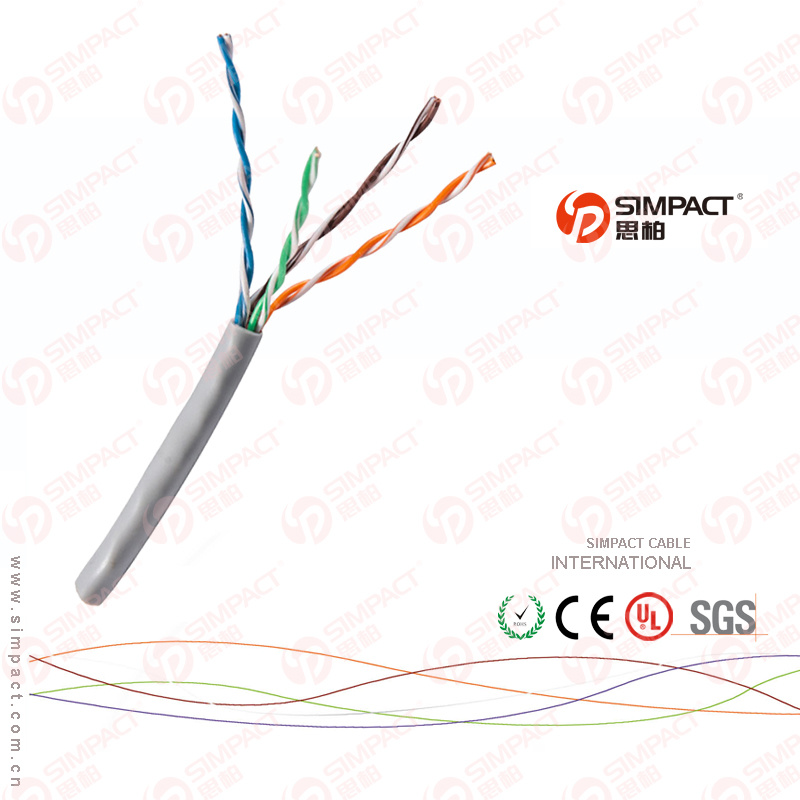

Product Photo:

Company Introduction:

Guangdong Simpact Technology Corp. Is located in Huadu District, Guangzhou Overseas Chinese Science and Technology Industrial Park, a land area of 90 acres, 50.08 million yuan of registered capital of the company, has a staff of 500 people. Is a research and development, production and sales in one of the digital communication cable manufacturer specializing in the production and sales of the network wire, communication wire, the production capacity and the largest in the forefront of the industry in the province, China Telecom, China Unicom, China Mobile Communications co-production supplier of wire, the current annual turnover of over $ 500 million annual tax amount of thousands of yuan.

Products comply with ISO9001-2008 standard certification, copper, fiber products by UL U. S. Federal certification, the European RoHS certification, CE certification and national Theil, the technical indicators meet the requirements, "Simpact" brand by China' S industry and commerce administration trademark Office registered the prestigious both at home and abroad.

Simpact has branches and offices in the major cities of Guangzhou, Shenzhen, Beijing, Shenyang, Chongqing, Chengdu, Hangzhou, Shijiazhuang, In addition to the domestic market, but also exported to Europe, the Americas. The company adhering to the "quality first, customer first" business philosophy, in recent years, in the increasingly severe market competition, Simpact excellence, strict quality control, attention to after-sales feedback to ensure the survival of enterprises in the competition in the development of competition, and move forward in the competition.

Work Simpact, the better!
