UL Ce TUV RoHS 16mm IP67 Flat Latching Push Button Switch

Name: UL Ce TUV RoHS 16mm IP67 Flat Latching Push Button Switch
Brand: all-electronics-online.com
SKU: 791226335
Availability: InStock
Rating: 4.3 (20 reviews)

Price:	US $ 1.41-3/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HBS2GQF-11Z
Mounting Hole Size:	16mm
Switch Rating:	3A/250VAC
Contact Configuration:	1no1nc
Operation Type:	Momentary
Terminal Type:	Pin Terminal
The Front Shape:	Flat Round
Crust Material:	Nickel-Plated Brass and Stainless Steel
Protection Degree:	IP67 Ik09
Mechanical Life:	200000times
Electrical Life:	50000times
Type:	Normal Open
Usage:	Start Button
Kind:	Double Throw Switch
Contact Type:	Type X Contact
Brand:	Hban
Certification:	RoHS

Product Description

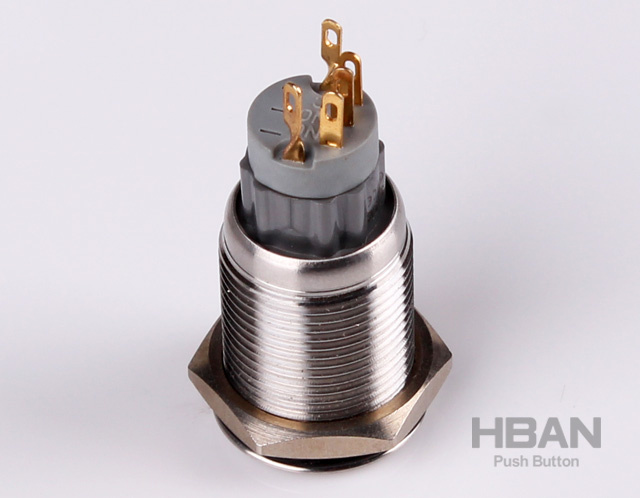

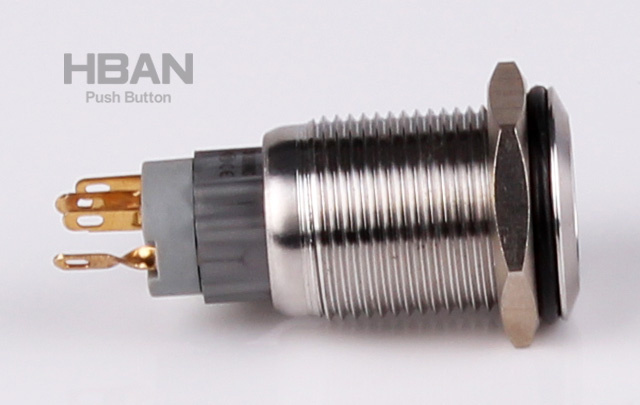

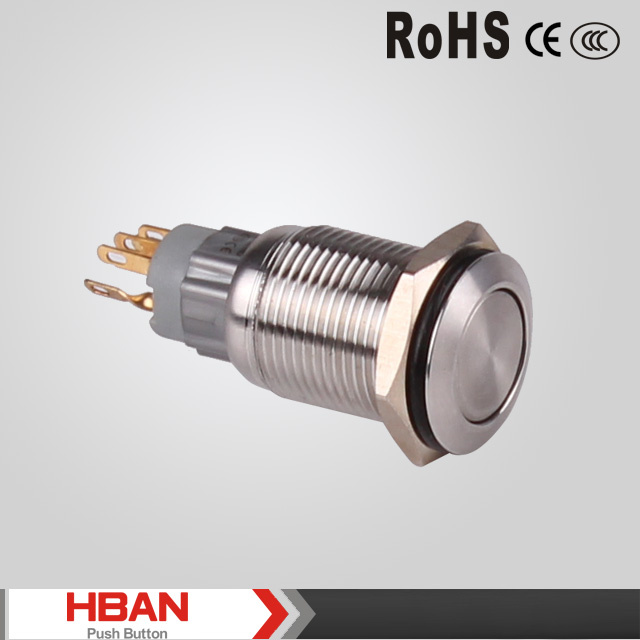

UL CE TUV ROHS 16mm IP67 Flat latching push button switch

1.Specification
Mounting hole size:16mm
Switch Rating:3A/250VAC
Contact confirguration:1NO1NC
Operation Type:momentary/latching
The front shape:Flat Round
The crust material:Stainless steel/Nickel-plated Brass

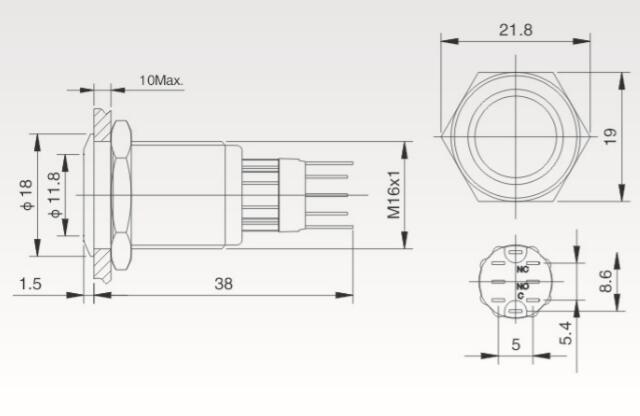

Specification	HBS2GQF
The Front Shape	Flat Round
Terminal Type	Pin Terminal
Switch Type	Single breakpoint snap-action changeover contacts
Switch Specification	3A/250VAC
Contact Resistance	<50mΩ
Insulation resistance	>1000mΩ
Dielectric Strength	2000VAC
Operation Temperature	-20ºC~ 55ºC
Mechanical Life	>200,000 times
Elecrical Life	>50,000times
Panel Thickness	1~10mm
Torque	5-14Nm
Operation Pressure	2.5~ 4N
Operation Stroke	about 1.8mm
Protection Degree	IP67 IK08
Material
Contact	Silver Alloy
Button	Stainless steel Mirror Surfact CD Pattern
Case	Stainless steel or Nickel-plated Brass
Base	PBT

2.Package:

ITEM	PC/BOX	BOX/CTN	PCS/CTN	CBM
HBS2GQ	40	25	1000	435X380X335

3.RAQ:
If you do not know which you need, please reply the following question, we can recommend of you.
1.Mounting hole size:6mm,8mm,10mm,12mm,14mm,16mm,19mm,22mm,25mm
2.Operation type: Momentary or Latching
5.The front shape: Flat, Flat Round, High Round, Concave, Slide, Hyperplane
6.The crust material: plastic, nickel-plated Brass, stainless steel or others
7.Pretection DegreeIP67 IK10

Would you need LED lamp? If yes, please reply the following question.
1.LED type: Ring or Dot
2.LED Rated Voltage: 2v/6v/12v/24v/110v/220v
3.LED color: one color or two, Red, Green, Yellow, Orange, Blue, White

4.Catalogue:
E-catalogue: http://www.cnyangben.cn/yangben/hban/#
Moblie Catalogue:

Yueqing Dahe Electric Co., Ltd. Set up on 2003, is a professional manufacturer of push button switch, indicator lights, signal lamp, buzzers, high-intensity resistance and anti-vandal metal push button switch.

Our products are widely used in machinery, machine tools, electric power, electronics, production control, medical, banks, ships, automation and other industries. We have state-of-the-art production, laboratory equipment and testing apparatus, and insist on the quality of survival, to serve and promote the development quality management service support system, to ensure that the product of the index is quality controlled state.

After years of pioneering spirit, the company has now made a number of patents, the products have passed national mandatory CCC certification, CE certification and RoHS certification, with high quality and cost-effective, favored by the majority of users. We sincerely welcome people to join together to create brilliant.

At present, we cooperate with customers in more than 50 countries and areas. We sincerley hope to cooperate with you. Welcome to become our Distributor in your city.

Tel: 0086-577-62708000 Fax: 0086-577-62708007
