UL Certificate Epr Insulation CPE Sheath 1/0 2/0 Welding Cable in Electric Welding Machine
| Price: |
US $ 0.9/Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
Welding Cable |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Voltage: |
200V |
| Cross Section: |
10mm2-185mm2 |
| Condutor: |
Class 6 Copper Wire or Clad Copper Aluminum |
| Standard.: |
IEC6024 |
| Price: |
Direct Factory Price |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Conductor Material: |
Copper |
| Insulation Material: |
Rubber |
| Application: |
Welding |
| Sheath Material: |
Rubber |
| Certification: |
IEC Ieca |
| Brand: |
Rneda |
Product Description

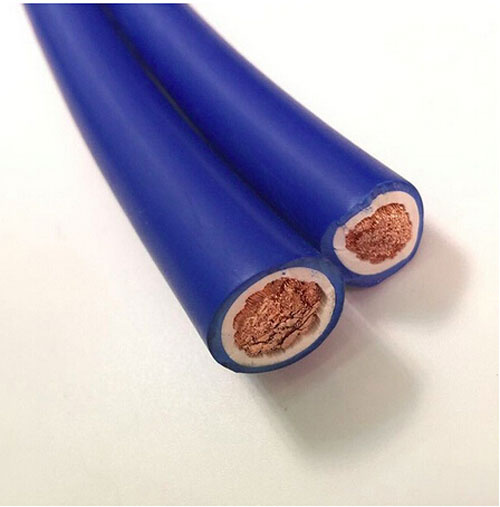

Welding cable:
1.Standard
the welding cable can be produced according to the standard 245 IEC 81,ICEA S-75-381
2.Specific Property for Using
(1).The cable can be used in the connectors of electric weld and pliers of the electrical welding whose toward earth voltage of the low voltage is not more than AC 200 V and the pulsant DC peak value is 400V.
(2).The long-time permissible working temperature of cable is not more than 65.
3 .Name and IEC Standard
(1).Rubber Sheathed Welding Cable 245 IEC 81
(2).Rubber Sheathed Welding Cable 245 IEC 82,which is made of chloroperene or the composite stretchy materials.
4. Conductor Materials: Copper, Tinned Copper
5. Jacket: Rubber
6. Applications: For Welding Machines and so on
7.The general data of the cable 245 IEC 81 and 245 IEC 82
Conductor
Nominal Section (mm2) | Conductive Core | Thickness of
Section Sheath
(mm) | Average Outer Diameter (mm) | 20oC Conductor
Resistance
≤(Ω/km) | Reference Weight
(kg/km) |
Number/Diameter
of Core(mm) | Min | Max | YH | YHF |
| 10 | 322/0.20 | 1.8 | 7.5 | 9.7 | 1.91 | 146 | 153.51 |
| 16 | 513/0.20 | 2.0 | 9.2 | 11.5 | 1.16 | 218.9 | 230.44 |
| 25 | 798/0.20 | 2.0 | 10.5 | 13.0 | 0.758 | 316.6 | 331.15 |
| 35 | 1121/0.20 | 2.0 | 11.5 | 14.5 | 0.536 | 426 | 439.87 |
| 50 | 1596/0.20 | 2.2 | 13.5 | 17.0 | 0.379 | 592.47 | 610.55 |
| 70 | 2214/0.20 | 2.4 | 15.0 | 19.5 | 0.268 | 790 | 817.52 |
| 95 | 2997/0.20 | 2.6 | 17.0 | 22.0 | 0.198 | 1066.17 | 1102.97 |
| 120 | 1702/0.30 | 2.8 | 19.0 | 24.0 | 0.161 | 1348.25 | 1392.55 |
| 150 | 2135/0.30 | 3.0 | 21.0 | 27.0 | 0.129 | 1678.5 | 1698.72 |
| 185 | 1443/0.40 | 3.2 | 22.0 | 29.0 | 0.106 | 1983.8 | 2020.74 |
Established in 1993, Hebei Huatong Wires and Cables Group Co., Ltd covers an area more than 220, 000 square meters, owning more than 420 sets manufacturing equipment and more than 250 sets of testing equipment or apparatus. Our annual production capacity is 3 billion Chinese Yuan. Now there are more than 800 employers in our company, among which more than 150 are technicians. With the continuous efforts from all the employers, Hebei Huatong Wires and Cables Group Co., Ltd has realized great development to become a modern enterprise and one of the comprehensive, large-scale enterprises in domestic wire and cable industry. Our products are widely used in the field of electric power, coal, metallurgy, petrochemical industry, railway, national defense, construction, aviation and other national key projects. We are JV with Furukawa(Japanese company) for rubber serial cable (minding cables, welding cables. Submersible oil pump cables, . )and also JV with Riken(Japanese company) for elevator cables. Our products have extensive influence and good reputation in both domestic and worldwide market, such as the United States, Holland, Italy, Russia, Britain, Australia, New Zealand, Ethiopia, Ghana, Algeria, South Africa, Congo, Middle East and Southeast Asia countries and so on.
Products: Power Cable, Rubber Cable, UL standard building wire cable
Certificates:
Certificate of UL. CE, KEMA, TUV, Bureau Veritas, Lloyd, IEC, GL, SA, NK, KR and "National Industrial Production License", "Certificate of Recommended Enterprises and Products for National Grid", "Adopting International Standard Certificate", and "High-Tech Enterprise Certificate", "Certificate of High Quality Products", "Certificate of Scientific and Technological Achievements", "Qualified Supplier Certificate", "China Classification Society Certificate of Works Approval", "Det Norske Veritas Type Approval Certificate", "Railway Product Certificate", "Safety Certificate of Approval for Mining Products", "National Mandatory Product Certification", "Certificate for China Compulsary Products Certification" and "Practical New-Type Patent Certificate
