| Prod Model: |
Hcdpy324075 |
| Coil Voltage: |
24V, 120V, 240V |
| Color: |
Black |
| Certificate: |
Ce, UL, S, CSA |
| Material: |
BMC |
| Application: |
Refrigeration, Air Conditioning and Heating |
| Delivery Time: |
35 Days After Deposit |
| Electrical Life: |
250,000 Cycles |
| Mechanical Life: |
1,000,000 Cycles |
Product Description

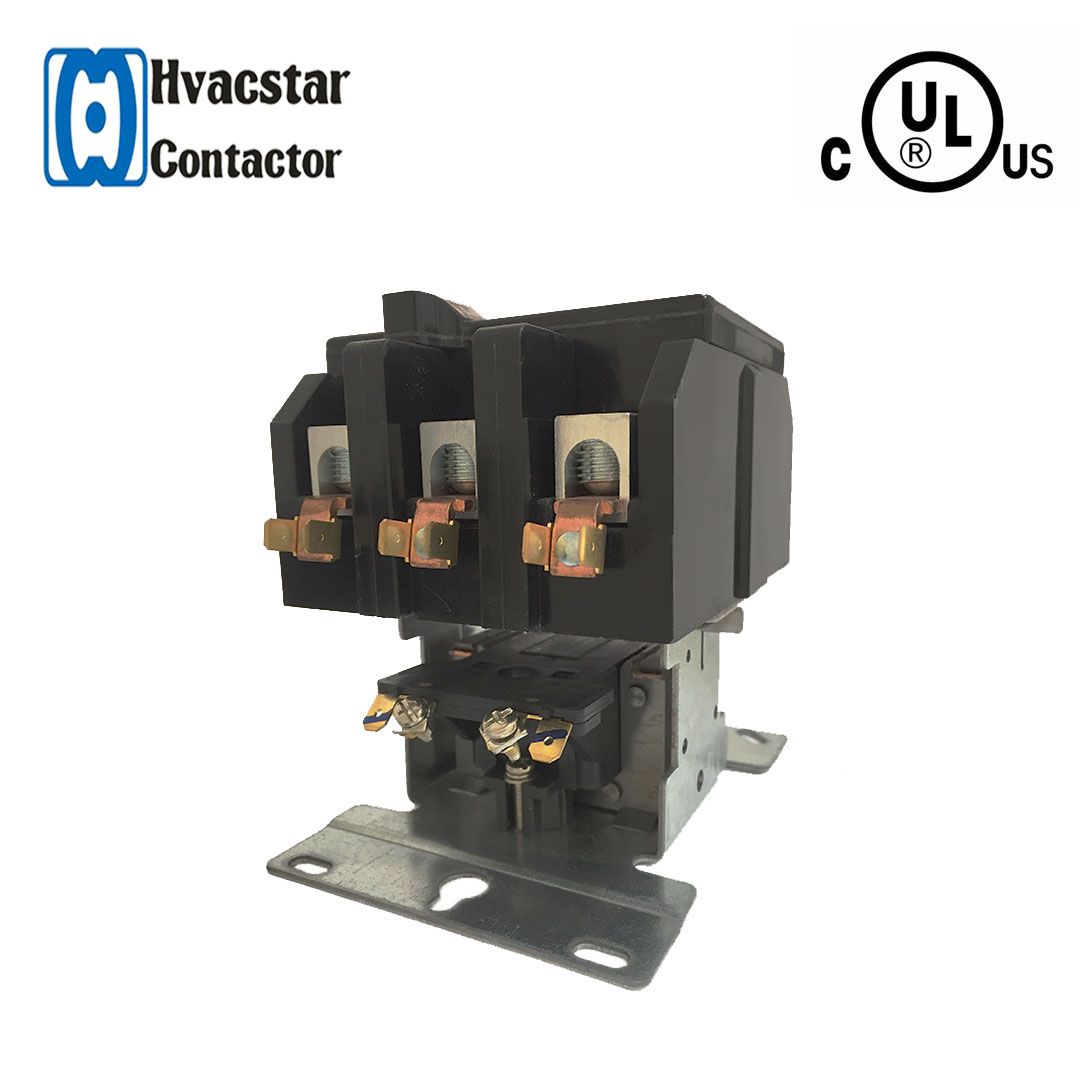

Cooling System Magnetic Contactor 3P 75A Air Conditioner Parts with UL APPROVAL
Specifications:
| FLA | 120V | 240V | 480V | 600V | Non Inductive Amps | Poles |
| Hp | LRA | Hp | LRA | Hp | LRA | Hp |
| 25 | 2 | 150 | 3 | 125 | - | 100 | - | 35 | 2 |
| - | 5 | 75 | 7.5 | 3 |
| 30 | 2 | 180 | 5 | 150 | - | 120 | - | 40 | 2 |
| - | 7.5 | 10 | 10 | 3 |
| 40 | 3 | 240 | 7.5 | 200 | - | 160 | - | 55 | 2 |
| - | 10 | 15 | 15 | 3 |
| Electrical Contact Ratings:20A-90A electrical coil ratings:24-600V life rating,100,000&250,000 cycle options. |
| Options:1,2,3,4 pole fits 24,120,240 and 480 VAC coils wide range of electrical ratings screw, box or pressure plate connections NEMA mounting base. NO/NC end switch kits. |
| Applications:Commonly used for Refrigeration, Air Conditioning and Heating. Also fits for Food service equipment, Vending machines, Compressors,Pumps, Cranes, Hoists,Welding machines,Power supplies,Lighting etc. |
| Replaces:Siemens/45EG10AJA, Fasco/C1S30A, Hartland Controls/HCCY1NQ02AA303,Hartland Controls/HCCY1XQ02AA303 |
Advantages:
High arc-resistant phenolic resin material hold stationary terminals,positions actuator, and magnet/coil assembly.It has much stronger endurance and insulating ability than normal contactors .
The internal construction of the HCDP series is manufactured from engineered compounds to provide excellent mechanical life in the most demanding applications.
Premium Silver Alloy contacts designed for long lifeShock-resistant actuator arms provide mechanical durability Durable Molded Plastic Housing Industry standard mounting plates Compact Design, easy to install .
Features:
Meets The ARI 780/790 Standard
Universal metal mounting plate allows for complete ease of replacement
Long electrical life; tested to 250,000 cycles
Reliable mechanical life; tested to 1,000,000 cycles
EE magnet assembly assures optimal performance without sacrificing power consumption
Superior copper coil
Performance unaffected by mounting position
Flexible termination options suitable for various applications
Dust-free internal constructions
WHY CHOOSE US:
Fast delivery
Competitive price
Good after-service
OEM/ODM available
Continuance service and support
Quality reliability and long product life.
18-year manufacturing&export experience
Attending more than 5 kinds of international exhibition per year
Do business with world famous company
FAQ
Q1: Can I get a sample for testing?
A: Yes, warm-welcomed for sample purchase
Q2: Can I print my logo on the products?
A: Yes, OEM and ODM are available.
Q3: How can I get the after-service?
A: Full-refund polity incase of bad quality.
Q4: Do you have inspection procedures for products?
A: Our products100% self-inspection and testing before packing.
Q6: How about delivery time of the order?
A: 15-20 days after getting deposit.
Q7: How about payment terms?
A: 30% deposit, the rest payment balance against B/L copy .
Contact Us:
| Ms.Betty Hu |
| M:+8618267833685 |
| 24 hours online. Please feel free to contact me. |
Mingguang Hecheng Electrical Co., Ltd., has been working on developing high quality Definite Purpose Contactor since estalished in 2004.We have experience in supplying to Hartland Controls, ABB Controls, Zettler Controls, Fasco, Packard Inc & Supco directly and indirectly.
From the business with the companies mentioned and the help from them, we've established a good process control system including Supplier Evaluation and Choice, Coiling Process& Inspection, General Assembly and Inspection, Packing and Delivery.With support from them and our rich Supply Chain Management (SCM) experiences, we are operating our business successfully.
We take care of all vital aspects so that our customers can focus on their customers.Our experienced engineers/inspectors are involved in all the important steps for quality control during production so that all our exported goods are perfectly in compliance to our customers' requirements.And all the members in our supply chains are selected carefully under our Supplier Evaluation Program established strictly according to ISO9001 system.
If you are interested, please try to contact us and take a try.We shall make you confident that this is the right company you would like to work with.
