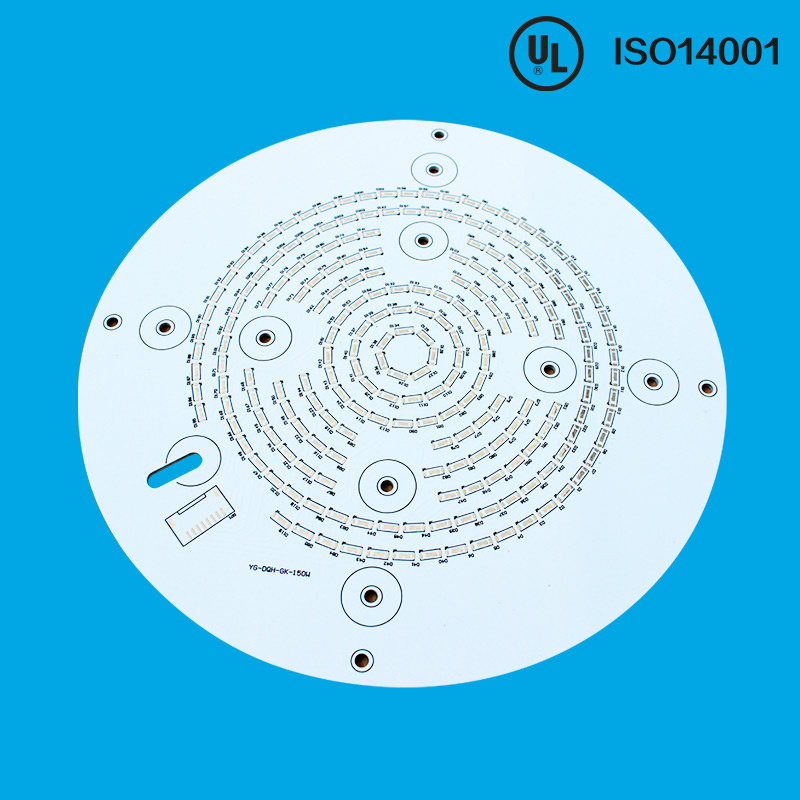

| Prod Model: |
Aluminum PCB-16 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Board Thickness: |
0.8mm, 1.0mm, 1.2mm, 1.6mm, 2.0mm, 2.2mm |
| Thermal Conductivity: |
1.0W/M.K, 1.5W/M.K, 2.0W/M.K, 3.0W/M.K, 4.0W/M.K |
| Ccl Brand: |
Jh, Ccaf.etc |
| Sample Date: |
3-5days |
| Type: |
Rigid Circuit Board |
| Flame Retardant Properties: |
V0 |
| Dielectric: |
FR-4 |
| Material: |
Aluminum |
| Brand: |
DJ&Zapon |
| Application: |
LED Production |
| Processing Technology: |
OSP, Hal Lf |
Product Description
Hangzhou Dejia Electronics has passed ISO9001:2008 Quality System Certification, UL and TS16949 Certification, ISO14001 Environment Certification while our products meet RoHS Directive. We operate under ISO9001:2008 Quality System Certification strictly integrating fine management into every production step to ensure our product quality ahead of others in this field.
Our company manufacture massively by mature technology products as follows: streetlight aluminum PCB, fluorescent lamp aluminum PCB, wash wall light aluminum PCB, spotlight aluminum PCB, bulb light aluminum PCB, tunnel lamp aluminum PCB and other aluminum PCBs. So far our business has reached over ten provinces and cities in China; abroad we have clients from America, England, Germany, Turkey, Malaysia, Russia, Japan, Brazil and many other countries.
In June 2012, our company took the first place to bring out 3D bending aluminum PCB widely used in LED lighting, car lamp, backlight and such areas bringing new revolution. The main consumers of 3D bending aluminum PCB were CREE, GE, Volkswagen, Audi, BOE, Topstar, ETi and such famous enterprises at home and abroad.
Nowadays materials used by our company are from Microtek, Juding, Quanbao, Dupon, Beggs and such high-end materials able to manufacture products with coefficient of heat conductivity from 0.5W to 4.0W and to satisfy clients' needs both at home and abroad.
Alu-PCB(MCPCB)Capability
| No. | Item | Capabilities |
| 1 | Layers | 1-2 Layers |
| 2 | Finished Thickness | 16-134Mil (0.4MM-3.4MM ) |
| 3 | Max. Dimension | 500MM *1200MM |
| 4 | Material | TCB-2AL,CS-AL-88/89,EM-MP,HA80,NRK,JHAF02-1.0,3D Bending,Copper base,DJ-A11 |
| 5 | Finished Thickness Tolerance | ≤1.0MM ±0.10MM -1.6MM ±0.15MM |
| 6 | Min.Line Width&Spacing | 4Mil (0.1MM ) |
| 7 | Copper Thickness | 35um, 70um,1 to 10oZ |
| 8 | Min. Finished Hole Size | 0.95MM |
| 9 | Min. Drill Size | 1.00MM |
| 10 | Max. Drill Size | 6.5MM |
| 11 | Finished Hole Size Tolerance | ±0.050MM |
| 12 | Aperture Position Precision | ±0.076MM |
| 13 | Warp & Twist | 0.75% |
| 14 | Min SMT PAD Size | 0.4MM±0.1MM |
| 15 | Min.Solder Mask PAD | 0.05MM(2Mil) |
| 16 | Min.Solder Mask Cover | 0.05MM(2Mil) |
| 17 | Solder mask Thickness | >12um |
| 18 | Min.Solder Mask Bridge | 0.1MM(4Mil) |
| 19 | Surface Finishing | HAL, HALLeadfree,OSP, Immersion Gold, etc |
| 20 | HAL Thickness | 5-12um |
| 21 | Immersion Gold Thickness | 1-3 Microinch |
| 22 | OSP Film Thickness | ENTEK PLUS HT:0.3-0.5um; F2:0.15-0.3um |
| 23 | V-CUT Angle | 30°,45°,60° |
| 24 | V-CUT Thickness | 0.4-3.4MM |
| 25 | V-CUT Precision | ±0.05MM, Up&Down Cut Deviation
±0.05MM,Residual Thickness ±0.05MM |

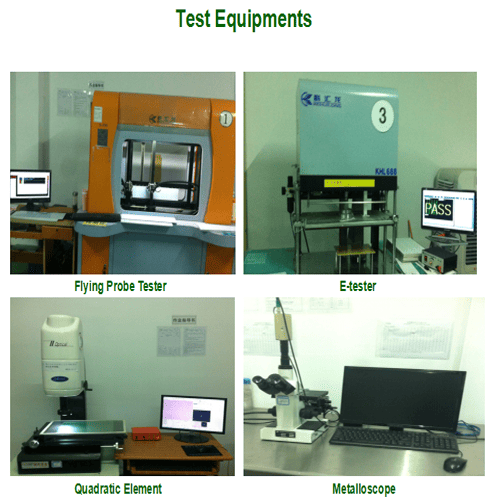

| 26 | Outline Finishing | Routing & Punching; Precision Deviation ±0.10MM |
| 27 | E-test Voltage | 250 ± 5V |
| 28 | E-test Resistance | 10Ω-100MΩ |
| 29 | Peel Strength | 288°, 30s ≥1.4 |
| 30 | Thermal Conductivity | 1.0 to 12W/m.k |
| 31 | Withstand Voltage | AC:1KV to 6.5KV, DC:1KV to 8.5KV |
| 32 | Thermal Stress | 288°,30s Non-Layered No Foaming |
Zhejiang Zapon Electronic Technology Co., Ltd is a professional manufacture of Aluminum base PCB and rigid PCB. Which have the factory of Alu base PCB, double side PCB, multi-layer PCB and PCB assembly etc. We have the ability of produce for any medium and mass quantity. The machine of our factory are on work all day and all night. With Zapon as a supplier, you will have the highest quality, quickest delivery. The detail information of our company are in below:
Establishment: 1997
Registered Capital: US$10M
The area of company: 16800m2
The number of staff: 622
Products:
Aluminum base PCB: One side aluminum PCB and double side Alu-PCB
Double-side PCB: FR-4, CEM-3, High Tg, Halogen Free
Multi-layer PCB: 4 to 22 layers(FR-4, High Tg, Rogers)
Certification: UL, ISO9001, ISO/TS16949: 2002, IS014001 and RoHS
THE CAPACITY OF PRODUCTION: 50, 000SQM. /month
All your inquiry of quotation will be replied within 4-hour. Our engineer will be on your service at any time. And your satisfaction is our biggest wish! ! !
Through the efforts of all staffs. Zapon has stood out among PCB company like us and has became a leading company in this industry. We have won accptance and set up a good reputation in domestic and international markets with the competitive price, the perfect atfter-sales services and the wide support of the suppliers. Our main clients in Samsung, Turkey, Italy, England, Portugal, America etc. Our products meet the military and IPC standards and specifications.
We hope we can be your best partner and offer you the best price with good service Do the biggest assistant for you to reduce your cost.
As long as we have the first cooperation, we believe we will get together, we are confident for establishing a long term friendship once our first cooperation made.
