| Prod Model: |
PLD011/012/013-1SCF503T(S) |
| Dimming Model: |
Triac/Elv Dimming |
| Usage: |
Digital Products |
| Output Type: |
Single |
| Driving Method: |
LED Constant Current |
| Circuit Structure: |
Conventional Step-down Transformer |
| Power Supply Voltage: |
108VAC-305VAC |
| Brand: |
Fsp-Powerland |
Product Description

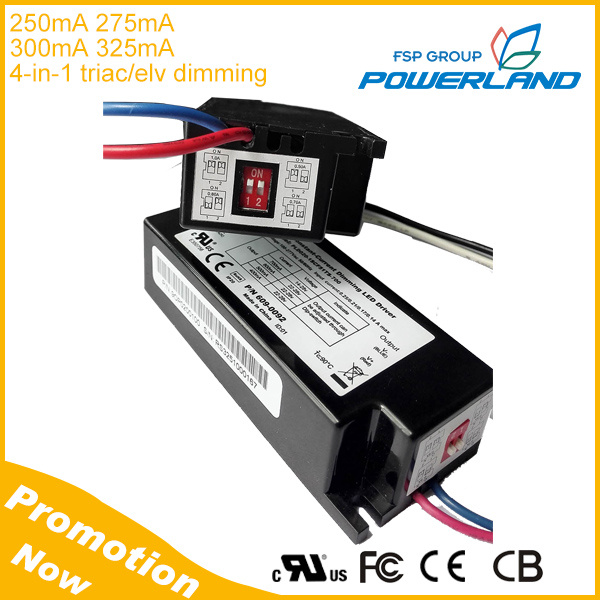

UL Listed 11W-13W Constant Current Led Driver with Triac/Elv Dimming
250mA 275mA 300mA 325mA
4-in-1 setting by dip switch
PLD011/012/013-1SCF503T(S) series offers constant current drivers with wide-range dimmable output current and 90-305Vac universal input.
The output current of this series are up to 250mA/275mA/300mA/325mA with Dip switch current setting(TS version), and designed for Triac/ELV dimming applications. Applications Indoor LED lights
Led Lights with flexible current settings Downlights, spotlights, LED panels
SpecificationsInput
Voltage | Output
Power | Output
Voltage | Output
Current | Efficiency | Max. Case
Temperature | Max. Input
Current | Max. Input
Power | THD | Power
Factor |
| 90~305Vac | 11~13.65W | 34V
…
42V | 0.25A
…
0.325A | 81.5% | 90oC | 0.20A | 18W | <20% | >0.95 |
Compatible with Triac/ELV Dimming
Output current settable with DIP Switches(TS Version)
Universal input voltage:90-305Vac
Safety according to UL1310 & EN61347-2-13
EMC according to FCC part 15 Class B
Lightning, OVP, SCP, OTP & Open Circuit Protection Electrical Specification Electrical Specifications| Model | PLD011-1SCF503T-250 | PLD012-1SCF503T-275 | PLD013-1SCF503T-300 | PLD013-1SCF503T-325 | PLD013-1SCF503TS-325 |
Output Voltage | 34~42V | 34~42V | 34~42V | 34~42V | 34~42V |
Output Current | 250mA | 275mA | 300mA | 325mA | 250/275/300/325mA |
Dimming
| Triac/ELV | Triac/ELV | Triac/ELV | Triac/ELV | Triac/ELV |
Output Power | 11W | 12W | 13W | 13.65W | 13.65W |
Max. Current Ripple | ±30% | ±30% | ±30% | ±30% | ±30% |
Voltage Range | 90~305Vac | 90~305Vac | 90~305Vac | 90~305Vac | 90~305Vac |
Frequency Range | 47~63Hz | 47~63Hz | 47~63Hz | 47~63Hz | 47~63Hz |
Max. Input Current @ 230Vac | 0.17A | 0.18A | 0.19A | 0.20A | 0.20A |
Max. Input Power | 15W | 16W | 17W | 18W | 18W |
Power Factor | >0.95 @ 115Vac & 80~100% load, >0.75 @ 277Vac & 80~100% load |
Efficiency | 81% | 81.5% | 81.5% | 81.5% | 81.5% |
Max. Open Circuit Voltage | 35V | 35V | 35V | 35V | 35V |
THD | <20% @ 120Vac & 80~100% load |
Protections | OVP, OTP, OCP, SCP |
EnvironmentalProtection | UL Dry & Damp |
WorkingTemperature | -20~+60oC |
Max. Case Temperature | 90oC |
Surge Protection | 1kV |
Agency Approbations | UL1310 Class 2 |
Electromagnetic Compliance | Per Title 47 CFR Part 15 Class B |
Ansi Surge Type | 1.2/50μs Combination Wave (w/t 2Ω) |
Isolation | Primary to Secondary: 3750Vac / 10mAMax / 60seconds |
Dimension | 95x40x25 mm (3.74x1.57x0.98 inch) |
Mounting Length | 85 mm (3.35 inch) |
Overall Length | 95 mm (3.74 inch) |
Weight | 0.15 kg (0.33 lb) |
Life Time | 100,000 hours @ full load, 65oC Tcase |
* Unless otherwise noted, the data are based on 25ºC ambient temperature, 230Vac input voltage, and full load.
Electrical Specification

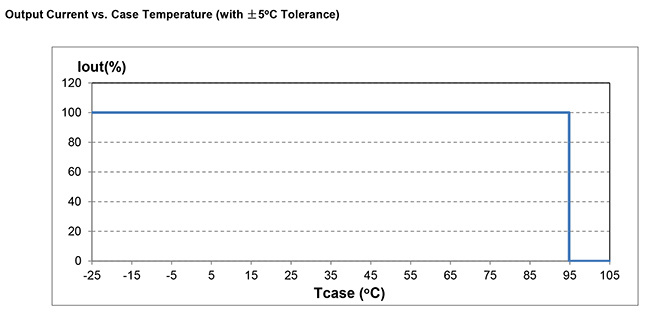

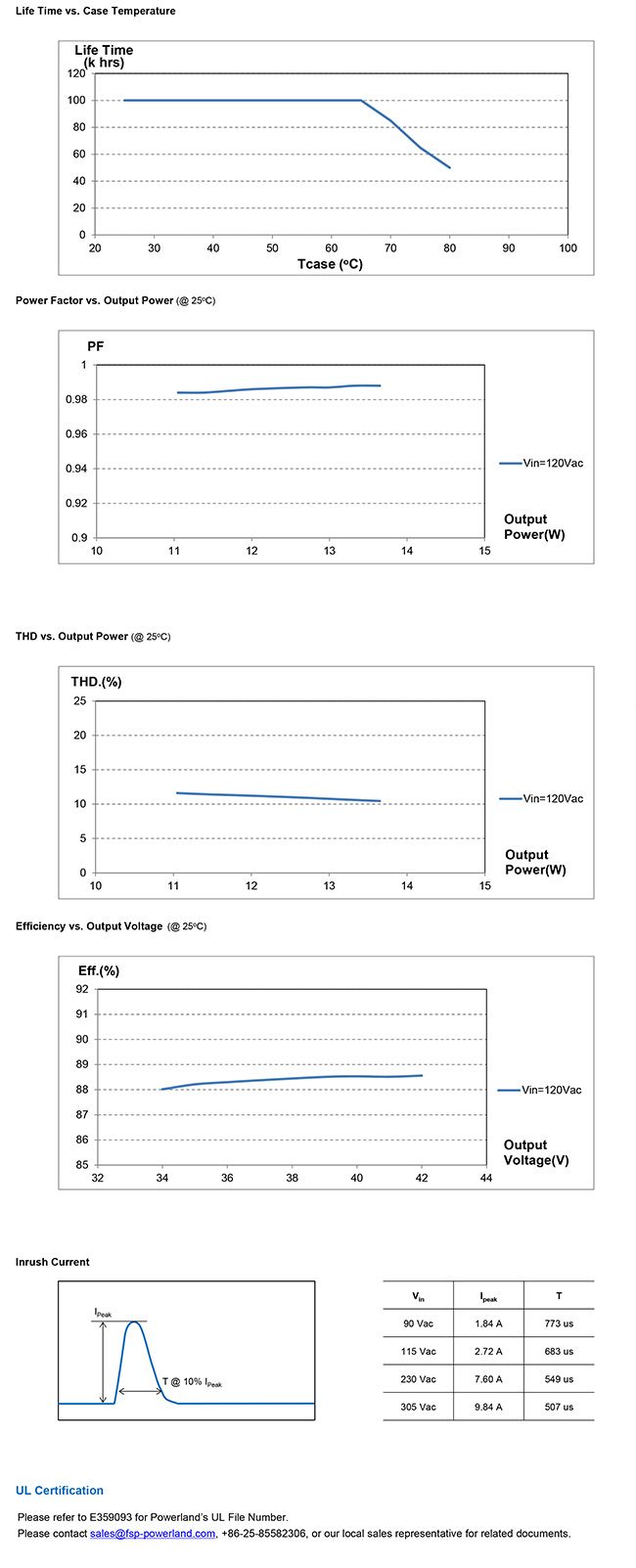

Performance Characteristics (Test wtih PLD013-1SCF503TS-325)
