UL Listed Programmable 50W 1400mA LED Driver with 0-10V/ PWM /Rset /Clock Dimming

UL Listed Programmable 50W 1400mA LED Driver with 0-10V/ PWM /Rset /Clock Dimming
Price: US $ 9.2-9.8/Piece
Min Order: 300/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: PLD050-1SCF692WA-1400
Usage: Digital Products
Output Type: Single
Driving Method: LED Constant Current
Circuit Structure: Conventional Step-down Transformer
Power Supply Voltage: 108VAC-305VAC
Brand: Fsp-Powerland

Product Description

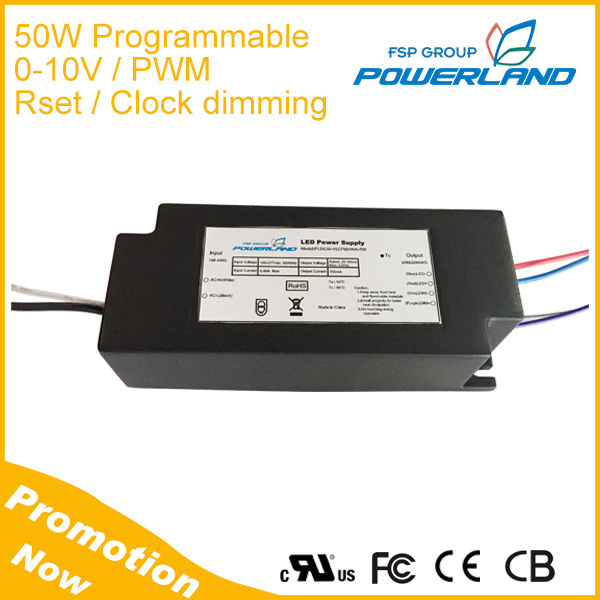

UL Listed 50W 1400mA 0-10V Dimming Led Driver
0-10V / PWM / Rset / Clock Dimming All-In-One

 PLD050-1SCF691WA-1400 offers digital programmable drivers with wide-range adjustable output current and 108-305Vac universal input.
 The output current of this series are programmable up to 1400mA, and designed for 0-10V/PWM/Rset/Clock dimming application.


 Applications
 Outdoor & Indoor LED lights
 Led Lights with flexible current settings

 Downlights, high bay and low bay lights, spotlights, LED panels

Features

100,000 hours lifetime at 70ºC Tcase
5 years warranty at 70ºC Tcase
Min. operating temperature @-20ºC
Constant current & constant voltage output
Output current & output voltage programmable
Compatible with 0-10V, PWM, external resistor, clock dimming
Universal input voltage:108-305Vac
Safety according to UL1310 & EN61347-2-13
EMC according to FCC part 15 Class B
Lightning, OVP, SCP, OTP & Open Circuit Protection
Electrical Specification
Electrical Specifications
Model

PLD050-1SCF692WA-1400

Output Voltage

20~50V

Output Current

140~1400mA


Dimming

                                      0~10V, PWM, External Resistor, Clock

Current Programmable

                                                                      Yes

Output Power

50W

Max. Current Ripple

±30%

Voltage Range

108~305Vac

Frequency Range

47~63Hz

Max. Input Current @ 230Vac

0.65A

Max. Input Power

59W

Power Factor

>0.95 @ 115Vac & 80~100% load, >0.90 @ 277Vac & 80~100% load

Efficiency

89%

Max. Open Circuit Voltage

59.5V

THD

<20% @ 120Vac & 80~100% load, <20% @ 277Vac & 80~100% load

Protections

OVP, OTP, OCP, SCP

Environmental Protection

UL Dry & Damp & Wet, and Type TL

Working Temperature

-20~+50ºC

Max. Case Temperature

90ºC

Surge Protection

1kV

Agency Approbations

UL1310 Class 2

Electromagnetic Compliance

Per Title 47 CFR Part 15 Class B

Ansi Surge Type

1.2/50μs Combination Wave (w/t 2Ω)

Isolation

Primary to Secondary: 3750Vac / 10mAMax / 60seconds

Dimension

108x45x29.5 mm (4.25x1.77x1.16 inch) Plastic Case

Mounting Length

98 mm (3.86 inch)

Overall Length

108 mm (4.25 inch)

Weight

0.28kg (0.27 lb)

Life Time

100,000 hours @ full load, 70ºC Tcase

* Unless otherwise noted, the data are based on 25ºC ambient temperature, 230Vac input voltage, and full load.

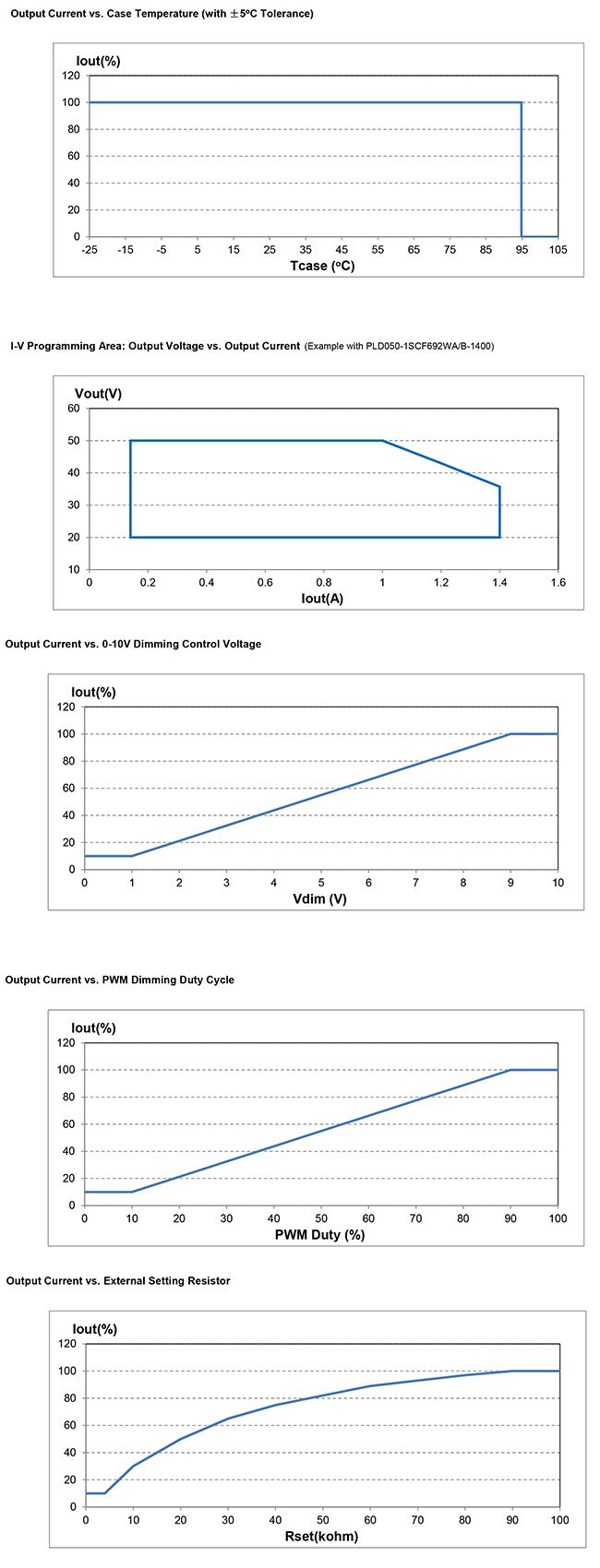

Electrical Specification

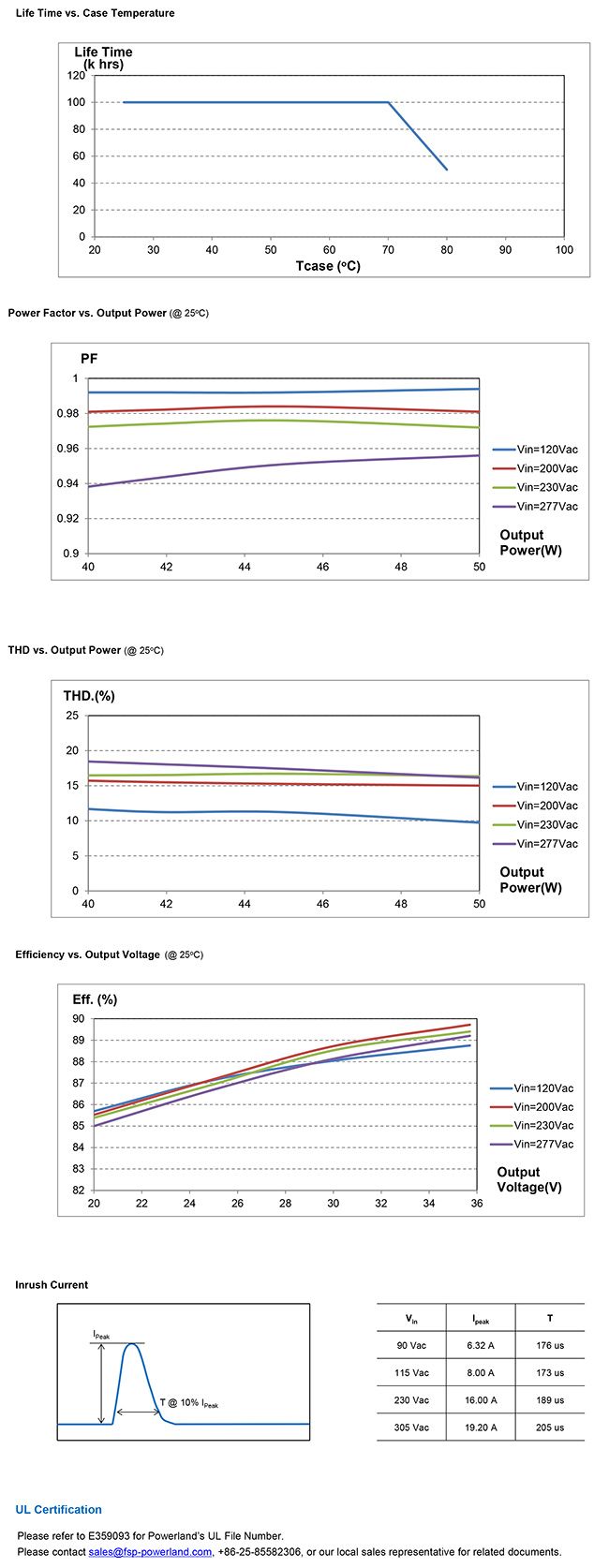

Performance Characteristics (Test wtih PLD050-1SCF691WB-1400)



Glance at Powerland


FSP-Powerland Technology Inc. is a leading customized power company, providing full service and solutions for industial, military, medical and consumer applications. Since established in spring 2009, Powerland has attracted international expertise into its R&D team. Powerland never stops integrating technology innovation with experienced product development, to design and manufacture high-end power electronics products featured with high efficiency, high reliability, super long life, and high power density.

Since its establishment, Powerland has been focusing on green power products, including LED lighting power, solar power, MID/large-scale battery power, and other high-efficiency power supplies. In addition, to strengthen our technology and market competitiveness, Powerland has established strategic cooperation relationships with multiple global companies, and carries on the customized design service for challenging power solutions.

Looking into the future, Powerland will continue our "Me-First" product strategy, and will extend our advantages in leading-edge technologies. Together with the solid base of FSP-Group, and our sharp market insights and outstanding manufacturing quality, Powerland looks into "breaking limits, establishing the horizon" in green energy and power electronics field
