Hebei Huatong Wires & Cables Group Co., Ltd. >> UL Listed UL 1277 Power and Control Tray Cable/Tc Cable

UL Listed UL 1277 Power and Control Tray Cable/Tc Cable

UL Listed UL 1277 Power and Control Tray Cable/Tc Cable
Price: US $ 0.2/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1000/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: 0.6/1KV control cable
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application: Equipment
Voltage: Low and Medium Voltage Cable
Current: AC Cable
Insulation Material: XLPE
Certification: UL
Model: Tray Cable
Brand: Rneda

Product Description

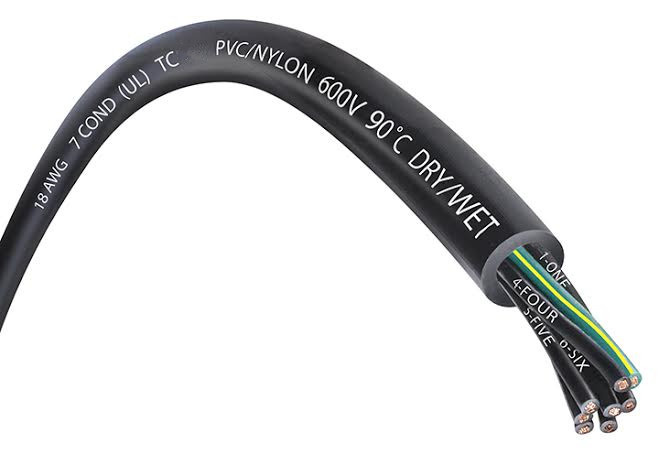

UL listed UL 1277 Power and control tray cable/TC cable
XHHW Tray Cable (XLP/PVC)
-40°C to 90°C Control Cable
Type XHHW-2 Conductors

XHHW Tray Cable (XLP/PVC) Construction:

Conductor: 18 AWG - 2 AWG Class B Stranded Bare Copper (per ASTM B-3 and B-8)
Insulation: Flame-Retardant Cross-Linked Polyethylene (XLP)
Jacket: Black sunlight and moisture resistant Polyvinyl Chloride (PVC)
Shield: 100% coverage, aluminum/polyester foil shield or copper tape


XHHW Tray Cable (XLP/PVC) Features:

Rated 90°C wet or dry
Sunlight and weather resistant
Excellent abrasion and chemical resistance
Oil resistant I jacket


XHHW Tray Cable (XLP/PVC) Applications:

Constructions of 3 or more conductors are permitted by NEC for TC-ER (exposed run)
Approved for Class I Division 2 hazardous locations
Designed for use in conduit, cable tray or direct burial
Ideal for use in control, power lighting and telemetering applications where a heat and electrically stable insulation is required


XHHW Tray Cable (XLP/PVC) Approvals:

UL 1277 Type TC, UL 1685 and UL 44 XHHW-2 rated
ICEA S-95-658 (NEMA WC70)
Passes FT4 Test

1.22 years production experience and 13 years export experience .

2.Products certification :UL,CE,BV,TUV,KEMA,PSB,SABS,ABS,NK,LR,KR,GL etc

3. OEM service available based on official & legal authorization.

4.Strict quality control system.

5.Rapid delivery and feedback  Faster lead time than our competitors.

6.Excellent quality with reasonable price.

7. Strong technical support (technical data, drawing, etc.)

8.Professional teamwork service for you actively.

9.Stock available, Free sample is available.

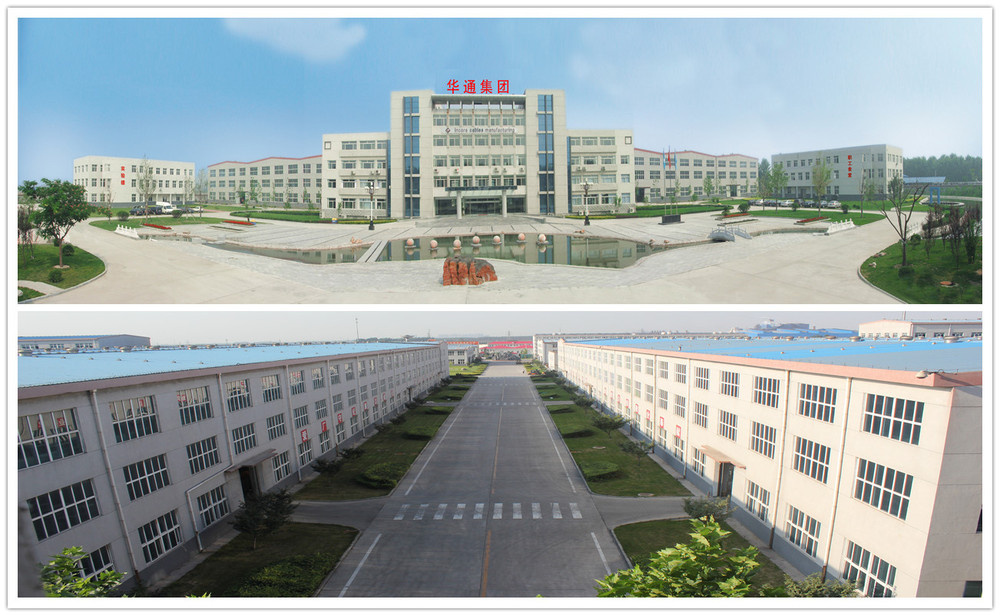

Established in 1993, Hebei Huatong Wires and Cables Group Co., Ltd covers an area more than 220, 000 square meters, owning more than 420 sets manufacturing equipment and more than 250 sets of testing equipment or apparatus. Our annual production capacity is 3 billion Chinese Yuan. Now there are more than 800 employers in our company, among which more than 150 are technicians. With the continuous efforts from all the employers, Hebei Huatong Wires and Cables Group Co., Ltd has realized great development to become a modern enterprise and one of the comprehensive, large-scale enterprises in domestic wire and cable industry. Our products are widely used in the field of electric power, coal, metallurgy, petrochemical industry, railway, national defense, construction, aviation and other national key projects. We are JV with Furukawa(Japanese company) for rubber serial cable (minding cables, welding cables. Submersible oil pump cables, . )and also JV with Riken(Japanese company) for elevator cables. Our products have extensive influence and good reputation in both domestic and worldwide market, such as the United States, Holland, Italy, Russia, Britain, Australia, New Zealand, Ethiopia, Ghana, Algeria, South Africa, Congo, Middle East and Southeast Asia countries and so on.

Products: Power Cable, Rubber Cable, UL standard building wire cable

Certificates:

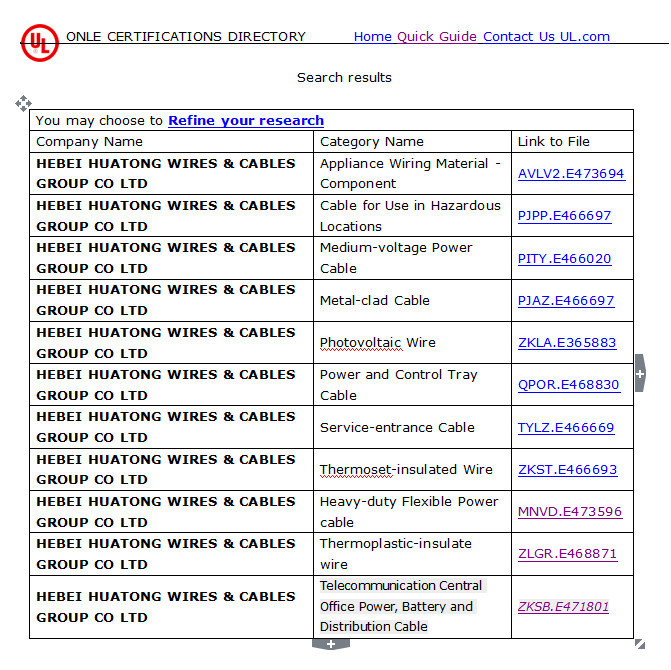

Certificate of UL. CE, KEMA, TUV, Bureau Veritas, Lloyd, IEC, GL, SA, NK, KR and "National Industrial Production License", "Certificate of Recommended Enterprises and Products for National Grid", "Adopting International Standard Certificate", and "High-Tech Enterprise Certificate", "Certificate of High Quality Products", "Certificate of Scientific and Technological Achievements", "Qualified Supplier Certificate", "China Classification Society Certificate of Works Approval", "Det Norske Veritas Type Approval Certificate", "Railway Product Certificate", "Safety Certificate of Approval for Mining Products", "National Mandatory Product Certification", "Certificate for China Compulsary Products Certification" and "Practical New-Type Patent Certificate
