UL Mini Coaxial Cable RoHS Compliant

Name: UL Mini Coaxial Cable RoHS Compliant
Brand: all-electronics-online.com
SKU: 724440125
Availability: InStock
Rating: 4.4 (119 reviews)

Price:	Negotiablekm
Trade Terms:	FOB
Min Order:	50km
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	Coaxial Cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Center Conductor:	Solid Copper
Application:	Local Communication Cable
Conductor Material:	Copper
Cover Material:	PVC
Certification:	UL
Type:	Annealed Solid Copper

Product Description

This cable is installed inside the wall to delivery the TV signals. (CCTV/CATV/DBS (Dish Broadcasting system)

Clear Insulation
100% Copper
Wire Polarity Identified with White Stripe for Connection To positive Terminals
Minimize Noise in Sound
Universal Compatibility
High performance
Low Return Loss
Limited lifetime Warranty
UL Approved

Velocity of propagation: 82%

Return Loss

1~450 MHz ≥26 db

450~850 MHz ≥23 db

850~3000 MHz ≥15 db

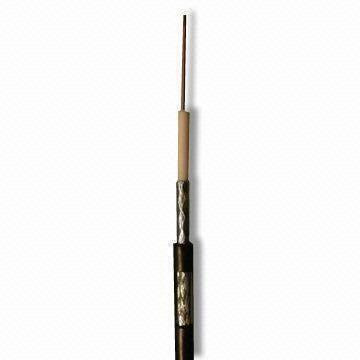

1 . Internal conductor
Material:		SolidCopper(23AWG)
Diameter		Φ0.574mm
2. PE Insulation
Material:		FormedPEInsulation
Diameter:		Φ2.54±0.13mm(0.180'')
3 . Braid Shield
Layer 1	Material	Aluminum foil
	Coverager ate	>18%
Layer 2:	Material	TinnedCopperwires
	Diameter:	Φ0.127mm(36AWG)
	Coverage rate	>95%
4 . PVC Jacket
Material:		FlameRetardantPVC
Diameter:		Φ4.2mm

Attenuation ( 20 C) ( Unit : d b )
Frequency	Norminal/100feet
1MHz	0.38
3.6MHz	0.77
10MHz	1.29
71.5MHz	3.04
135MHz	4.18
270MHz	5.92
360MHz	6.70
720MHz	9.47
1000MHz	11.16
1500MHz	13.67
2000MHz	15.78
2250MHz	16.74
3000MHz	19.33

Wanma is a professional cable manufacture located in Lin'an, Zhejiang Province, an ancient Chinese city.Since its establishment in 1989, Wanma has devoted over 20 years in constantly research, investigation, and improvement in not only our products, but also management philosophies and technical abilities.Thus allowing us to achieve rapid progress in the field of cable manufacturing industry, and also becoming a trusted OEM and ODM supplier to a number of well-known Fortunes 500 enterprises and many famous CATV, satellite system operators across the world.

Our major products include RG series cable, HDMI, USB2.0&3.0, A/V and Fiber Optic cables.Our annual output includes 700, 000 km of coaxial cables and 20 million pieces of related cable assemblies.Along with the development of cable products, we've also paid great attention to vertical integration of the supply chain;We set up our own individual plant for PVC and Aluminum foil.

Utmost quality is our constantly seeking and demand, we have accurate testing device for high frequency electrical performance, and a full set of testing equipments complying with UL's strict requirements.We passed through ISO 9002 quality system acceptance in 1999, acceptance to UL's safety specification as well as CSA nominated products in 2002.We became HDMI adopter and passed HDMI Compliance Test in 2010.In addition, we have passed GE and Thomson's quality management audit.

We are determined to assume the responsibility for the protection of our environment and society.We passed the SGS ethics acceptance in 2005, ISO 14000 acceptance in 2006, Wal-Mart EHS audit in 2012.Our products completely conform to the requirements of RoHS guidance.

We are always ready for your professional inquiry.
