UL RoHS Rubber Adhesive PVC Electrical Tape

Name: UL RoHS Rubber Adhesive PVC Electrical Tape
Brand: all-electronics-online.com
SKU: 768959195
Availability: InStock
Rating: 5 (78 reviews)

Price:	US $ 0.1022/Roll
Trade Terms:	FOB,CFR,CIF
Min Order:	30000/Roll
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	180D
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Thickness:	0.13mm, 0.15mm, 0.18mm
Length:	up to 30m
Voltage:	up to 600V
Application:	Electrical Winding Insulation
Type:	Insulation Tape
Chemistry:	Hybrid Insulation
Thermal Rating:	Y 90
Maximum Voltage:	<10KV
Material:	PVC
Color:	Black,Red,Yellow,Green,etc
Brand:	Maxwel

Product Description

Rubber Adhesive PVC Electrical Tape

Feature:
Excellent insulation
Good flame retardant
Excellent resistance to voltage and low temperature

Quality Warranty
Competitive Price
Sample free and available

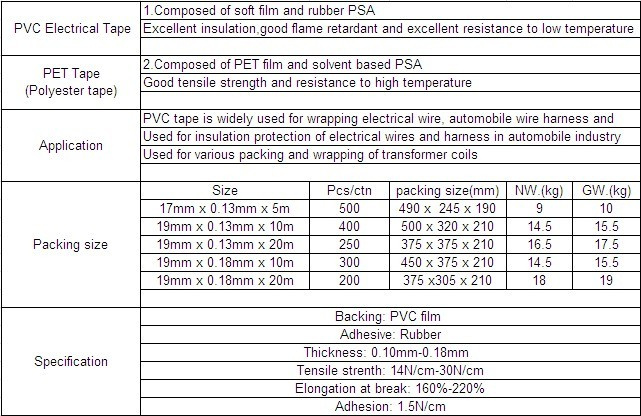

Code	Backing& Adhesive	Thickness (mm)	Adhesion (N/cm)	Tensile (N/cm)	Elongation (%)	Temperature (°C)	Voltage breakdown (kv/mm)	Features &application
100D	PVC& rubber	0.1	1.5	14	160	80	≥40	Used for wrapping electric wires and cables etc.
110D	PVC& rubber	0.11	1.5	15	160	80	≥40
130D	PVC& rubber	0.13	1.5	17	160	80	≥40
150D	PVC& rubber	0.15	1.5	22	200	80	≥40
165D	PVC& rubber	0.165	1.5	25	200	80	≥40	Be up to UL standard,used for wrapping electric wires and cables etc.
180D	PVC& rubber	0.18	1.5	28	200	80	≥40
190D	PVC& rubber	0.19	1.5	28	200	80	≥40
200D	PVC& rubber	0.2	1.5	30	220	80	≥40
100Z	PVC& rubber	0.1	1.5	14	160	80	≥40	Flame retardant , used for wrapping electric wires, automotive wire harness and cables ect.
110Z	PVC& rubber	0.11	1.5	15	160	80	≥40
130Z	PVC& rubber	0.13	1.5	17	160	80	≥40
150Z	PVC& rubber	0.15	1.5	22	200	80	≥40
165Z	PVC& rubber	0.165	1.5	25	200	80	≥40	Be up to UL standard, flame retardant , used for wrapping electric wires, automotive wire harness and cables etc.
180Z	PVC& rubber	0.18	1.5	28	200	80	≥40
190Z	PVC& rubber	0.19	1.5	28	200	80	≥40
200Z	PVC& rubber	0.2	1.5	30	220	80	≥40

About Maxwel Electric

At Maxwel Electric, we efficiently produce a wide variety of tapes and electrical products. Our factory is ISO 9001: 2000-certified, and our products meet various international standards for easier market entry.

A large range for your selection

You can come to us for self-amalgamating, semi-conducting, butyl, mastic, sealing, PVC and aluminum foil tapes. We also manufacture miniature circuit breakers, residual current circuit breakers, residual current circuit breakers with over-current protection, switch disconnectors, distribution boxes and more.

Contact us

Our factory is equipped with state-of-the-art testing equipment, and we perform inspections during every step of production to ensure quality. To learn more, contact us today.
