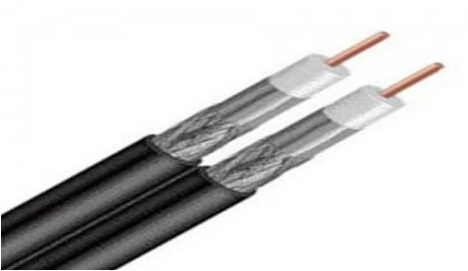

UL Standard Coxial Cable Type 65 with Bc Center Conductor

UL Standard Coxial Cable Type 65 with Bc Center Conductor
Price: Negotiable/Meter
Min Order: 1/Meter
Pay Type: L/C,T/T
Prod Model: Coaxial Cable
Cable Type: Twin Cable
Cable Model: CT65
Cable Standard: En
Center Conductor: Bc
Braid Wire: Tc
Jacket Material: PVC
Application: RF Cable
Conductor Material: BC/CCS/CCA/TC/CU/CCAG
Cover Material: PVC
Certification: UL
Type: Twin CT65
Model: CT65
Brand: Wanma

Product Description

Production Specification:
1. Inner conductor: Bare copper, 0.66+/-0.1mm
2. Insualtion: Foam PE, 3.0+/-0.1mm
3. Tape: Al foil
4. Braid: Tinned copper
5. Outer jacket: UV PVC, black/white, 4.8+/-0.1mm, Rohs and Reach compliant

Electrical performance
1. Impedance: 75±3 Ω
2. Velocity: >82%
3. Return Loss:
              5-30 MHz  >23dB
          30-470 MHz  >23dB
       470-862 MHz   >20dB
    862-2150 MHz    >15dB
4. Screening Attenuation :
           30-300 MHz    >85dB
         300-470 MHz    >80dB
       470-1000 MHz    >75dB
     1000-2150 MHz    >65dB
5.  DC resistance:
    Inner conductor  <55Ω/km
   Outer conductor  <16Ω/km
6. Attenuation Max   (dB/100m@20ºC)
5MHz<2.7dB
50MHz<7.5
100MHz<10.0
200MHz<13.8
460MHz<21.4
860MHz<30.0
1000MHz<32.5
1750MHz<42.2
2150MHz<47.0

7. Operating Temperature: -30ºC~70ºC PVC UV protection
8. Bending Radius : 35mm
9. Flexing Radius : 75mm
10. Static Bend test : 180ºC wrap around 70mm mandril
11. Multiple Bend test : 90ºC wrap 3 times wrap around 70mm mandril






Wanma is a professional cable manufacture located in Lin'an, Zhejiang Province, an ancient Chinese city.Since its establishment in 1989, Wanma has devoted over 20 years in constantly research, investigation, and improvement in not only our products, but also management philosophies and technical abilities.Thus allowing us to achieve rapid progress in the field of cable manufacturing industry, and also becoming a trusted OEM and ODM supplier to a number of well-known Fortunes 500 enterprises and many famous CATV, satellite system operators across the world.

Our major products include RG series cable, HDMI, USB2.0&3.0, A/V and Fiber Optic cables.Our annual output includes 700, 000 km of coaxial cables and 20 million pieces of related cable assemblies.Along with the development of cable products, we've also paid great attention to vertical integration of the supply chain;We set up our own individual plant for PVC and Aluminum foil.

Utmost quality is our constantly seeking and demand, we have accurate testing device for high frequency electrical performance, and a full set of testing equipments complying with UL's strict requirements.We passed through ISO 9002 quality system acceptance in 1999, acceptance to UL's safety specification as well as CSA nominated products in 2002.We became HDMI adopter and passed HDMI Compliance Test in 2010.In addition, we have passed GE and Thomson's quality management audit.

We are determined to assume the responsibility for the protection of our environment and society.We passed the SGS ethics acceptance in 2005, ISO 14000 acceptance in 2006, Wal-Mart EHS audit in 2012.Our products completely conform to the requirements of RoHS guidance.

We are always ready for your professional inquiry.
