UL Standard Photocell Photocontrol Lighting Sensor Lighting Control Twist-Lock Photo Control Socket

Name: UL Standard Photocell Photocontrol Lighting Sensor Lighting Control Twist-Lock Photo Control Socket
Brand: all-electronics-online.com
SKU: 815763805
Availability: InStock
Rating: 4.9 (28 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	230
Type:	Light Control
Feature:	Sensor Switch Socket

Product Description

Basic Specification:

Holding Cover	Polycarbonate
Rated Voltage	480VAC Max.
Loading Capacity	15Amp Max.
Ambient Temperature	-40ºC ~ +70ºC
Voltage	0-480VAC

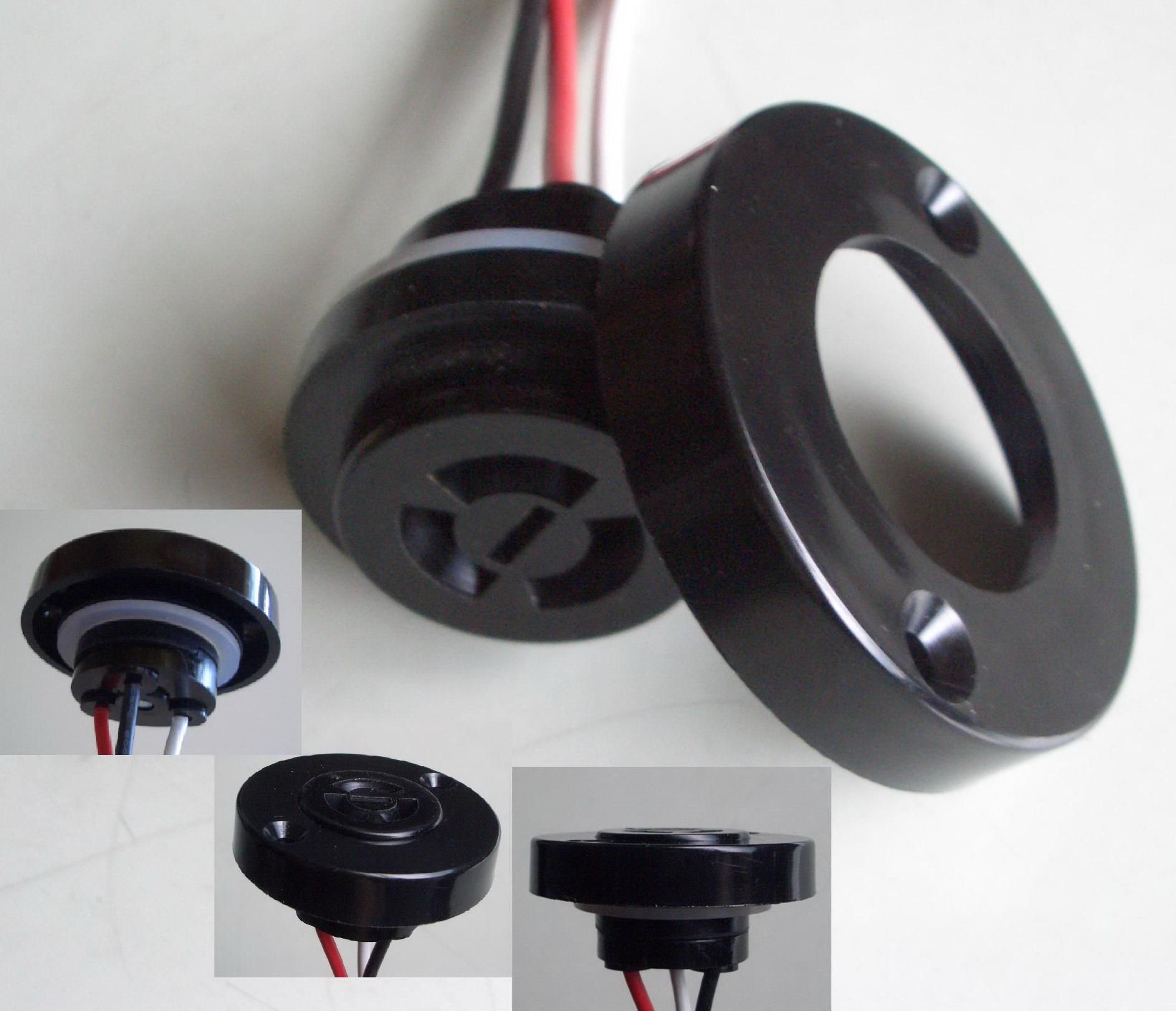

Product Pictures:

All the JL-230 series receptacles are intended to be pre-mounted onto those lanterns designed to fit an
ANSI C136.10-1996 twist-lock photocontrol.

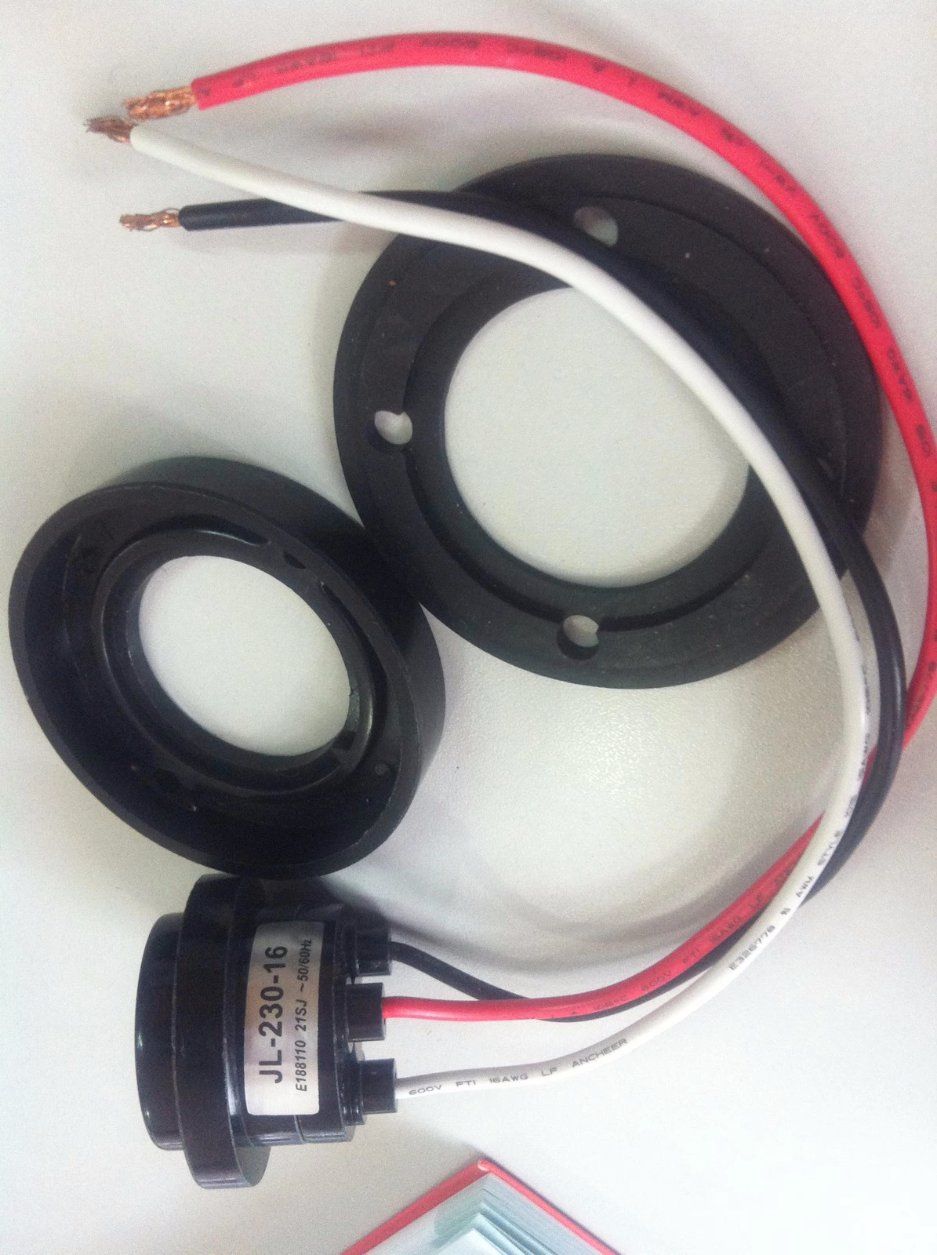

Both JL-230-16 and JL-230-14 have been recognized by UL to applicable US and Canadian safety
standards, under their file E188110, Vol.2.

Installation:

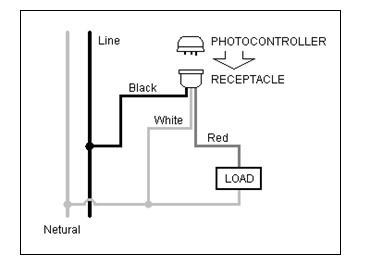

Disconnect power; wire the receptacle according to the diagram in right hand. An arrow indicating NORTH on the top of the receptacle is used to assist correct direction. Push the photocontroller on and twist it clockwise to lock it into the receptacle.
Install the photocontroller with the Photocell facing the NORTH direction as indicated on the top of the photocontroller.
Adjust the receptacle position by loosening screws and fasten them after its redirected.
