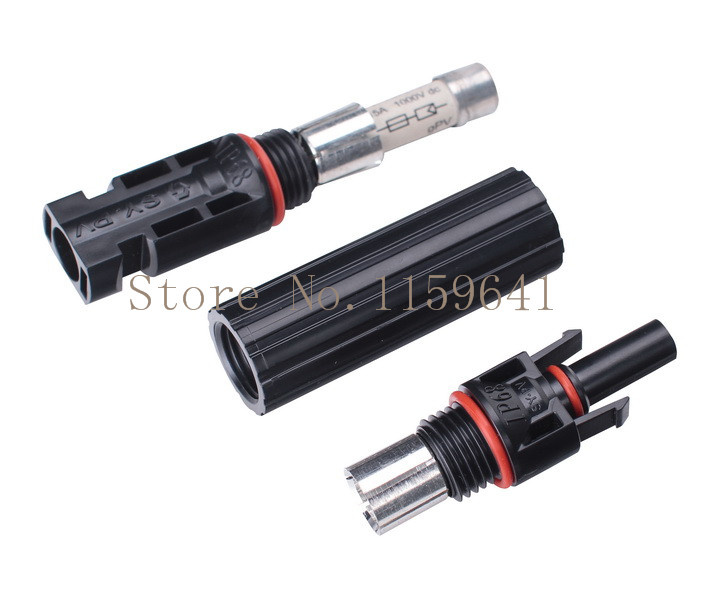

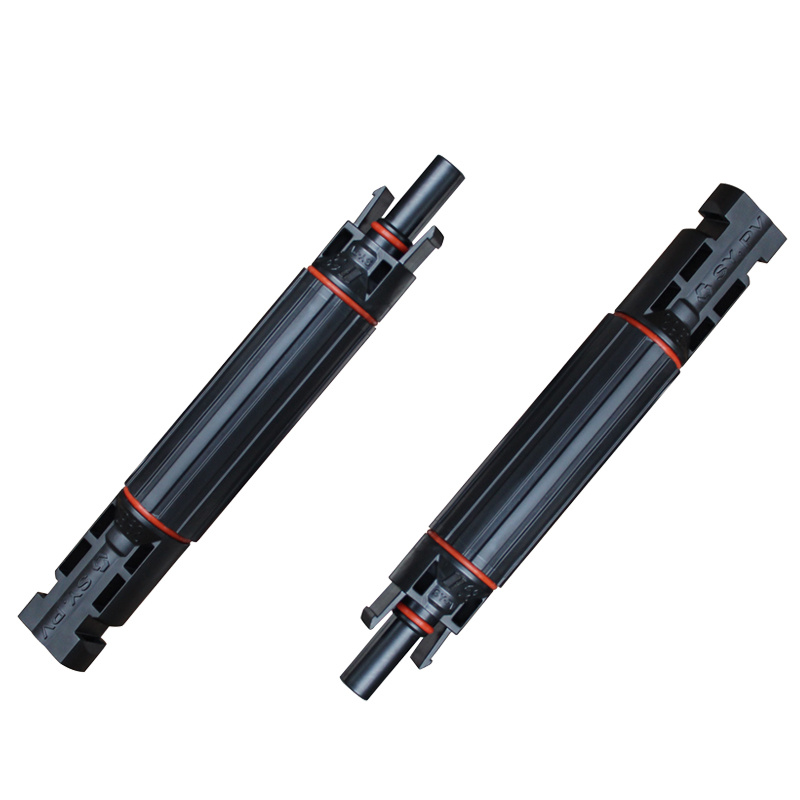

UL/TUV Approved IP68 Solar Diode Connector PV Mc4 Diode Connector

Prod Model:	LJ0134
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Contact Resistance:	0.4mm
Rated Voltage:	TUV1000V DC/UL 600V DC
Rated Current:	3-15A
Pin Dimension:	4 mm Sq
Contacts:	Copper, Tin Plated
Application:	Commercial
Specification:	Normal

Product Description

More details please contact:




LEADER ENERGY is a new energy enterprise,located in GUANGDONG, China,specializing in R&D,

manufacturing and marketing PV connectors,PV junction boxes and PV assembles etc;

with an integrated utilization from solar modules,solar energy appliance to on off-grid solar power generation systems,

and by the products R&D,mold design,production,sales through-train service.With advanced technology,

our products have been authorized by TUV Rhineland,UL,CE successfully.

Application	solar system
Gender	male and female
Rated Voltage	TUV1000V DC/UL 600V DC
Suitable cable cross sections	2.5mm sq~~6.0mm sq
Protection class	class II
Contact material	Copper,tin plated

Products details :
A lot =20PCS
Diode Current :3A 8A 15 A 20A
Easy , quickly and reliable connection of the solar cables to the photovoltaic system (solar panels, converters).
Technical data:
1.Connector adopts touch of reed with inne-knob type. 2.Auto-lock enable connection more easy and reliable. 3.Popular figure suit most of field installation. 4.Quickly to connector. 5.Water proof and prevent dust. 6.Long life.

FAQ:
Q: Is sample available and free?
A: Sample is avaible and free, but the freight cost should be pay by you.
The freight cost of sample will be refund after further order.
Q:Do you accept customized order?
A:Yes, we do.
Q: What's the delievery time?
A: It usually takes 4-27 days after confirming payment, but specific time should be based on the order quantity.
Q:How can I contact you?
A:Contact person: Amy Han
Mob 0086-137-9489-9659
