UL/TUV Approved Single Core 10mm2 Tinned Copper Conductor XLPE Insulation Solar Power Cable

Name: UL/TUV Approved Single Core 10mm2 Tinned Copper Conductor XLPE Insulation Solar Power Cable
Brand: all-electronics-online.com
SKU: 687824052
Availability: InStock
Rating: 4.6 (53 reviews)

Price:	US $ 0.1-15/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	2.5mm2, 4.0mm2, 6.0mm2, 10mm2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certificate:	Ce, ISO 9001
Standard:	IEC 60332-1, UL/TUV Standard
Be Applied To:	Soalr Power Panel Solar Station
Type:	Insulated
Conductor Type:	Stranded
Application:	Underground
Insulation Material:	XLPE
Certification:	CE
Conductor Material:	Tinned Copper
Range Of Application:	for Soalr Power Panel Solar Station
Brand:	Jytop

Product Description

UL/TUV Approved Single Core 10mm2 Tinned Copper Conductor XLPE Insulation Solar Power Cable

Application
Double insulation, electron-beam cross-linked cables for photovoltaic power station.
Especially for the connection between Solar power generation device connector and connection of inverter,Under the condition of different climate outdoor installation,and can adapt to the dry and wet indoor working environment

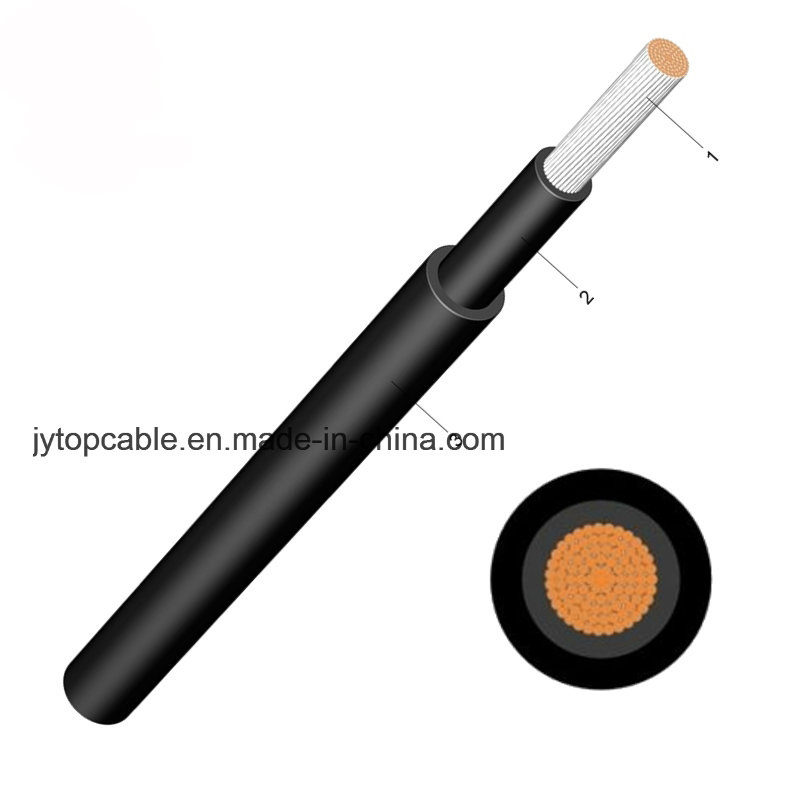

Construction
Conductor: Tinned copper, according to the VDE 0295/ IEC 60228,Class5
Insulation: Polyolefin copolymer electron-beam cross-linked
Outer Sheath: Polyolefin copolymer electron-beam cross-linked
Sheath color: Black/Red/Blue or as per customer's requeit

Technical Specification
Nominal Votage: U0/U=600/1000VAC,1000/1800VDC
Test Voltage: 6500V,50Hz,5min
Temperature Rating:
-45ºC ~ +125ºC
-40°F ~ +257°F
Ambient temperature
-40ºC ~ +90ºC
-40°F ~+194°F
Max. Short circuit temperature:280ºC,+536°F
Bending Radius: Fixed installation>4X, Occasionally moved>5X

Material Properties/ Standards
Fire-resistance performance: IEC 60332-1
Smoke emission: IEC 61034; EN 50268-2
Low fire load: DIN 51900
Approvals: TUV 2PfG 1169/08.2007 PV1-F
Application standards: UNE 211 23; UNE 20.460-5-52,UTE C 32-502

Parameter of solar cable

Nominal Cross Section	Conductor Construction	Conductor ø	Outer ø	Resistance Max.	Current Carring Capacity
n×mm²	n/m	mm	mm	Ω/Km	A
1×1.5	30/0.25	1.58	4.9	13.3	30
1×2.5	50/0.25	2.02	5.45	7.98	41
1×4.0	56/0.3	2.30	6.1	4.75	55
1×6.0	84/0.30	3.42	7.2	3.39	70
1×10.0	142/0.30	4.56	9	1.95	98
1×16.0	228/0.30	5.60	10.2	1.24	132
1×25.0	361/0.30	6.95	12	0.795	176
1×35.0	525/0.30	8.74	13.8	0.565	218
1×50.0	720/0.30	9.20	14.8	0.393	280
1×70.0	988/0.30	11.00	16.9	0.277	350
1×95.0	1349/0.30	12.50	18.7	0.21	410
1×120	1691/0.30	14.20	20.7	0.164	480

Zhengzhou JINYUAN Wire and Cable Co., Ltd, as a professional cable manufacturer. We have get ISO9001 and CE certificates. Our Professional and complete cable solutions make JYTOP Cables become to the partner of choice for international companies around the world,

PRODUCTS & STANDARDS & International Market:

1). Bare Conductor:

All Aluminum Conductor (AAC),

All Aluminum Alloy Conductor (AAAC),

Aluminum Conductor Steel Reinforced (ACSR),

Aluminum Alloy Conductor Steel Reinforced (AACSR),

Aluminum Conductor Aluminum Coated Steel Reinforced (ACSR/AW),

Aluminum Conductor Aluminum Alloy Reinforced (ACAR),

Aluminum Conductor Steel Supported (ACSS),

Aluminum Conductor Aluminum Coated Steel Reinforced (ACSR/AW)

All Copper Conductors(ACC),

Aluminum Coated Steel Wire(ACS),

Copper Coated Steel Wire(CCS),

Copper Coated Aluminum(CCA),

Galvanized Steel Wire(GSW),

Enameled Wire - Enameled round Aluminum Wire & Enameled round copper Wire

2). Overhead Cable:

Aerial Bundled Cable (ABC).

XLPE Cable,

Flexible Cable,

Single Core Cable,

2 Core Cable,

3 Core Cable,

4 Core Cable.

3). Building wire and cable:

THHN /THWN Cable

TW/THW Cable

PVC Insulated Wire,

XLPE Insulated cable.

4. Power Cable:

Armored /Non-armored Power cable

AWA Cable

SWA Cable

Standards: IEC, ASTM, AS/NZ, SANS, BS, DIN, NF, JISC, etc.

We can meet customers' special requirements, and provided OEM service.

Mainly Oversea Marketing: Southeast Asia, The Middle East, Africa, South America, so on.

We will be recognized as a professional Manufacturer in cable industry, through continuous improvement of our product quality, after sales service. We can give you the reliable solution for cable wires.

Company website: www.jytopcable.com
