UL, TUV Certificate Welding Cable

Name: UL, TUV Certificate Welding Cable
Brand: all-electronics-online.com
SKU: 723924552
Availability: InStock
Rating: 4.6 (116 reviews)

Price:	US $ 10/Meter
Min Order:	1000/Meter
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	Low Voltage
Application:	Heating
Insulation Material:	Rubber
Certification:	VDE
Type:	Welding Cable
Conductor Type:	Stranded Flexible Copper
Conductor Material:	Flexible Cooper and Aluminum
Sheath Material:	Rubber
Range Of Application:	Welding Machine
Brand:	Rne Da

Product Description

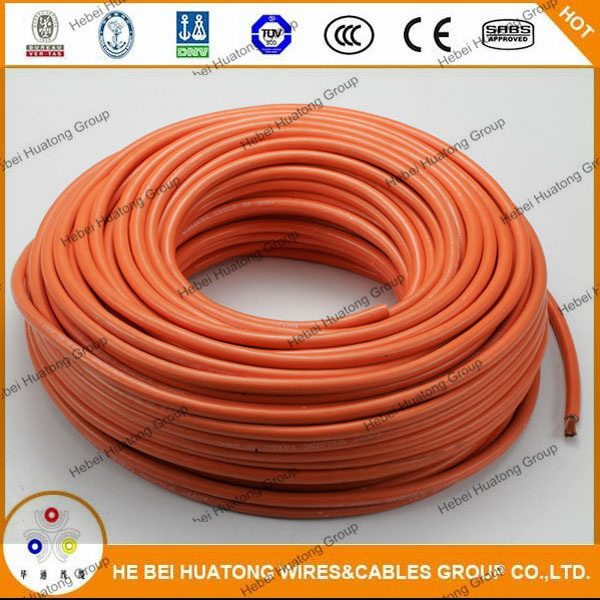

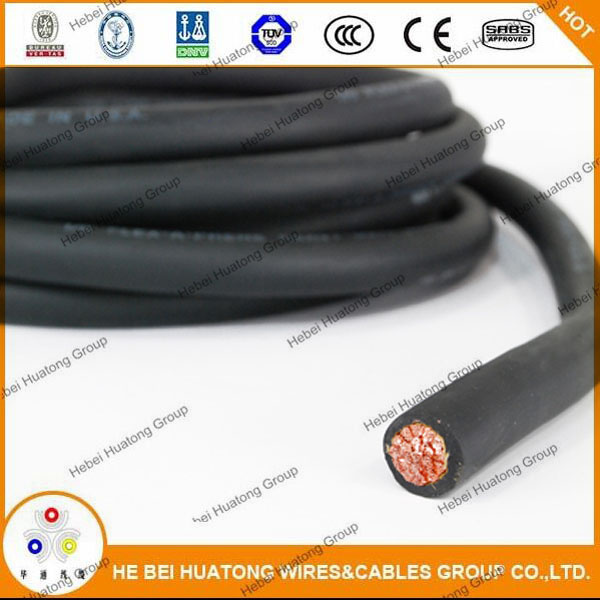

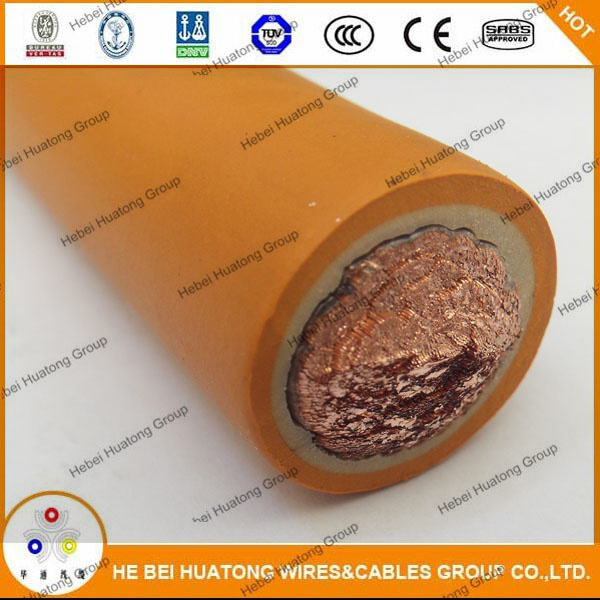

UL, TUV Certificate Welding Cable

Product Description:

Welding cable

1.Standard

The welding cable can be produced according to the standard 245 IEC 81,ICEA S-75-381

2.Specific Property for Using
(1).The cable can be used in the connectors of electric weld and pliers of the electrical welding whose toward earth voltage of the low voltage is
not more than AC 200 V and the pulsant DC peak value is 400V(2).The long-time permissible working temperature of cable is not more than 65.
3 .Name and IEC Standard
(1).Rubber Sheathed Welding Cable 245 IEC 81
(2).Rubber Sheathed Welding Cable 245 IEC 82,which is made of chloroperene or the composite stretchy materials.
4. Conductor Materials: Copper, Tinned Copper
5. Jacket: Rubber
6. Applications: For Welding Machines and so on
7.The general data of the cable 245 IEC 81 and 245 IEC 82

Conductor Nominal Section (mm2)	Conductive Core	Thickness of Section Sheath (mm)	Average Outer Diameter (mm)		20oC Conductor Resistance ≤(Ω/km)	Reference Weight (kg/km)
	Number/Diameter of Core(mm)		Min	Max		YH	YHF
10	322/0.20	1.8	7.5	9.7	1.91	146	153.51
16	513/0.20	2.0	9.2	11.5	1.16	218.9	230.44
25	798/0.20	2.0	10.5	13.0	0.758	316.6	331.15
35	1121/0.20	2.0	11.5	14.5	0.536	426	439.87
50	1596/0.20	2.2	13.5	17.0	0.379	592.47	610.55
70	2214/0.20	2.4	15.0	19.5	0.268	790	817.52
95	2997/0.20	2.6	17.0	22.0	0.198	1066.17	1102.97
120	1702/0.30	2.8	19.0	24.0	0.161	1348.25	1392.55
150	2135/0.30	3.0	21.0	27.0	0.129	1678.5	1698.72
185	1443/0.40	3.2	22.0	29.0	0.106	1983.8	2020.74

Established in 1993, Hebei Huatong Wires and Cables Group Co., Ltd covers an area more than 220, 000 square meters, owning more than 420 sets manufacturing equipment and more than 250 sets of testing equipment or apparatus. Our annual production capacity is 3 billion Chinese Yuan. Now there are more than 800 employers in our company, among which more than 150 are technicians. With the continuous efforts from all the employers, Hebei Huatong Wires and Cables Group Co., Ltd has realized great development to become a modern enterprise and one of the comprehensive, large-scale enterprises in domestic wire and cable industry. Our products are widely used in the field of electric power, coal, metallurgy, petrochemical industry, railway, national defense, construction, aviation and other national key projects. We are JV with Furukawa(Japanese company) for rubber serial cable (minding cables, welding cables. Submersible oil pump cables, . )and also JV with Riken(Japanese company) for elevator cables. Our products have extensive influence and good reputation in both domestic and worldwide market, such as the United States, Holland, Italy, Russia, Britain, Australia, New Zealand, Ethiopia, Ghana, Algeria, South Africa, Congo, Middle East and Southeast Asia countries and so on.
