| Prod Model: |
CBB capacitor |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand: |
Saifu/Csf |
| Model Number: |
Cbb65,Cbb61,Cbb60 |
| Rated Voltage: |
110VAC-680VAC |
| Operating Temperature: |
40/85/21 |
| Terminal: |
Lead Wire,Pin or Cable (Also Customize) |
| Shape: |
Cylinder or Ellipse |
| Shell: |
Aluminum or Plastic |
| Outer Shape: |
Round,Rectangular, Square,Oval |
| Protection Class: |
P0,P2 |
| Certificate: |
UL,TUV,CQC,ISO9001,SGS |
| Type: |
Polystyrene-film-capacitors |
| Application: |
Washing Machine |
| Package Type: |
Through Hole |
| Capacitance: |
0.8-120UF |
| Structure: |
Film Capacitor |
| Electrolyte: |
Castor Oil |
| Usage: |
AC/Motor |
| Tuning: |
Film Capacitor |
| Filter: |
Film Capacitor |
Product Description

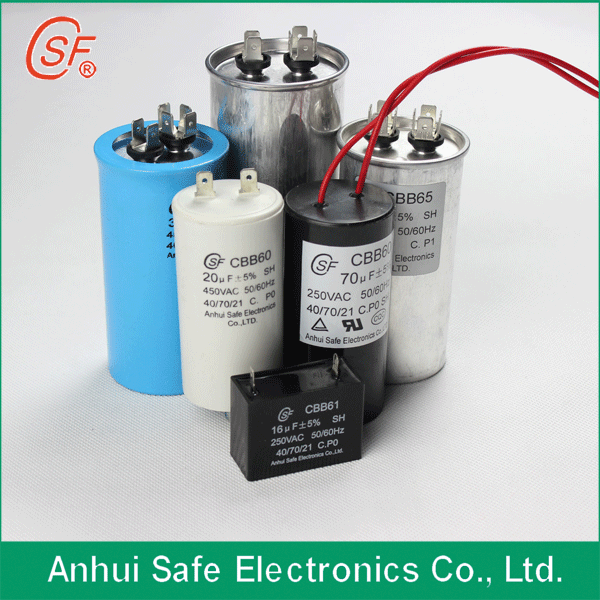

UL TUV RoHS Approval CBB60 CBB61 CBB65 AC Motor Run Capacitor
Features:
This kind of capacitor adopts zinc aluminum edge thickening metalized polypropylene film as dielectric,
Use for high speed winding machine, aluminium shell rolled closely packaged into, and adopts refined
Castor oil as impregnant in high temperature and the vacuum macerate process, make capacitors more
Stable performance, to live longer, and take the second generation of mechanical explosion-proof design, higher reliability.
Using:
Widely used in household air-conditioner etc frequency for 50Hz ac power supply / 60Hz of single-phase motor start-up and operation, and high-power lamps power factor compensation.
Technical specification:
. Climate type: 40/70/21, 40/85/21
. Capacity deviation: ± 5%
. Insulation resistance: ≥ 3000s
. Dissipation factor: Tgδ ≤ 0.002(50Hz~100Hz)
. Expected operating life: 3000h (Class C)or10000h(Class B)
Use requirement:
. Altitude: ≤ 3000m
. Residual voltage in application: No more than 10% of rated voltage
. The maximum permissible voltage: No more than 1.1 times of rated voltage
. The maximum permissible current: No more than 1.3 times of rated current
| CBB65 metalized film capacitor |
| Specification |
| product name: | CBB65 motor start capacitor |
| product type: | polypropylene film capacitor |
| Model Number: | CBB65 |
| Capacitance: | 1-100uf |
| capacitance tolerance | ± 3%, ± 5%, v± 10% |
| Rated Voltage: | 220V-630VAC |
| Operating Temperature: | -25~70° C |
| Climate type: | 25/70/21 |
| Application: | AC motor, air conditioner, washing machine, water pump and generator. |
| Safety Class: | P1, P2 |
| Certificate: | CE, ROHS, CUL, TUV, DIN, CQC, SGS |
| the Leader type: | Wire/2 pin/4pin |
| Material: | Plastic/metal case |
| Housing Color: | black, white aluminium, grey aluminium, blue |
| product Size: | kinds of different sizes or as customer' s request. |
Anhui Safe Electronics Co., Ltd. is a member of Green International Group. We mainly deal with AC motor capacitors, DC link capacitors, BOPP film (polypropylene film), MPP film (metalized film), inkjet PVC ID cards, polyester heat transfer film, PET film and other related products.
Our company has arranged the production of AC Motor Capacitors since 1999. Since the foundation of our company, the high-end slitters, the large-scale high-velocity winding machines, metal-spraying machines, automatic lines, automatic test lines and other advanced lines have been imported successively from Japan, Italy and Switzerland.
The production lines are state-of-the-art with internationally first-class quality. The annual output of all types of AC Motor Capacitors is 18 million pieces. We take the lead in this industry in China. There is a standard capacitor lab and calibration rooms for weight-and-measure gauges and test instruments in our company. We have got ISO9000 Quality System Certification and are endowed with considerable strong capability of technological development and quality control.
With one decade of experience accumulation and constant renovation, our company makes three key essential technological breakthroughs in the aspects of safety, endurance and temperature resistance. The products have all kinds of quality approvals to enter international markets such as CQC, UL, cUL, TUV and VDE. The products are suitable in diversified kinds of domestic and overseas prestigious-branded air-conditioners, refrigerators, compressors, washers, illuminators and other industries.
Our company is located in Tongling city-- ecological city of China. Our company adjoins to Shanghai, Nanjing and Ningbo and is close to traveling scenic spots of famous Huangshan Mountain and Jiuhuashan Mountain.
"good faith, serving the whole world" is our principle.
