Utility Electrical Co., Ltd. >> UL TUV Screw DIN Rail Terminal Block Wire Connector

UL TUV Screw DIN Rail Terminal Block Wire Connector

UL TUV Screw DIN Rail Terminal Block Wire Connector
Price: US $ 0.1-1/Piece
Min Order: 50/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: JUT2-XX
Wire Crosssection: 2.5mm2 to 70mm2
Type: Socket Terminals
Material: Copper
Application: Branch Box, Junction Box
Certification: TUV, Ce, RoHS, CQC
Brand: Utl

Product Description

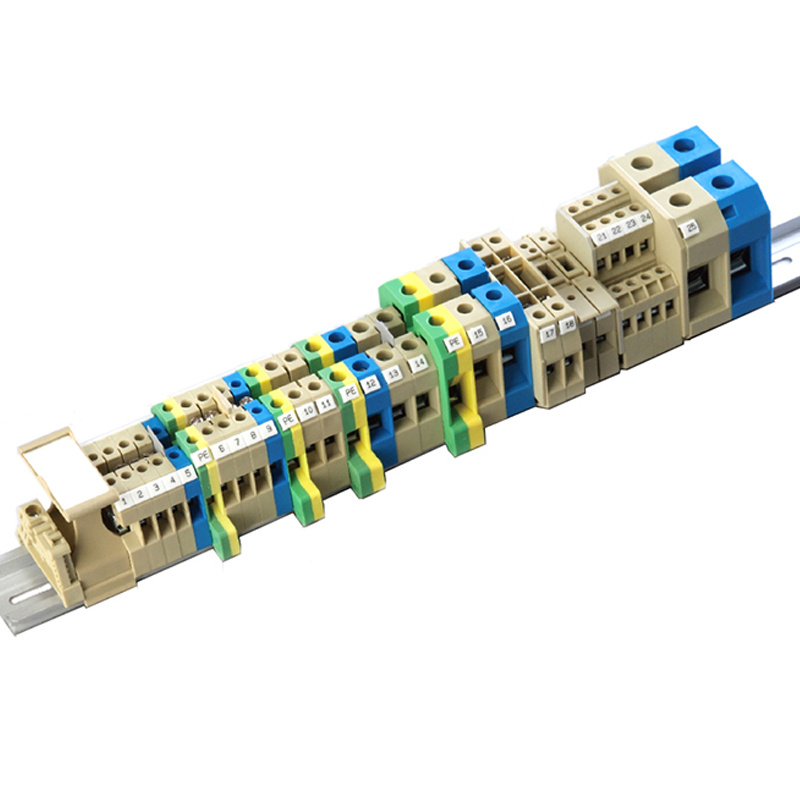

JUT2 Series Screw-connection DIN rail-mounted wire Terminal Blocks

This series is ideal to replace Weidmuller's SAK series screw-clamping terminal blocks. It is classifed to 2.5/4/6/10/16/35/70mm², for single/ dual layer, standard/ grounding type, including Fused & Testing terminals as well as mini size.

Parameters:
Material
HousingPA66 Nylon (UL94-V0 level)
ContactBrass
Screw Steel
ColorBeige / Yellow-Green (grounding type) or custom color
Electrical
Wire size2.5mm² to 70mm²
AWG24-0
Voltage800V(IEC 60947-7-1)
Current24A-192A (IEC 60947-7-1)
DIN rail typeNS32 or NS35/7.5
LayerSingle or Double
TypeStandard/ Grounding or Earthing/ Fused/ Testing/ Mini
CertificationUL,TUV, CE, CQC, RoHS

Trading Condition:
MOQ1 carton (20-50pcs)
Lead time7-10 working days
Warranty1 year
PaymentT/T, PayPal, Western Union
ShipmentAir-way express/ ocean-way delivery
SamplesProvided freely

For more info or recommendation, please feel free to contact me. Utility Electrical (UTL) is a professional manufacturer with 30-year experience in providing wiring solution. We supply various type premium quality wire connection terminals.

Utility Electrical Co., Ltd
www.china-utl.com
www.utl-de.com
UTILITY electrical Co., Ltd. Was established in 1990, which is specialized in

The production of the terminal industry, distributors, is that the industry is

Strong in technology, growing rapidly, very large-scale enterprises. Since its

Establishment, the community's concern and support, through the joint

Efforts of all my colleagues, more than a decade UTILITY made remarkable

Achievements, from sales to the corporate image have been recognized by

Customers and industry peers and achieved gratifying brand.

The company has consistently adhered to the "people-oriented, market-

Oriented" business philosophy, product standards, UTILITY painstaking

Research of the IEC, UL, CSA, GB, CE, CCC and other international and

Domestic standards for terminals, and in accordance with these

Standards preparing their own more stringent corporate standards, from

The development, mold design, raw material procurement, production,

Plastic parts molding products, metal parts, to finished product assembly

And quality testing, packaging, shipping, etc.

The company produced dozens of series, thousands of specifications of

Products for our customers to provide a rich selection of product protection.

The company passed the ISO9001 quality management system certification,

The vast majority of products through the UL, CSA, CCC, CCS, CE

Certification, some products through the VDE certification, all products

Comply with RO environmental requirements.
