Utility Electrical Co., Ltd. >> UL TUV Spring DIN Rail Electrical Terminal Blocks St Connector

UL TUV Spring DIN Rail Electrical Terminal Blocks St Connector

UL TUV Spring DIN Rail Electrical Terminal Blocks St Connector
Price: US $ 0.79-0.99/Piece
Min Order: 10/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: UTL-JUT3-XXX
Wire Crosssection: 1.5mm2 to 240mm2
Contact Material: Purple Copper
Spring Material: Stainless Steel
DIN Type: Ns35
Type: Socket Terminals
Material: Copper
Application: Branch Box, Junction Box
Certification: TUV, Ce, RoHS, CQC
Brand: Utl

Product Description

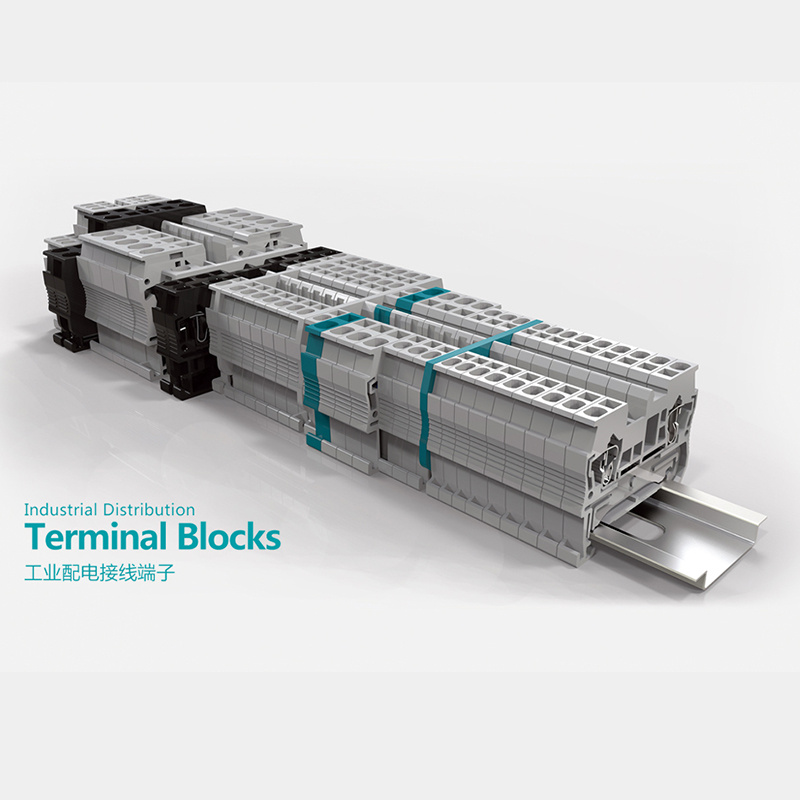

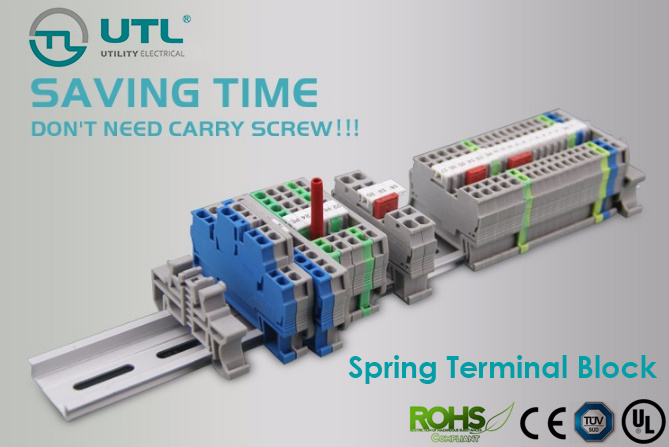

JUT3 Series Pure copper Spring-Clamping DIN rail-mounted wire Terminal Blocks

Return-pulling type spring terminal connectes wire from upside, and the wir in mouth of lead is set at the top of terminal, whose advantage is as follows: wire-crossing proove is installed adjacently to terminal row, which can make full use of space of electric cupboard, heighten wiring density, provide good angle for watching wiring position and simplify wiring operation.

Parameters:
Material
HousingPA66 Nylon (UL94-V0 level)
ContactPure Copper
SpringStainless Steel
ColorGrey / Yellow-Green (grounding type) or custom color
Electrical
Wire size1.5/2.5/4/6mm²
AWG26-8
Voltage500V-800V(IEC 60947-7-1)
Current17.5A-57A (IEC 60947-7-1)
DIN rail typeNS35
LayerSingle or Double
TypeStandard/ Grounding or Earthing/ Fused/ Testing/ Mini
CertificationUL,TUV, CE, CQC, RoHS

Trading Condition:
MOQ1 carton (20-50pcs)
Lead time7-10 working days
Warranty1 year
PaymentT/T, PayPal, Western Union
ShipmentAir-way express/ ocean-way delivery
SamplesProvided freely


For more info or recommendation, please feel free to contact me. Utility Electrical (UTL) is a professional manufacturer with 30-year experience in providing wiring solution. We supply various type premium quality wire connection terminals.

Utility Electrical Co., Ltd
www.china-utl.com
www.utl-de.com
UTILITY electrical Co., Ltd. Was established in 1990, which is specialized in

The production of the terminal industry, distributors, is that the industry is

Strong in technology, growing rapidly, very large-scale enterprises. Since its

Establishment, the community's concern and support, through the joint

Efforts of all my colleagues, more than a decade UTILITY made remarkable

Achievements, from sales to the corporate image have been recognized by

Customers and industry peers and achieved gratifying brand.

The company has consistently adhered to the "people-oriented, market-

Oriented" business philosophy, product standards, UTILITY painstaking

Research of the IEC, UL, CSA, GB, CE, CCC and other international and

Domestic standards for terminals, and in accordance with these

Standards preparing their own more stringent corporate standards, from

The development, mold design, raw material procurement, production,

Plastic parts molding products, metal parts, to finished product assembly

And quality testing, packaging, shipping, etc.

The company produced dozens of series, thousands of specifications of

Products for our customers to provide a rich selection of product protection.

The company passed the ISO9001 quality management system certification,

The vast majority of products through the UL, CSA, CCC, CCS, CE

Certification, some products through the VDE certification, all products

Comply with RO environmental requirements.
