| Prod Model: |
UL1007 |
| Wire Color: |
as Per Customer′s Requirement |
| Wire Packing: |
PP+Carton |
| Shape: |
Round Wire |
| Voltage: |
450/750V |
| Electrical Wire Type: |
Fire Flame Retardant |
| Electrical Wire Conductor: |
Copper |
| Electrcial Wire Shealth Material: |
PVC |
| Cable Standard: |
IEC60332 |
| Cable Packing: |
Plastic Reel |
| Cable Sectional Area: |
1.5mm2-16mm2 |
| Type: |
Insulated |
| Conductor Type: |
Solid |
| Application: |
Building |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
RoHS |
| Brand: |
Upward |
Product Description
Description of PVC cheap electrical wire for sale:

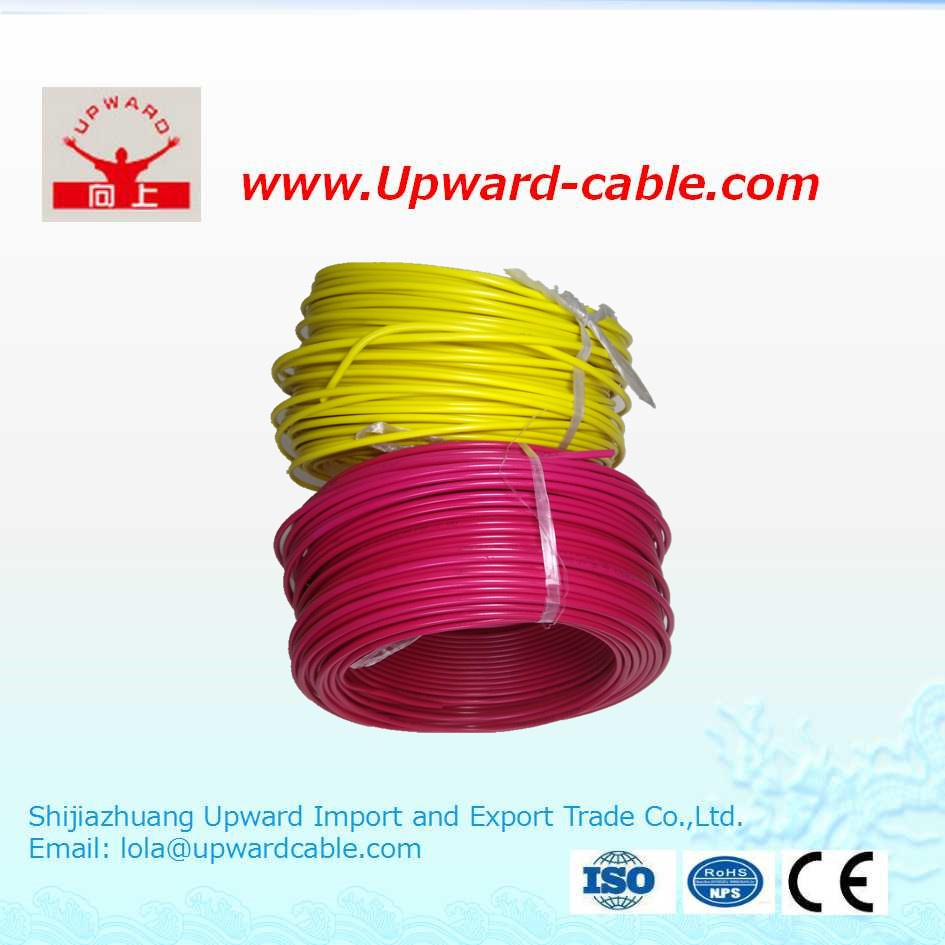

UL1007 hook-up wire
1. Rated temperature: 80°
2. Rated voltage: 300V
3. Solid or stranded, tinned or bare copper conductor 30-16AWG
4. RoHs PVC Insulation
5. Passed the UL VW-1 & CSA FT1, OS-1 is available
6. Uniform insulation thickness to ensureeasy stripping and PVC insulated flexible wiring cutting
7. Resistant to acids, oil, alkali, moisture and fungus
Application of cheap electrical wire for sale:
• Used for general purpose internal wiring of electronic and electrical equipment.
Packing of cheap electrical wire for sale:
50~100meters/roll, 1 roll/PE film, 2~4 rolls/carton boxes
Delivery time of cheap electrical wire for sale:
20 days more or less after confirm t/t payment
Advantage of our factory:
1. More than 8years of producing many kinds of electric wires and cables
2. CCC/VDE/UL/Rohs certificates
3. Conductor can be used pure copper wrie or CCA cheap conductor.
4. Small MOQ 1000 meters, good service.
5. OEM are welcome. We can also produce standard or non-standard wires and cables.
More cheap electrical wire for sale can be produced as below per your request:
UL Style & CSA Type | Conductor | Insulation Thickness | Overall Diameter | Standard Put-up | Conductor Resistance at 20°C |
AWG | Comps.n.x/φmm | mm | mm | Ft/coil | M/coil | ohm/kft |
UL1007 CSA T1(TR-64) (Stranded) | 30 | 7/0.102 | 0.38 | 1.10±0.10 | 2000 | 610 | 114.40 |
28 | 7/0.127 | 1.20±0.10 | 72.00 |
26 | 7/0.16 | 1.30±0.10 | 45.20 |
24 | 11/0.16 | 1.40±0.10 | 29.30 |
22 | 17/0.16 | 1.60±0.10 | 16.70 |
20 | 26/0.16 | 1.80±0.10 | 10.50 |
18 | 41/0.16 | 2.10±0.10 | 6.64 |
16 | 26/0.254 | 2.40±0.10 | 4.18 |
UL1007 CSA T1(TR-64) (Top-coated) | 26 | 7/0.16 | 0.38 | 1.30±0.10 | 2000 | 610 | 42.60 |
24 | 7/0.195 | 1.40±0.10 | 26.20 |
22 | 7/0.254 | 1.60±0.10 | 16.70 |
20 | 7/0.310 | 1.80±0.10 | 10.40 |
18 | 7/0.390 | 2.10±0.10 | 7.06 |
16 | 7/0.488 | 2.30±0.10 | 4.82 |
UL Style & CSA Type | Conductor | Insulation Thickness | Overall Diameter | Standard Put-up | Conductor Resistance at 20°C |
AWG | Comps.n.x/φmm | mm | mm | Ft/coil | M/coil | ohm/kft |
UL1007 CSA T1(TR-64)(Solid) | 26 | 1/0.405 | 0.38 | 1.25±0.10 | 2000 | 610 | 43.53 |
24 | 1/0.511 | 1.35±0.10 | 27.25 |
22 | 1/0.645 | 1.50±0.10 | 16.50 |
20 | 1/0.813 | 1.65±0.10 | 10.30 |
18 | 1/1.024 | 1.85±0.10 | 6.52 |
16 | 1/1.291 | 2.15±0.10 | 4.10 |
The cable can be of flame retardance, fire resistance, environment friendly or other property. OEM Available. Single Core 13-15AWG Cable Wires is suitable for use in power installations, fixed wiring or flexible connections for electrical appliances like lighting, electronic equipment, instrument and communication equipment with rated voltage 450/750V or less.
Upward Cable specializes in design and manufacture of various kinds of wires and cables. The main products are low voltage cable, high voltage cable, power cable, aluminum alloy cable, fire flame retardant cable, fire resistant cable and high temperature cable.
The workshop area is 260000 sq. M. There are 430 staff members in the factory, including 20 experienced engineers, 38 lab assistants and 372 workers. The capital asset reached USD30, 000, 000. We have various advance product lines and equipment, including 125 sets for producing use and 35 sets for testing and measurement use. Our product can perfectly meet requests of different standards, for example GB, IEC, BS and ASTM. We could offer OEM and ODM service for the special cutomer. The annual product capacity of cables and wires is more than 20, 000, 000 kilometers.
As one of the leading manufacturers of cable industry in Hebei Province, we obtained certificate of ISO9001 in 2003. All cables of colliery have gotten the certificate of safety for colliery. Our fire retardant cables are approved with the certification of proof products, and most of them met the standards of China Compulsory Certification (CCC). Moreover, we have been already licensed to enter the "Supplier of the China Government Procurement" by the government.
For years, we are keeping providing products with high quality and good service. Our cables and wires are widely used in the construction of buildings airports, power transportation, urban and rural power network reformation and other main projects. Both of products and the factory are greatly commended by customers. Also, we really highly value the overseas market. Our factory has the qualification to export independently which is awarded by Chinese government. The main products of our company have been exported to Africa, Australia, America, Italy, Singapore and other Asian countries.
