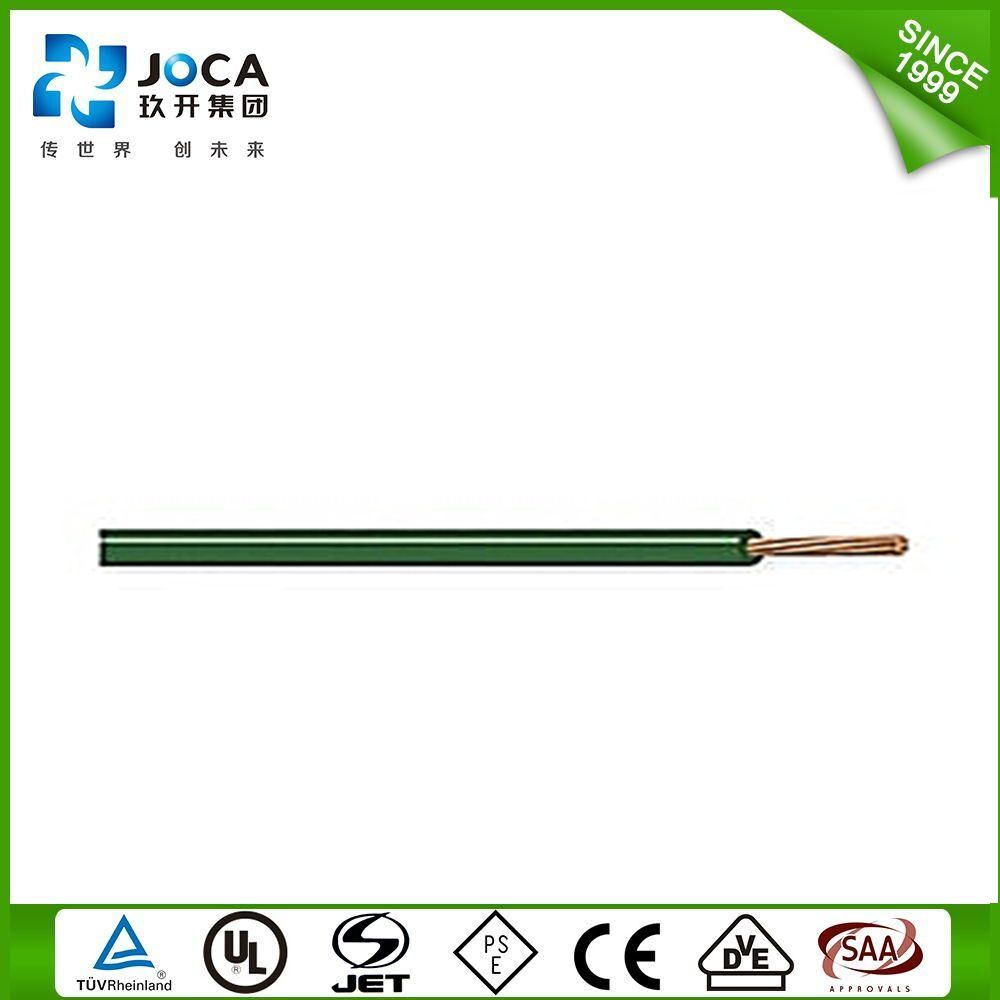

UL1015 Wire 16 AWG with PVC Insulated
| Price: |
US $ 0.15-0.25/Meter |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
UL1015 |
| Conductor: |
30-4/0AWG Solid/Stardard Bare Copper/Tinned Cooper |
| Insulation: |
PVC |
| Color: |
Any |
| Voltage Rating: |
600V |
| Test Voltage: |
2000V |
| Temperature: |
105 Degree |
| Flame Test: |
UL VW-1 & CSA FT1 & Jqa F-MARK Flame Test |
| Application Standard: |
UL 758, UL 1581 & CSA C22.2 No.210.2 |
| Sample: |
Available |
| Item Name: |
UL1015 Wire 16 AWG |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Electronic Equipment/Industry |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
TUV, SAA, PSE |
| Sheath Material: |
No Jacket |
| Brand: |
Jiukai/OEM |

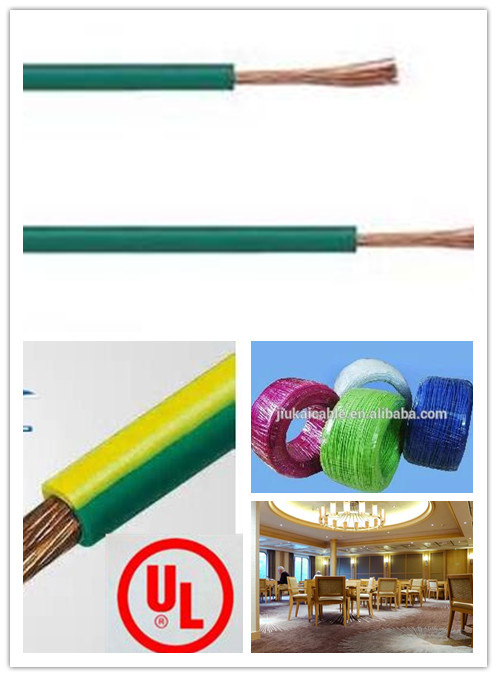

Product Description
UL1015 wire 16 AWG with PVC insulatedProduct Description & Parameters
- For general purpose internal wiring of electronic and electrical equipment, Max temperature 60C/80C when exposure to oil environment. Can be replaced by UL3386. Max 2.5KV when use in electronic equipment.
- The oil resistance type cable is available
- Uniform thickness of wire to ensure easy stripping and cutting. Oil-resistance to acid and alkali, moisture proof, mould proof, environmental etc.
| Part-N0 | Conductor | Insulation | Insulation | Conductor Resistance |
| AWG | No./mm | Thickness(mm) | Diameter(mm) | at 20C MAX(Ω/km) |
| 003102001 | 26 | 7/0.160 | 0.79 | 2.05 | 150 |
| 003102002 | 24 | 11/0.160 | 0.79 | 2.2 | 94.2 |
| 003102003 | 22 | 17/0.160 | 0.79 | 2.35 | 59.4 |
| 003102004 | 20 | 26/0.160 | 0.79 | 2.55 | 36.7 |
| 003102005 | 18 | 41/0.160 | 0.79 | 2.8 | 23.2 |
| 003102006 | 16 | 26/0.254 | 0.79 | 3.05 | 14.6 |
| 003102007 | 14 | 41/0.254 | 0.79 | 3.45 | 8.96 |
| 003102008 | 12 | 65/0.254 | 0.79 | 3.95 | 5.64 |
| 003102009 | 10 | 65/0.320 | 0.79 | 4.6 | 3.54 |
| 003102010 | 22 | 7/0.254 | 0.79 | 2.35 | 55.27 |
| 003102011 | 20 | 7/0.320 | 0.79 | 2.55 | 34.5 |
| 003102012 | 18 | 7/0.391 | 0.79 | 2.8 | 21.76 |
| 003102013 | 26 | 1/0.404 | 0.79 | 2 | 143 |
| 003102014 | 24 | 1/0.511 | 0.79 | 2.1 | 89.3 |
| 003102015 | 22 | 1/0.643 | 0.79 | 2.2 | 56.4 |
| 003102016 | 20 | 1/0.813 | 0.79 | 2.4 | 35.2 |
| 003102017 | 18 | 1/1.020 | 0.79 | 2.6 | 22.2 |
| 003102018 | 16 | 1/1.290 | 0.79 | 2.9 | 14 |
| 003102019 | 14 | 1/1.163 | 0.79 | 3.2 | 8.78 |
| 003102020 | 12 | 1/2.050 | 0.79 | 3.6 | 5.53 |
| 003102021 | 10 | 1/2.588 | 0.79 | 4.2 | 3.47 |
Packaging & Shipping
| Packaging Details: | Package:
1. Plastic/Wooden Drum: 100M/Roll,500M/Roll,1000M/Roll.
2. According to customer requiremet. |
|---|
| Delivery Detail: | 7-15 days |
|---|

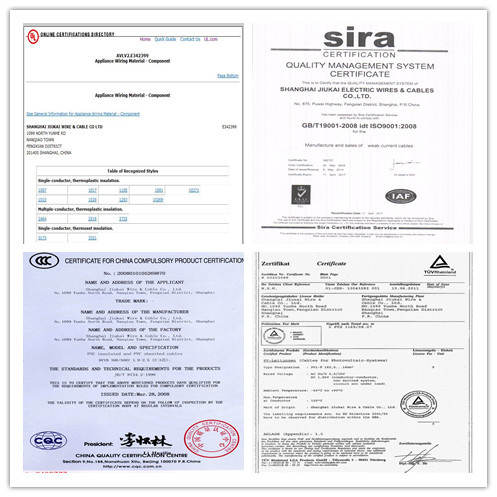

Certification
Related Produce1: Solar Cable
2: Electric Vehicle Charging Cable
3: Elevator Cable
4: Coaxial CableWhy Choose Us:We are a professional wire and cable manufacturer- Quality control: Our defective products rate is 0.01%
- Economically priced, exquisitely made
- Adequate supply capacity, punctual delivery time
- Best of sales service are provided

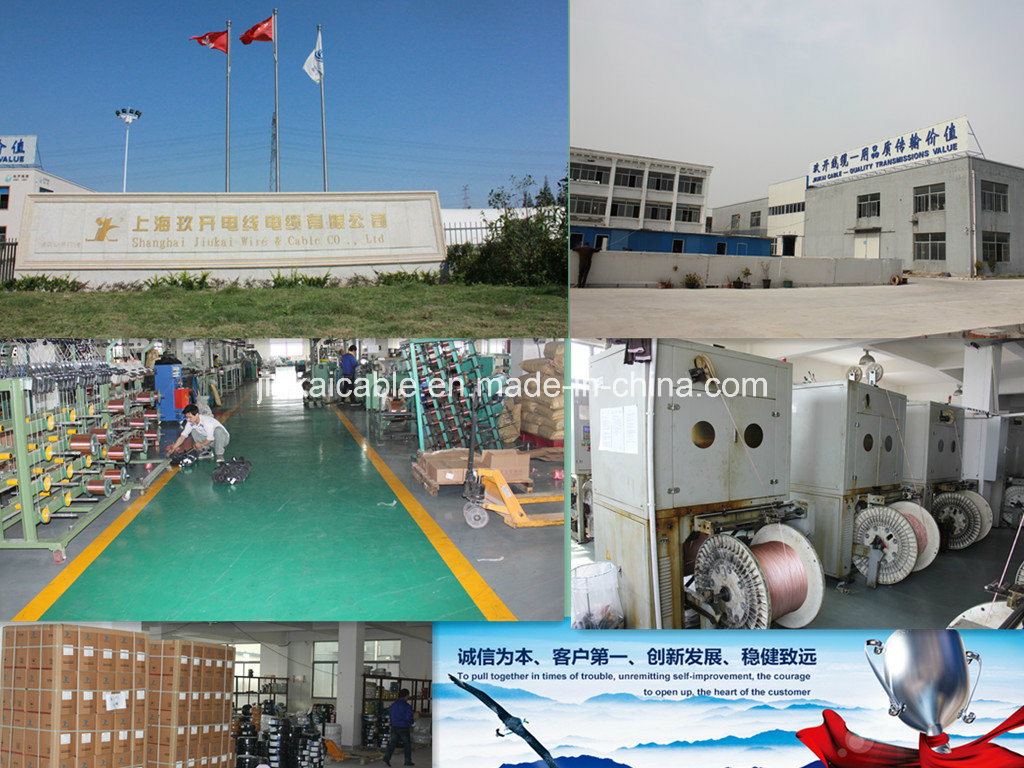

Company information
