UL2464 Pair Twist Shielding Electrical Installation and Hook up Wire
| Price: |
US $ 0.1-2/Meter |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T,Money Gram |
| Prod Model: |
UL2464 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Conductor: |
Multi-Strand Fine Twisted Copper or Tinned Copper |
| Insulation: |
Special Hardness PVC |
| Jacket: |
Mix 80c Heat Resistant and Flame Retardant PVC |
| Shielding: |
Pet+Al+Pet/Copper Braiding/Drain Wire |
| Core Wire Structure: |
Cabling After Pair Twist |
| Color: |
Black/Green/Orange/Violet |
| Voltage Rating: |
300V |
| Test Voltage: |
2000V |
| Fixed Temperature Range: |
-40c to +80c |
| Deflection Temperature Range: |
-10c to +80c |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Underground |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
VDE |
| Brand: |
Jiukai or OEM |
Product Description
UL2464 Pair Twist Shielding Electrical Installation and Hook up Wire
Product Description & Parameters - Can be used as a measurement, detection and control cable.Used in machine tool manufacturing, equipment installation, power plant, heating and air-conditioning systems, refrigeration equipment, office automation equipment and data processing system.
- Good oil resistance, abrasion resistance, chenical solvent resistant and radiation retardant.
- Short twist pitch, stable transmission characteristics
- Double shielding, resistance to electromagnetic interference
| Conductor | Insulation | Drain wire | Braiding | Jacket | Max. conductor resistance at 20ºC (Ω/km) | Compressive strength(VAC,1min) |
| Size AWG | Structure NO./mm | O.D. mm | Core No. | Thick mm | O.D. mm | Structure | Structure NO./mm | Thick mm | O.D. mm |
| 28 | 7/0.127 | 0.38 | 2 | 0.41 | 1.2 | 7/0.127 | 64/0.1 | 0.8 | 4.50 | 239 | 2000 |
| 3 | 0.41 | 1.2 | 64/0.1 | 0.8 | 4.70 |
| 4 | 0.41 | 1.2 | 80/0.1 | 0.8 | 5.00 |
| 5 | 0.41 | 1.2 | 80/0.1 | 0.8 | 5.40 |
| 6 | 0.41 | 1.2 | 80/0.1 | 0.8 | 5.70 |
| 7 | 0.41 | 1.2 | 80/0.1 | 0.8 | 5.70 |
| 8 | 0.41 | 1.2 | 96/0.1 | 0.8 | 6.10 |
| 26 | 7/0.16 | 0.48 | 2 | 0.41 | 1.3 | 7/0.16 | 64/0.1 | 0.8 | 4.70 | 150 | 2000 |
| 3 | 0.41 | 1.3 | 64/0.1 | 0.8 | 4.90 |
| 4 | 0.41 | 1.3 | 80/0.1 | 0.8 | 5.20 |
| 5 | 0.41 | 1.3 | 80/0.1 | 0.8 | 5.60 |
| 6 | 0.41 | 1.3 | 96/0.1 | 0.8 | 6.00 |
| 7 | 0.41 | 1.3 | 96/0.1 | 0.8 | 6.00 |
| 8 | 0.41 | 1.3 | 96/0.1 | 0.8 | 6.40 |
| 24 | 11/0.16 | 0.61 | 2 | 0.41 | 1.45 | 11/0.16 | 80/0.1 | 0.8 | 5.00 | 94.2 | 2000 |
| 3 | 0.41 | 1.45 | 80/0.1 | 0.8 | 5.20 |
| 4 | 0.41 | 1.45 | 80/0.1 | 0.8 | 5.60 |
| 5 | 0.41 | 1.45 | 96/0.1 | 0.8 | 6.00 |
| 6 | 0.41 | 1.45 | 96/0.1 | 0.8 | 6.40 |
| 7 | 0.41 | 1.45 | 96/0.1 | 0.8 | 6.40 |
| 8 | 0.41 | 1.45 | 112/0.1 | 0.8 | 6.80 |
| 22 | 17/0.16 | 0.76 | 2 | 0.42 | 1.6 | 17/0.16 | 80/0.1 | 0.8 | 5.30 | 59.4 | 2000 |
| 3 | 0.42 | 1.6 | 96/0.1 | 0.8 | 5.50 |
| 4 | 0.42 | 1.6 | 96/0.1 | 0.8 | 5.90 |
| 5 | 0.42 | 1.6 | 96/0.1 | 0.8 | 6.40 |
| 6 | 0.42 | 1.6 | 112/0.1 | 0.8 | 6.90 |
| 7 | 0.42 | 1.6 | 112/0.1 | 0.8 | 6.90 |
| 8 | 0.42 | 1.6 | 120/0.1 | 0.85 | 7.50 |
| 20 | 26/0.16 | 0.94 | 2 | 0.43 | 1.8 | 26/0.16 | 80/0.1 | 0.8 | 5.70 | 36.7 | 2000 |
| 3 | 0.43 | 1.8 | 96/0.1 | 0.8 | 6.00 |
| 4 | 0.43 | 1.8 | 96/0.1 | 0.8 | 6.50 |
| 5 | 0.43 | 1.8 | 112/0.1 | 0.8 | 7.00 |
| 6 | 0.43 | 1.8 | 112/0.1 | 0.85 | 7.60 |
| 7 | 0.43 | 1.8 | 112/0.1 | 0.85 | 7.60 |
| 8 | 0.43 | 1.8 | 120/0.1 | 0.88 | 8.20 |
Packaging & Shipping
| Packaging Details: | Package:
1. Plastic/Wooden Drum: 100M/Roll,500M/Roll,1000M/Roll.
2. According to customer requirement. |
|---|
| Delivery Detail: | 7-15 days |
|---|

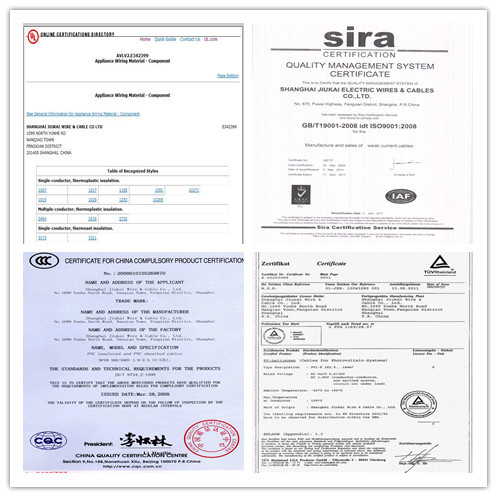

Certification

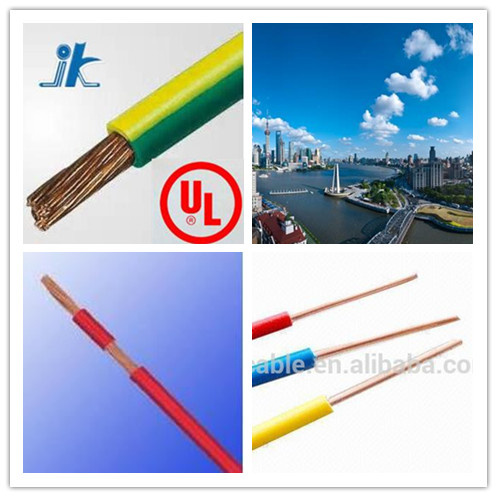

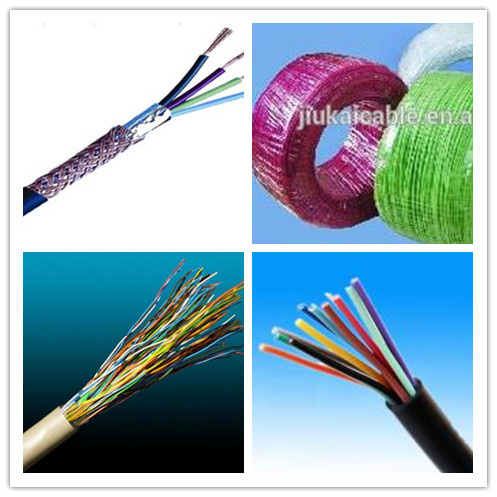

Related Produce1: Solar Cable
2: Electric Vehicle Charging Cable
3: Elevator Cable
4: Coaxial CableWhy Choose Us:We are a professional wire and cable manufacturer- Quality control: Our defective products rate is 0.01%
- Economically priced, exquisitely made
- Adequate supply capacity, punctual delivery time
- Best of sales service are provided

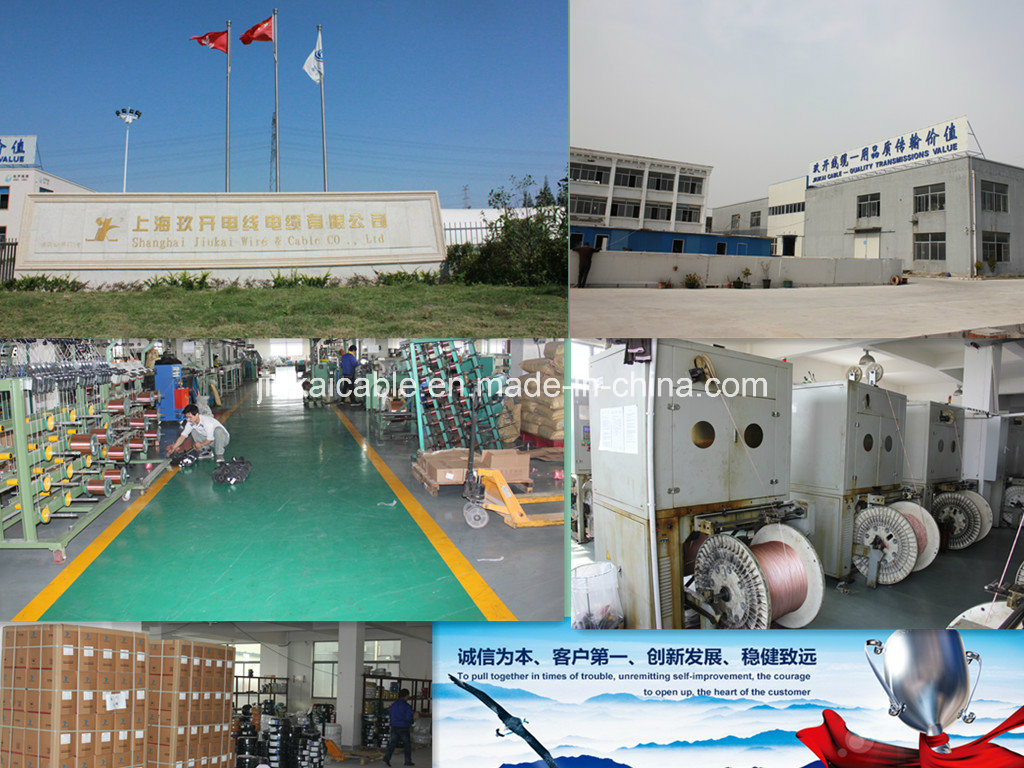

Company information
