| Product Name: |
Dlo Cable |
| Rated Voltage: |
1000V 2000V |
| Conductor: |
Tinned Copper Wore |
| Certificate: |
UL2806 |
| Size: |
14AWG, 12AWG, 1/0AWG, 2/0AWG 535mcm-1000mcm |
| Core: |
Single Core |
| Sample: |
Free |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
AC Cable |
| Certification: |
UL |
| Application: |
Diesel Locomotive Cable |
| Insulation Material: |
Epr |
| Sheath Material: |
CPE |
| Wire Core Material: |
Tinned Copper Wire |
| Model: |
Dlo Cable |
| Brand: |
Rne Da |
Product Description

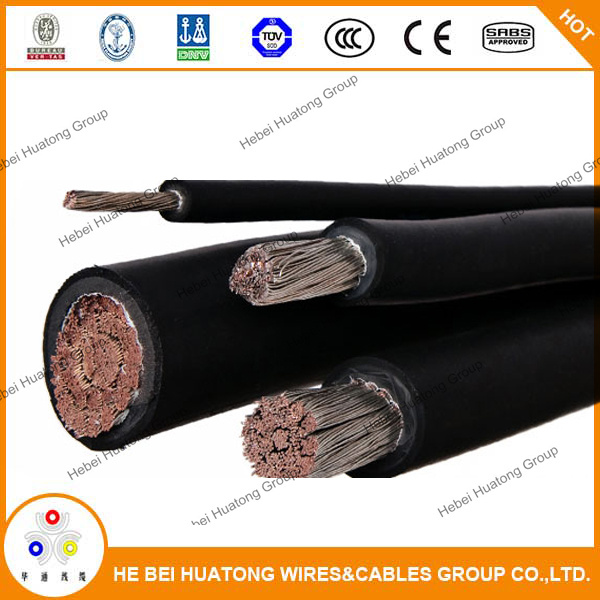

UL2806 or UL44 Epr insulated and cpe sheathed heavy duty power cable
1 SPECIFICATIONS & STANDARDS
UL 44, ICEA S-95-658/NEMA WC70, UL 1685, IEEE-1202, CSA C22.2 No. 38, ASTM B 8, ASTM B 33, AAR, RP-588 RP-586
2 CONSTRUCTION:
Nominal voltage: RHH/RHW-2 600V and 2000V, RW-90 CSA, 1kV, DLO 2kV
Conductors: Flexible strand tin coated copper conductor, B-172, ASTM B-33
Separator: Tape separator between conductor and insulation
Insulation: Ethylene-propylene rubber (EPR), UL, CSA, ICEA, AAR RP-588, 90ºC
Jacket: Black heavy duty, thermoset CPE, ICEA S-95-658 NEMA WC70, AAR RP-586
Bending radius: For fixed - minimum 4xD, for flexible - minimum 6xD, D - diameter of cable
Torsion stresses: ±100/m
3 APPROVALS:
UL: E193594 RHW-2 90C wet and dry, VW-1, Sun Res, for 1/0 and larger ST-1, FT-4, IEEE1202, for CT use
C(UL): E193954: TYPE RW90 EP; 1000V; FT1
CSA: 1101209 LL103932: 205591; RW-90 90C; FT1; FT4; -40C; OIL RES Tray Cable Sun Res 1/0 and larger MSHA: P-7268080-01-MSHA
4 SPECIFICATION:
| Conductor Size | Number of Strands | Size of Each Strand | Insulation Thickness | Jacket Thickness | Maximum Overall Diameter | Approximate Total Weight |
| AWG or kcmil | | AWG | mil | mil | in | lb/kft |
| 14 | 19 | 27 | 45 | 25 | 0.22 | 33 |
| 12 | 19 | 25 | 45 | 30 | 0.25 | 46 |
| 10 | 27 | 24 | 45 | 30 | 0.28 | 65 |
| 8 | 37 | 24 | 60 | 30 | 0.33 | 91 |
| 6 | 63 | 24 | 60 | 30 | 0.39 | 136 |
| 4 | 105 | 24 | 60 | 30 | 0.45 | 201 |
| 2 | 154 | 24 | 60 | 30 | 0.51 | 274 |
| 1 | 224 | 24 | 80 | 45 | 0.65 | 419 |
| 1/0 | 273 | 24 | 80 | 45 | 0.69 | 492 |
| 2/0 | 323 | 24 | 80 | 45 | 0.74 | 575 |
| 3/0 | 426 | 24 | 80 | 45 | 0.83 | 770 |
| 4/0 | 551 | 24 | 80 | 45 | 0.89 | 884 |
| 263 | 646 | 24 | 95 | 65 | 1.01 | 1114 |
| 313 | 779 | 24 | 95 | 65 | 1.08 | 1309 |
| 374 | 931 | 24 | 95 | 65 | 1.14 | 1528 |
| 444 | 1110 | 24 | 95 | 65 | 1.22 | 1785 |
| 535 | 1332 | 24 | 110 | 65 | 1.33 | 2140 |
| 646 | 1591 | 24 | 110 | 65 | 1.42 | 2546 |
| 778 | 1952 | 24 | 110 | 65 | 1.53 | 3017 |
| 929 | 2318 | 24 | 110 | 65 | 1.64 | 3529 |
| 1111 | 2745 | 24 | 125 | 95 | 1.85 | 4291 |

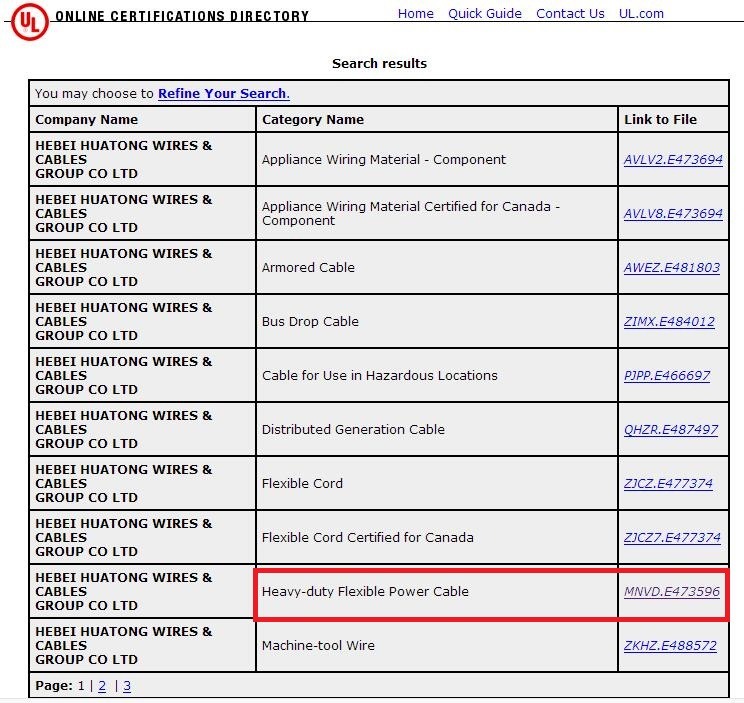

5 Certificate for DLO cable: We are one of China top rank cable&wire manufacturer.Our products meet standards of GB, IEC DIN ASTM, JIS, NF, AS/NZS CSA GOST and so on. At thte same time, we have obtained ISO9001,ISO14001,OHSAS18001, UL,CE,KEMA, TUV, Bureau Veritas, Lloyd,IEC,GL,SA,NK,KR certificates.

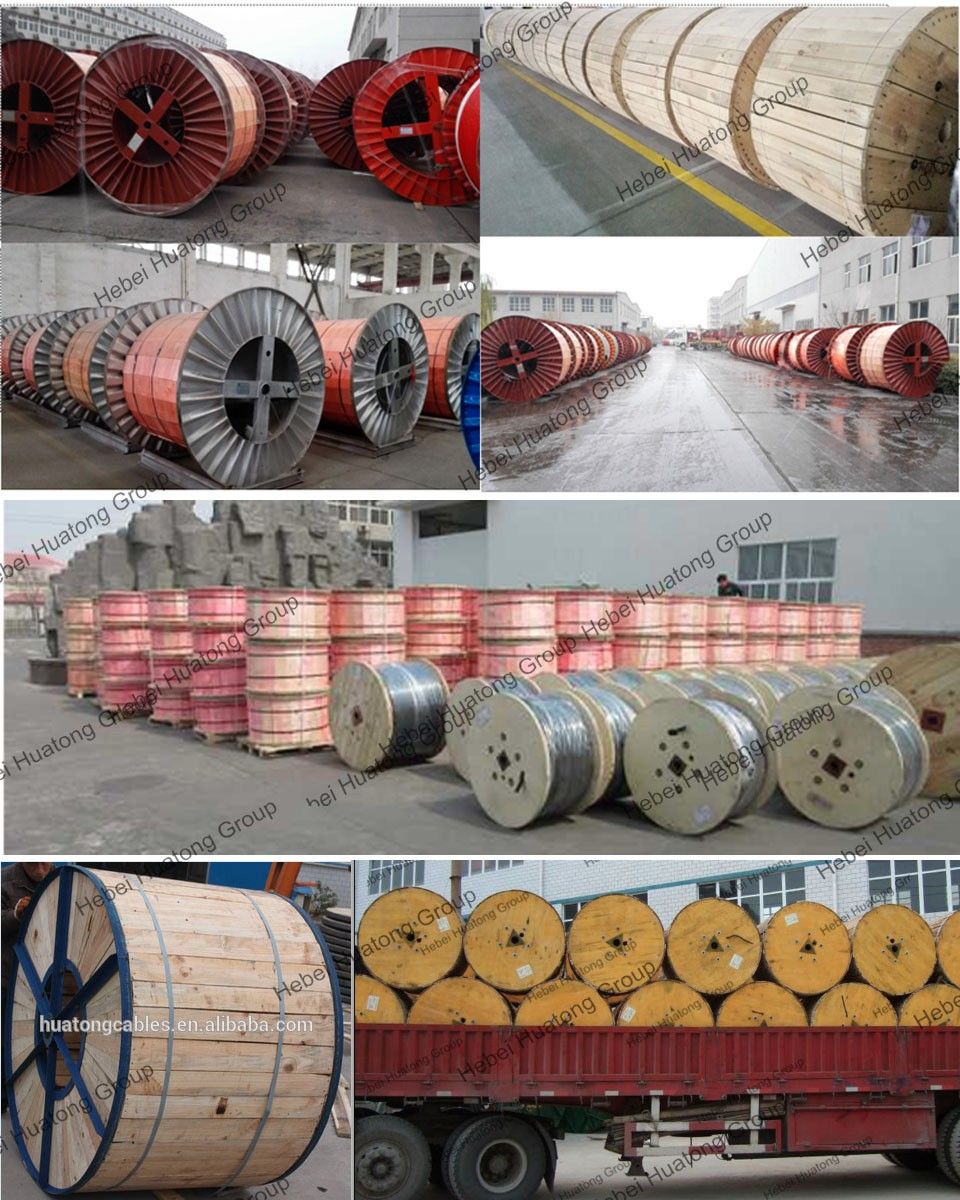

5 Packing and shipping:
6 Brief Introduction:USA is our main market. There are some big companies we cooperated many years. Also we do UL certifications for these products: RHH/RHW/RHW-2/XHH/XHHW/XHHW-2/SIS, THHN/THHW/THW/THW-2/THWN/THWN-2/TW,SER/SEU/USE/USE-2/MHF, MV-90/MV-105,TC cable,MC cable,DLO,type DG,PV wire,AC Cable,Soow,Welding cable and so on.Established in 1993, Hebei Huatong Wires and Cables Group Co., Ltd covers an area more than 220,000 square meters, owning more than 420 sets manufacturing equipment and more than 250 sets of testing equipment or apparatus. Our annual production capacity is 3 billionYuan.Now there are more than 800 employers in our company, among which more than 150 are technicians. With the continuous efforts from all the employers, Hebei Huatong Wires and Cables Group Co., Ltd has realized great development to become a modern enterprise and one of the comprehensive, largescale enterprises in domestic wire and cable industry. Our products are widely used in the field of electric power, coal, metallurgy, petrochemical industry, railway, national defense, construction, aviation and other national key projects. Our products have extensive influence and good reputation in both domestic and worldwide market, such as the United States, Holland, Italy, Russia, Britain, Australia, New Zealand, Ethiopia, Ghana, Algeria,Congo, Middle East and Southeast Asia and so on.
7 Our Serivce:
1.22 years production experience and 13 years export experience .
2.Products certification :UL,CE,BV,TUV,KEMA,PSB,SABS,ABS,NK,LR,KR,GL etc
3. OEM service available based on official & legal authorization.
4.Strict quality control system.
5.Rapid delivery and feedback Faster lead time than our competitors.
6.Excellent quality with reasonable price.
7. Strong technical support (technical data, drawing, etc.)
8.Professional teamwork service for you actively.
9.Stock available, Free sample is available.

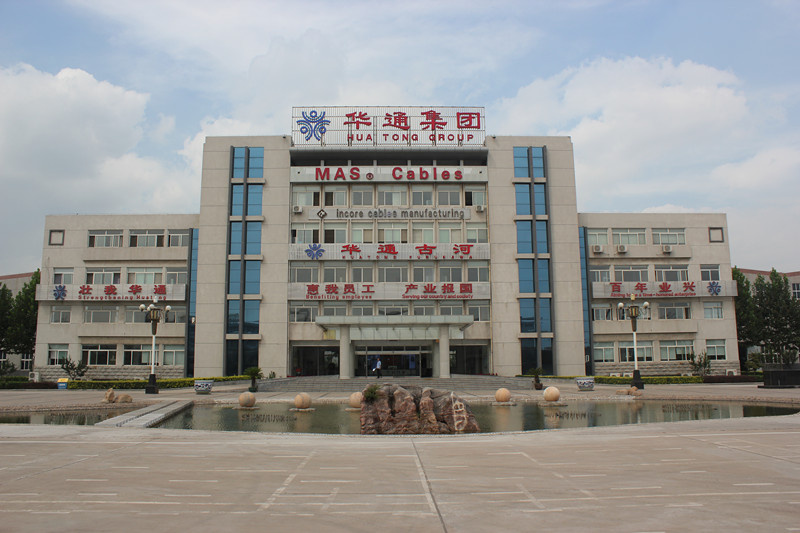

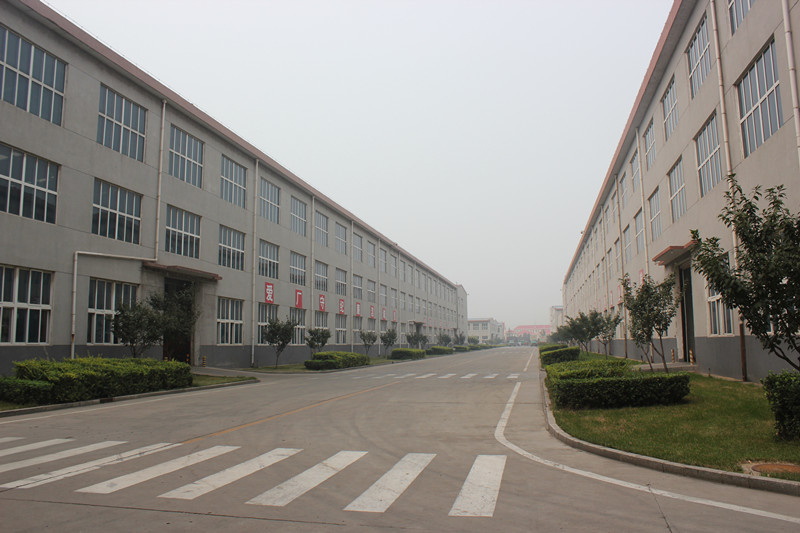

Established in 1993, Hebei Huatong Wires and Cables Group Co., Ltd covers an area more than 220, 000 square meters, owning more than 420 sets manufacturing equipment and more than 250 sets of testing equipment or apparatus. Our annual production capacity is 3 billion Chinese Yuan. Now there are more than 800 employers in our company, among which more than 150 are technicians. With the continuous efforts from all the employers, Hebei Huatong Wires and Cables Group Co., Ltd has realized great development to become a modern enterprise and one of the comprehensive, large-scale enterprises in domestic wire and cable industry. Our products are widely used in the field of electric power, coal, metallurgy, petrochemical industry, railway, national defense, construction, aviation and other national key projects. We are JV with Furukawa(Japanese company) for rubber serial cable (minding cables, welding cables. Submersible oil pump cables, . )and also JV with Riken(Japanese company) for elevator cables. Our products have extensive influence and good reputation in both domestic and worldwide market, such as the United States, Holland, Italy, Russia, Britain, Australia, New Zealand, Ethiopia, Ghana, Algeria, South Africa, Congo, Middle East and Southeast Asia countries and so on.
Products: Power Cable, Rubber Cable, UL standard building wire cable
Certificates:
Certificate of UL. CE, KEMA, TUV, Bureau Veritas, Lloyd, IEC, GL, SA, NK, KR and "National Industrial Production License", "Certificate of Recommended Enterprises and Products for National Grid", "Adopting International Standard Certificate", and "High-Tech Enterprise Certificate", "Certificate of High Quality Products", "Certificate of Scientific and Technological Achievements", "Qualified Supplier Certificate", "China Classification Society Certificate of Works Approval", "Det Norske Veritas Type Approval Certificate", "Railway Product Certificate", "Safety Certificate of Approval for Mining Products", "National Mandatory Product Certification", "Certificate for China Compulsary Products Certification" and "Practical New-Type Patent Certificate
