| Prod Model: |
UL3321 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Conductor: |
30-3AWG Single or Standed Tinned or Bare Copper |
| Insulation: |
Heat-Resistant XLPE |
| Color: |
Any |
| Voltage Rating: |
600V |
| Test Voltage: |
2000V |
| Rated Temperature: |
150c |
| Combustion: |
Pass UL VW-1 & CSA FT1 and Jqa F |
| Name: |
UL3321 Wire |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Underground |
| Conductor Material: |
Copper |
| Insulation Material: |
XLPE |
| Certification: |
VDE |
| Brand: |
Jiukai or OEM |
Product Description

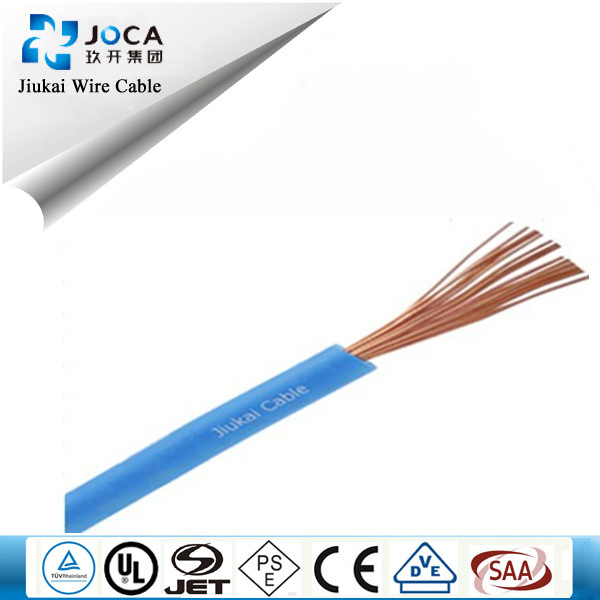

UL3321 Wire
Product Description & Parameters
For internal wiring of electronic, electrical equipment.
Using the standard thickness, easy peeling, easy cutting.
Product structure
| Conductor | Insulation | Max. conductor resistance at 20ºC (Ω/km) | Compressive strength(VAC,1min) |
| Size (AWG) | Structure(NO./mm) | O.D. (mm) | Thick (mm) | O.D. (mm) |
| 30 | 7/0.1 | 0.3 | 0.76 | 1.9 | 376.93 | 2000 |
| 28 | 7/0.127 | 0.38 | 0.76 | 2 | 237.25 | 2000 |
| 26 | 7/0.16 | 0.48 | 0.76 | 2.1 | 148.94 | 2000 |
| 24 | 11/0.16 | 0.61 | 0.76 | 2.2 | 93.25 | 2000 |
| 22 | 17/0.16 | 0.76 | 0.76 | 2.35 | 55 | 2000 |
| 20 | 26/0.16 | 0.94 | 0.76 | 2.55 | 34.6 | 2000 |
| 18 | 16/0.254 | 1.17 | 0.76 | 2.8 | 21.8 | 2000 |
| 16 | 26/0.254 | 1.49 | 0.76 | 3.15 | 13.7 | 2000 |
| 14 | 41/0.254 | 1.88 | 0.76 | 3.55 | 8.62 | 2000 |
| 12 | 65/0.254 | 2.36 | 0.76 | 4.05 | 5.43 | 2000 |
| 10 | 105/0.254 | 3.1 | 0.76 | 4.9 | 3.41 | 2000 |
| 8 | 168/0.254 | 4.3 | 1.15 | 6.7 | 2.23 | 2000 |
| 6 | 266/0.254 | 5.35 | 1.15 | 7.8 | 1.403 | 2000 |
| 4 | 420/0.254 | 6.7 | 1.15 | 9.1 | 0.882 | 2000 |
| 3 | 532/0.254 | 7.6 | 1.53 | 10.7 | 0.5548 | 2000 |
Packaging & Shipping
Packaging Details:Delivery Detail:
Package:
1. Plastic/Wooden Drum: 100M/Roll,500M/Roll,1000M/Roll.
2. According to customer requirement. |
| 7-15 days |
Certification
We passed UL, CCC, CE, VED etc. UL-E342399
I will give you copy of certification if you need more information.
