UL44 Building Wire with Copper Conductor XLPE Insulation Xhhw Cable
Price: |
US $ 1/Piece |
Min Order: |
2000/Piece |
Pay Type: |
L/C,T/T,D/P,Western Union,Money Gram |
Prod Model: |
XHHW Cable |
Type: |
Insulated |
Conductor Type: |
Stranded |
Application: |
Overhead |
Insulation Material: |
XLPE |
Certification: |
RoHS |
Conductor Material: |
Copper or Aluminum Conductor |
Brand: |
Rneda |
Product Description

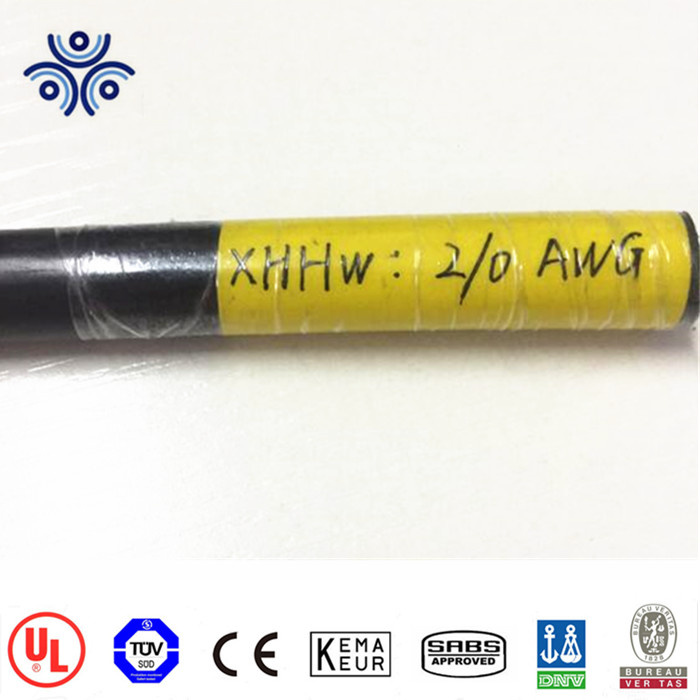

UL44 Building Wire with Copper Conductor XLPE Insulation XHHW Cable

Product Description
The XHHW cable wire is 600 volt. copper conductor XLPE insulation moisture /heat /low-temp /sunlight resistant, flame retardant thermoset
insulated wire and cable.
Applications
XHHW building wire is intended for general purpose applications utilized in conduit and tubing underground in conduit, or other recognized
raceways for services, feeders, and branch-circuit wiring as specified in the USA National Electrical Code (NEC). XHHW CU is permitted for
600-volt applications and can be used in wet locations at temperatures not to exceed 75ºC or dry locations at temperatures not to exceed90ºC.
It's suitable for applications requiring low-leaking circuits and a dielectric constant of 3.5 or less. With the special insulation, the wire requires
no lubrication for installation.
Standards
XHHW complies with the following:
• ASTM B3, B8
• UL 44
• USA National Electrical Code, NFPA 70, 2014 Edition
Construction

Technical Parameter List

Packaging & Shipping
Cable will be packed and shipped on non-returnable wooden/wooden & iron/steel cable drum or recycled wooden box.
Our Services
We provide 24- hour service, you can contact +86-185 6701 6066 or by E-mail.
If you have any questions please feel free to contact us for more information and price.
Company Information
Hebei huatong wires & cables Group Co.,ltd.It was established in 1993, we are JV with Furukawa (Japanese company) for rubber serious
cables and JV with Riken(Japanese company) for elevator cables. Besides these,our submersible oil pump cable and shipboard cable are very
influential in domestic, and, the traditional cables are also produced such as PVC powercables, XLPE power cables, ABC cables, wires, control
cables, screened cables,communication cables, conductors.We areOEM for many USA, Europen, Australia cable company,70% of our products
are exported, most customers are from developed countries. We got ISO,UL, TUV,KEMA,CE and many other certifications.

Certificate
Now we got UL, TUV, CE, BV, KEMA, SABS, PSB products certifications and ISO9001, ISO14001, OHSAS18001 system certifications.
These UL certifications including AC, XHHW, THW/THHN, SER/SEU/MHF/UD, MV90/MV105,TC/TC-ER/, PV, MC,WELDING CABLES, SOOW/SJOOW,
DLO, MINING CABLES....
FAQQ1: What is your payment term?A1: Our standard payment term is 30% for advanced payment before production, 70% before dispatch. However, the terms can be negotiable
as per different orders.
Q2: What is the lead time?A2: The lead time can be 7 - 30 days according to actual order quantity.
Q3: What is the package of the cable?A3: The package is steel & wooden drum or recycled wooden box. We can adopt other methods according to customer's requirements.
Q4: How to choose cable if the type is undefined?A4: Please provide the application, we will help you find the right type.UL Cable List and Contact Information

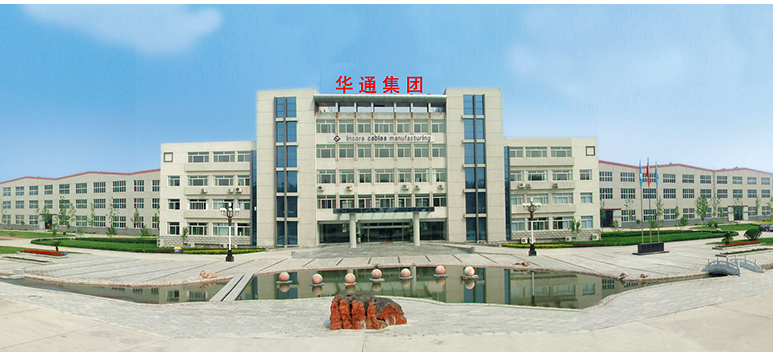

Established in 1993, Hebei Huatong Wires and Cables Group Co., Ltd covers an area more than 220, 000 square meters, owning more than 420 sets manufacturing equipment and more than 250 sets of testing equipment or apparatus. Our annual production capacity is 3 billion Chinese Yuan. Now there are more than 800 employers in our company, among which more than 150 are technicians. With the continuous efforts from all the employers, Hebei Huatong Wires and Cables Group Co., Ltd has realized great development to become a modern enterprise and one of the comprehensive, large-scale enterprises in domestic wire and cable industry. Our products are widely used in the field of electric power, coal, metallurgy, petrochemical industry, railway, national defense, construction, aviation and other national key projects. We are JV with Furukawa(Japanese company) for rubber serial cable (minding cables, welding cables. Submersible oil pump cables, . )and also JV with Riken(Japanese company) for elevator cables. Our products have extensive influence and good reputation in both domestic and worldwide market, such as the United States, Holland, Italy, Russia, Britain, Australia, New Zealand, Ethiopia, Ghana, Algeria, South Africa, Congo, Middle East and Southeast Asia countries and so on.
