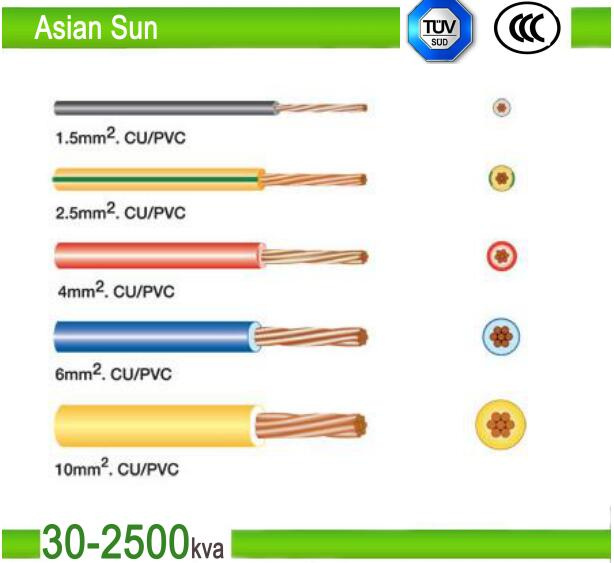

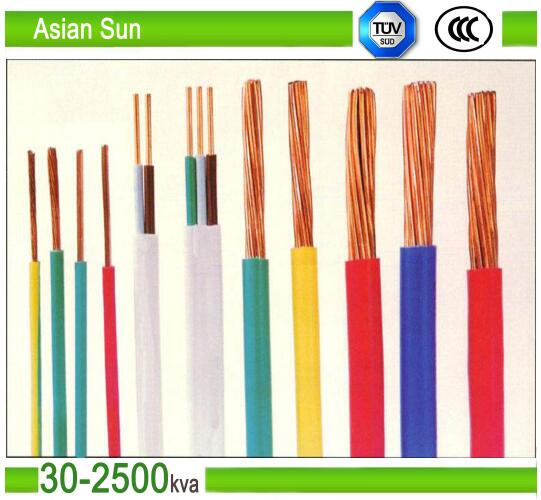

UL63 Halogen Free H05V-K PVC Electrical Cable
| Price: |
US $ 0.072-0.88/Meter |
| Min Order: |
3000/Meter |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
H05V-K 1.5, 2.5, 4, 6, 10 |
| Size: |
0.5-185sqmm |
| Color: |
Black, Green, Red, Blue, Yellow or as Required |
| Armoured: |
Available |
| Insulation: |
PVC |
| Shape: |
Round |
| Standards: |
IEC60227 |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Fixed Wire |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
RoHS |
| Range Of Application: |
Building Wire |
| Brand: |
Da Yuan |
Product Description
UL63 Halogen Free H05V-K PVC Electrical CablCompany InformationLuoyang Asian Sun Industrial Group Co., Ltd. was established in 2006 with RMB 50 million registerde capital in Luoyang, Henan Province, China. Now our total assets is RMB 300 million. The company covers an area 61,081 square meters, and has 4 affiliates with more than 300 employees including 15 engineers and technicians.

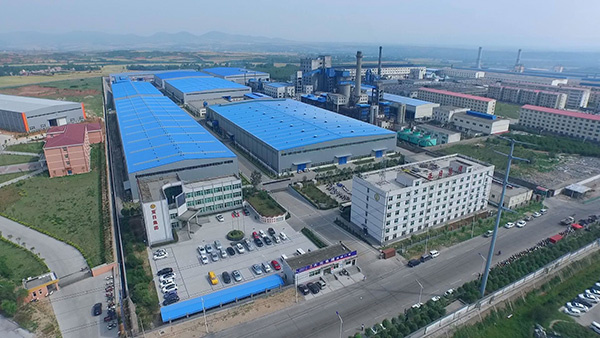

Aerial View of Our Factory Products DescriptionWe manufacture electrical wires and cables for house wiring. They have passed China Compulsory Certification and IEC 60227 Certificate. And a variety of international standards are available, for example, BS, DIN, ASTM, JIS, AS, etc. We provide a high standard of quality control and manufacturing with our main markets all over the world. Please feel free to send us inquiries for latest prices. We will respond to you immediately.
1) Conductor: Copper; Solid, Stranded & Flexible; 1~5 Cores2) Insulation: Polyvinyl Chloride (PVC), Flame-Retardant or Halogen Free Polyolefin, XLPE, etc.3) Sheath: Non-Sheathed or PVC, PE, etc.4) Features: Solid, Flexible, Round, Flat, Flame-Retardant, Fire-Resistant, Heat-Resistant, Low Smoke and Fume, Low Smoke Zero Halogen, High Temperature Resistant, etc.5) Rated Voltage: 450/750V or 300/500V6) Work Temperature: 70°C / 90°C / 105°C / 120°C / 150°C / 200°C / 250°C 7) Colors: Red, Blue, Brown, White, Black, Yellow, Two Colors, etc. Properties of PVC Cable1.The long-time permissible working temperature of cable conductive core is not more than 70 degrees.2.During short circuit (max permanent time is not more than 5 seconds), the max temperature of cable conductor is not more than 165°C.3.The difference level of laying cable is not restricted.When laying the cable,ambient temperature is not lower than 0°C.4.They have good chemical stability,and properties of acid resistance,alkali resistance,salt resistance,oil resistance,solvent resistance and flame resistance. | Model | Name |
| RV | Copper Core PVC Insulation Flexible Wire |
| RVB | Copper Core PVC Insulation Flat Flexible Wire |
| RVS | Copper Core PVC Insulation Twisted Flexible Wire |
| RVV | Copper Core PVC Insulation Sheath Round Flexible Wire |
| RVVB | Copper Core PVC Insulation Sheath Flat Flexible Wire |
| RV-90 | Copper Core Heat-resistak Losc PVC Flexible Wire |
| Standard:JB/T8734.2-2012 | BVR Products Technical Data |
| Conductor Nominal Cross-sectional Area mm2 | Technical Size mm |
| Conductor | Insulation |
| No./Wire Dia. | OD | Thickness | Calculated Dia. | Max Dia. |
| | | | | | |
| 0.5 | 7/0.3 | 1 | 0.7 | 2.4 | 2.6 |
| 0.75 | 7/0.37 | 1.11 | 0.7 | 2.5 | 2.7 |
| 1.0 | 7/0.43 | 1.29 | 0.7 | 2.7 | 2.9 |
| 1.5 | 7/0.52 | 1.56 | 0.7 | 3.0 | 3.2 |
| 2.5 | 19/0.41 | 2.05 | 0.8 | 3.7 | 3.9 |
| 4 | 19/0.52 | 2.6 | 0.8 | 4.2 | 4.4 |
| 6 | 19/0.64 | 3.2 | 0.8 | 4.8 | 5.0 |
| 10 | 49/0.52 | 4.68 | 1.0 | 6.7 | 6.9 |
| 16 | 49/0.64 | 5.76 | 1.0 | 7.8 | 8.0 |
| 25 | 98/0.58 | 7.68 | 1.2 | 10.1 | 10.4 |
| 35 | 133/0.58 | 8.7 | 1.2 | 11.1 | 11.4 |
| 50 | 133/0.68 | 10.2 | 1.4 | 13.0 | 13.3 |
| 70 | 189/0.68 | 12.56 | 1.4 | 15.4 | 15.7 |
| 95 | 259/0.68 | 14.28 | 1.6 | 17.5 | 17.8 |
| 120 | 336/0.68 | 16.64 | 1.6 | 19.8 | 20.1 |
| 150 | 336/0.74 | 18.1 | 1.8 | 21.7 | 22.0 |
| 185 | 427/0.74 | 19.98 | 2.0 | 24.0 | 24.3 |
IEEE Exhibition

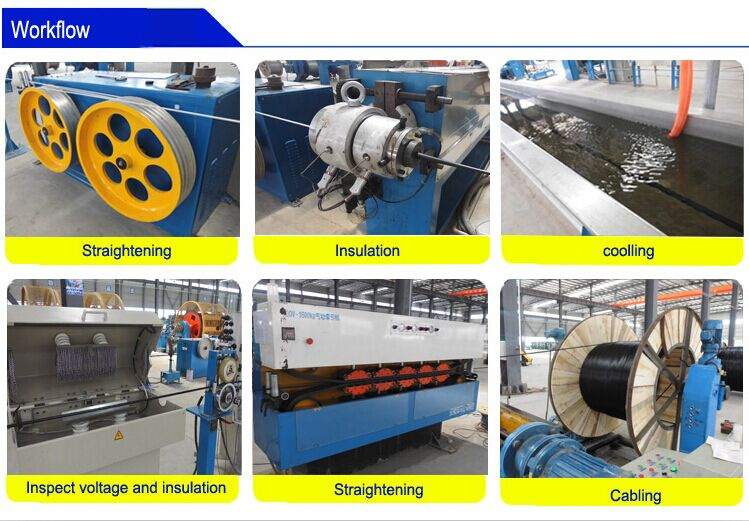

Test MachineWe have our independent test house and professional detection personnel and machines for our products. We can make sure of the good quality of our products.

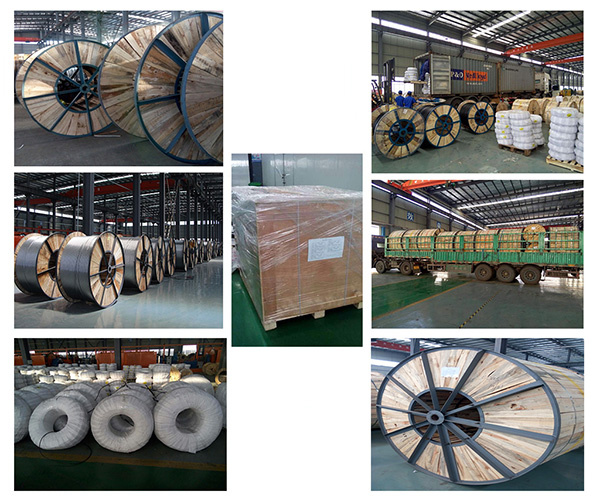

Packaging & Shipping
It will be package according to its outside diameter and weight by drum or wooden reel. 1.We use the fumigated &treated timber wooden box to package cables,2. Wooden package optional: Size: 0.5*0.5*0.5m or as you required. 0.6*0.6*0.6m 0.7*0.7*0.7m 1.1*1.1*0.8m 1.8*1.8*1.1m 2.2*2.2*1.8m 3. Wooden plate sealed.4. Suitable meters according to your size.5. 72 pcs of 0.7m wooden reel can be put in one 20FCL. 28 pcs of 1.1m wooden reel can be put in one 20FCL. 6 pcs of 1.8m wooden reel can be put in one 20FCL. FAQ- Q:Are you a factory or trading company?
A:We are one of biggest factories in China and specialized in producing various cable: solar cable, overhead cable, electrical cable, control cable and so on. 2. Q:Where is your factory located?How can I visit here? A:Our factory is located in Luoyang City, Henan province, china, You can fly to Luoyang airport in Luoyang directly. All our clients, from mainland or abroad, are warmly welcome to visit us! 3.Q:How can I get some samples? Just tell me, the samples are free for you! 4.Q:How does your factory do regarding quality control? A:"Quality is priority."We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained TUV, CCC, ISO authentication. ContactName: Marcia Xu
Started in year 2006, Luoyang Asian Sun Group - formerly known as 'Luoyang YaRi'- was a small factory with only tens of employees back then, but after years of growing and developing, now we are a group company with 5 branch companies, with more than 800 employees including 100 engineers and technicians, and with registered capital 410 million RMB. Our factories are located in county Yichuan, Luoyang, Henan, China, and our headquarters are in the beautiful historic city Luoyang. Totally we have 20, 000 square meters area for production and management, with fixed assets valuing 960 million RMB.
Our main products are power transformer, ABC cable, ACSR, AAC, Aluminum rod, PV bracket, screw pile, power cable, and aluminum bar etc. We also carry on projects of engineering, electrical installation and other general contracting. Our research, production and management are strictly in accordance with the ISO9001 quality system, ISO14001 environment system, OHSAS18001 occupational health and safety management system, the EU TUV, etc. The quality assurance is carried out in every aspect of design, material selecting, production, testing, inspection and management.
At home, we have reached strategic cooperation agreements with State Grid Corporation of China, GD Solar Co., Ltd., Huaneng China, Datang Corporation, China Power Investment Energy Conservation and Environmental Protection Group, and other large state-owned enterprises. At abroad, our products have been exporting to Russia, Middle East Asia, European Union, South America, Africa and other parts of the world.
Our continuing growth and success have been the direct result of the excellent word-of-mouth we consistently earn from both our new and established clients. Thinking of others' benefit and win-win cooperation is the core idea of our company culture. Perfection is not easy to achieve, but we chase it and we can catch excellence. Our excellence is the glamour which brings the good quality and service into every clients.
We guaranteed products at a competitive price and high quality. At present, our products have a very good sale in domestic and overseas market. We wish to cooperate with you to create a bright future and mutual benefit. Much appreciation for your prompt attention in advance, we are eager to look forward to hearing from you soon.
