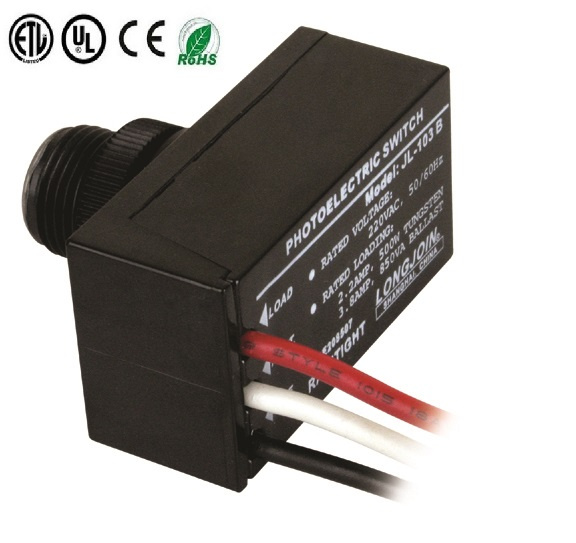

UL773A 120-277VAC Photoelectric Switch 2W Lighting Button Control

Name: UL773A 120-277VAC Photoelectric Switch 2W Lighting Button Control
Brand: all-electronics-online.com
SKU: 815849255
Availability: InStock
Rating: 4.6 (69 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	103c

Product Description

Basic Specification:

Rated Voltage	120-277VAC
Rated Frequency	50/60Hz
Rated Loading	500W Tungsten,850VA Ballast,5A E-Ballast
Ambient Temperature	-40ºC ~ +70ºC
Voltage	500V

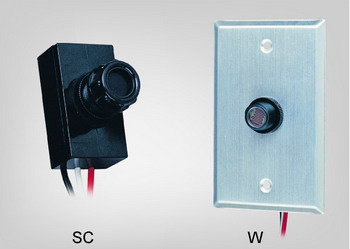

Product Pictures:

The photoelectric switch JL-403 is applicable to control the street lighting, passage lighting and
doorway lighting automatically in accordance with the ambient lighting level.
This product is designed with electronic circuits. Its quicker response with time delay of 3-10
seconds offers easy-to-test feature. Especially, model JL-403C provides a wide voltage range for
customer applications under almost power supplies.
Further, a preset 3-10 seconds time-delay might avoid mis-operation due to spotlight or lightning
during the night time
This product has been listed by UL Inc and is comply with the Standard for Non-industrial
Photoelectric Switches for Lighting Control UL773A.

Model	JL-403C
Rated Voltage	120-277VAC
Rated Frequency	50/60Hz
Rated Loading	500W Tungsten,850VA Ballast,5A E-Ballast
Power Consumption	2W
Operate Level	10~20Lx On 30~80Lx Off
Ambient Temperature	-40ºC ~ +70ºC
Related Humidity	99%RH
Overall Dimensions	54.5(L) x 29(W) x 44(H)mm
Leads Length	180mm or Customer request (AWG#18)

Installation:
Disconnect power, remove junction box cover, place the SWITCH in knockout hole and fasten with locknut.

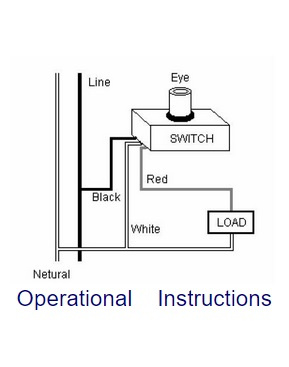

Wire according to the diagram in right hand.
Do not install the switch with the Photocell facing artificial or reflected light.
This will cause the unit to cycle on and off at night.
